Device support SL2GTK5070
Item no. 6132178 | EAN 4012196732869
- Product description
-
Product description
Device support with pre-terminated double protective contact socket with increased contact protection for the skirting trunking in the trunking widths 50 and 70 mm.
-
- Technical data
-
Technical data

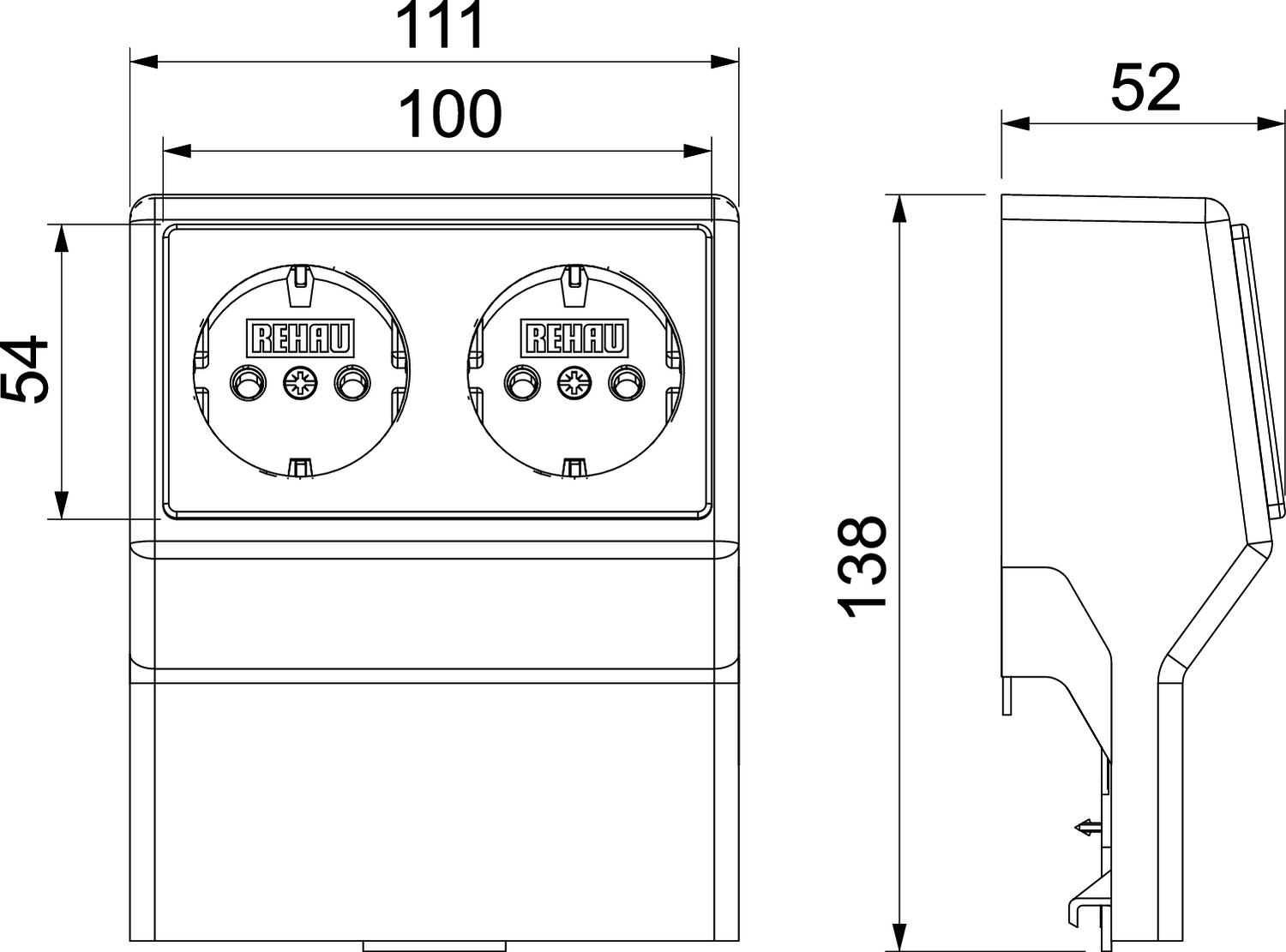

Accessory mounting type Pre-equipped Colour Cream; RAL 9001 Decoration Without Dimension 50x111x138 Equipment 2x protective contact socket Material Polyvinylchloride Number of units 1 Permitted temperature range, max. 60 °C Permitted temperature range, min. -5 °C Protection rating IP40 Protection rating IK code IK06 Dimensions
Height 138 mm Length 52 mm Width 111 mm - All types
- Downloads
-
Data sheet SL2GTK5070 cws / 6132178 , 0.24MB , pdfDeclaration of conformity SL2GTK5070 cws / 6132178 , 0.13MB , pdfLabel approval VDE symbol approval, SL skirting trunking , 0.27MB , pdfNo invitation to tender text is available for this product.
