Diagonal clamp for flat conductors and round conductors A2

Item no. 5313023 | EAN 4012195740476

5313023 / 250 A-VA
Rd 6-22/max. FL50 mm
Product description

Product description

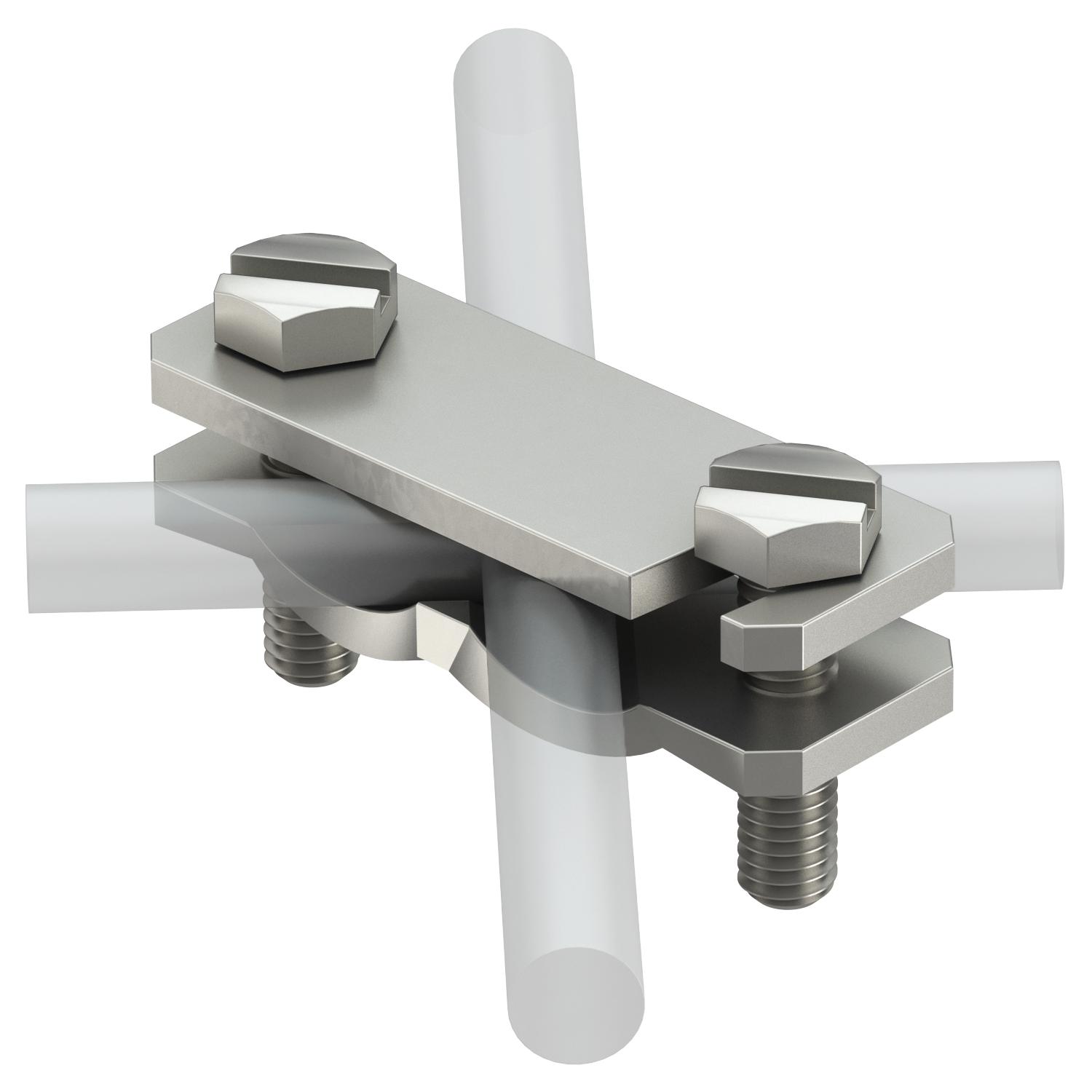

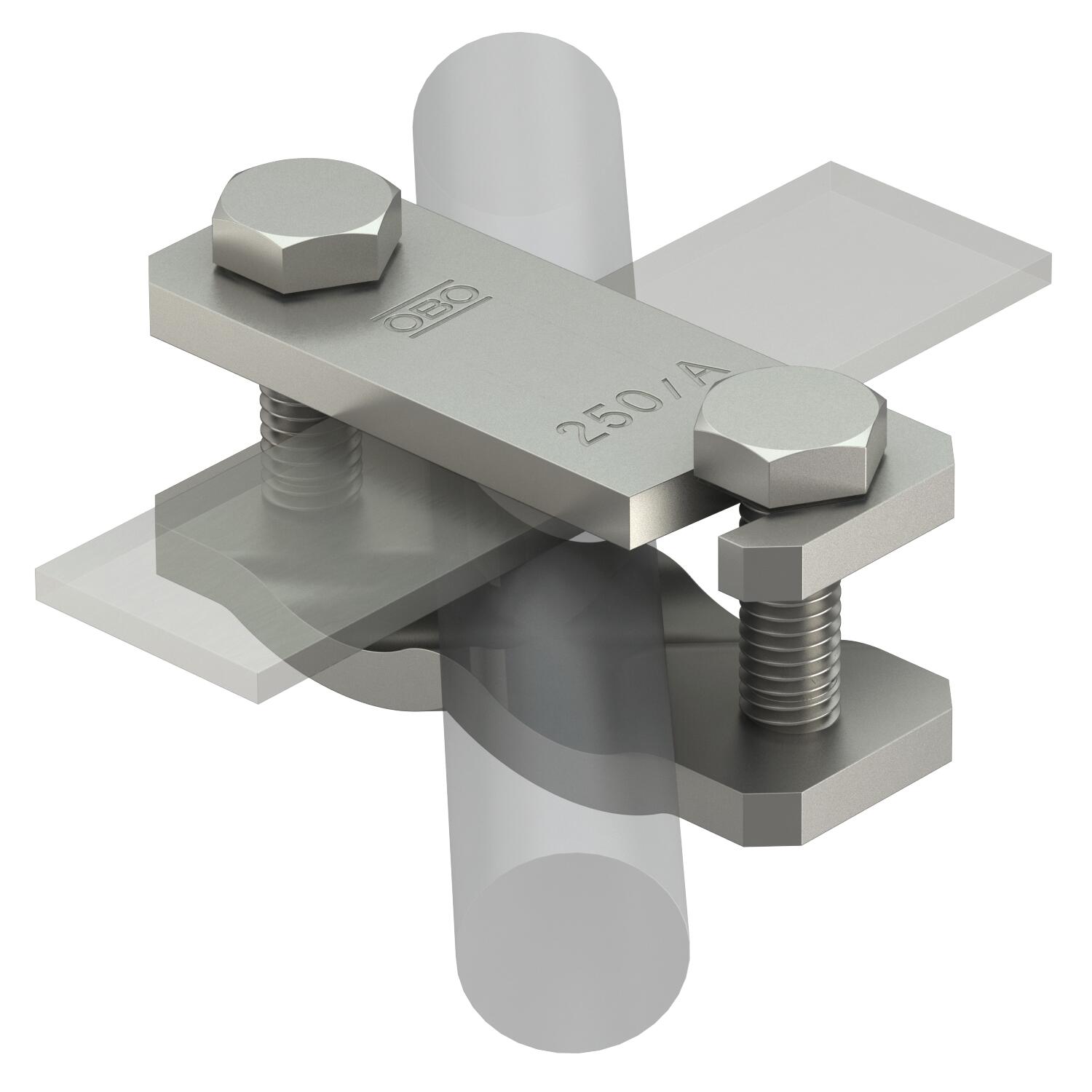

• For reinforced steels Ø 6–22 mm and flat conductors 50 x 4
• Mounted with bolts M10 x 40
• Simple mounting through open slot
  • Lightning current-tested
Technical data

Technical data

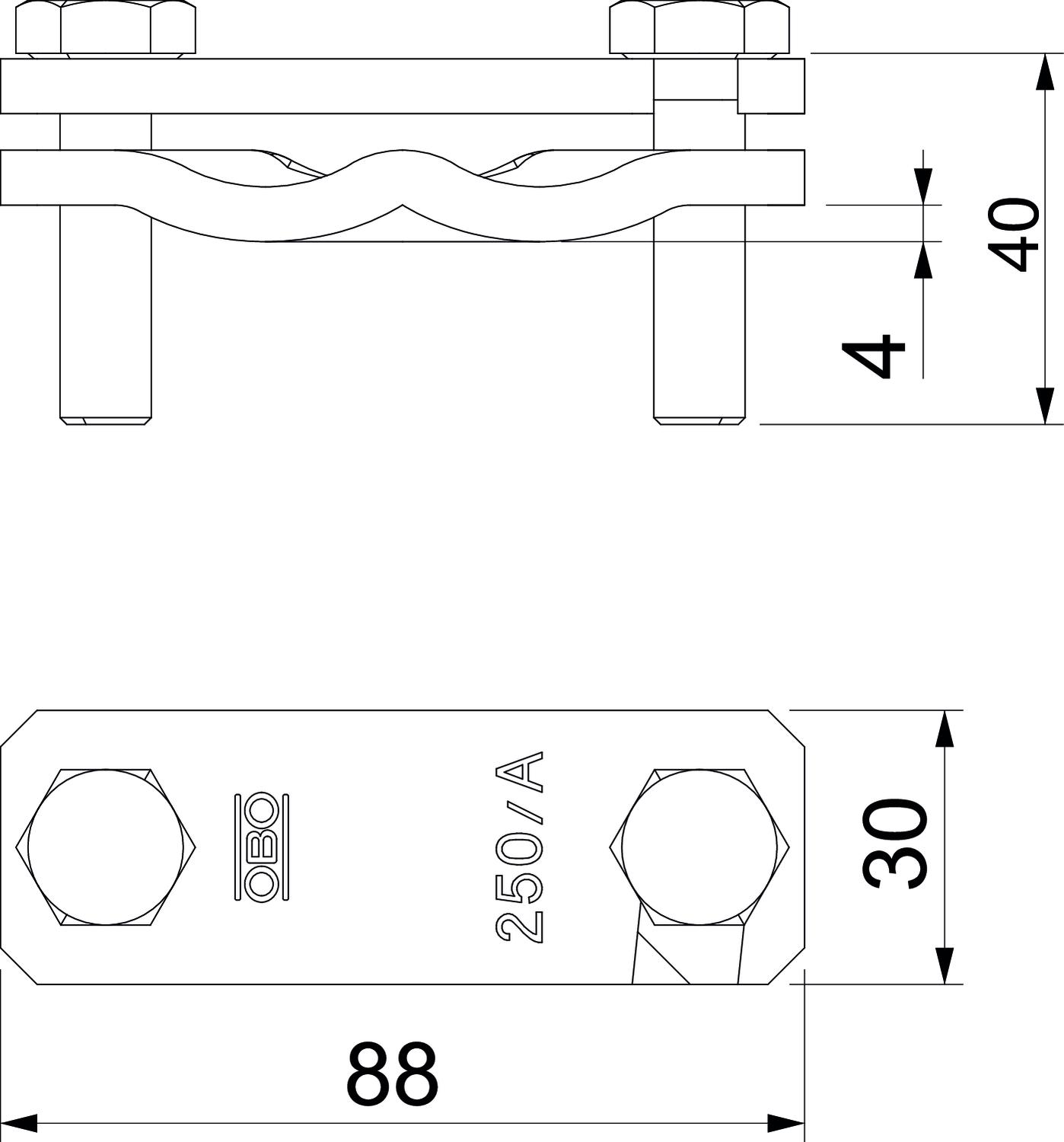

Dimension 88x30x45
Dimension A 30 mm
Dimension B 88 mm
Dimension L 40 mm
Fit Rd 6-22/max. FL50 mm
Flat conductor width, conductor 2, max. 50
Intermediate plate no
Lightning current carrying capacity H/100 kA
Material Stainless steel
Round conductor diameter, conductor 1, max. 22 mm
Round conductor diameter, conductor 1, min. 6 mm
Suitable for connection Miscellaneous
Type of connector Connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
250 A-VA Rd 6-22/max. FL50 mm 5313023
10 piece
