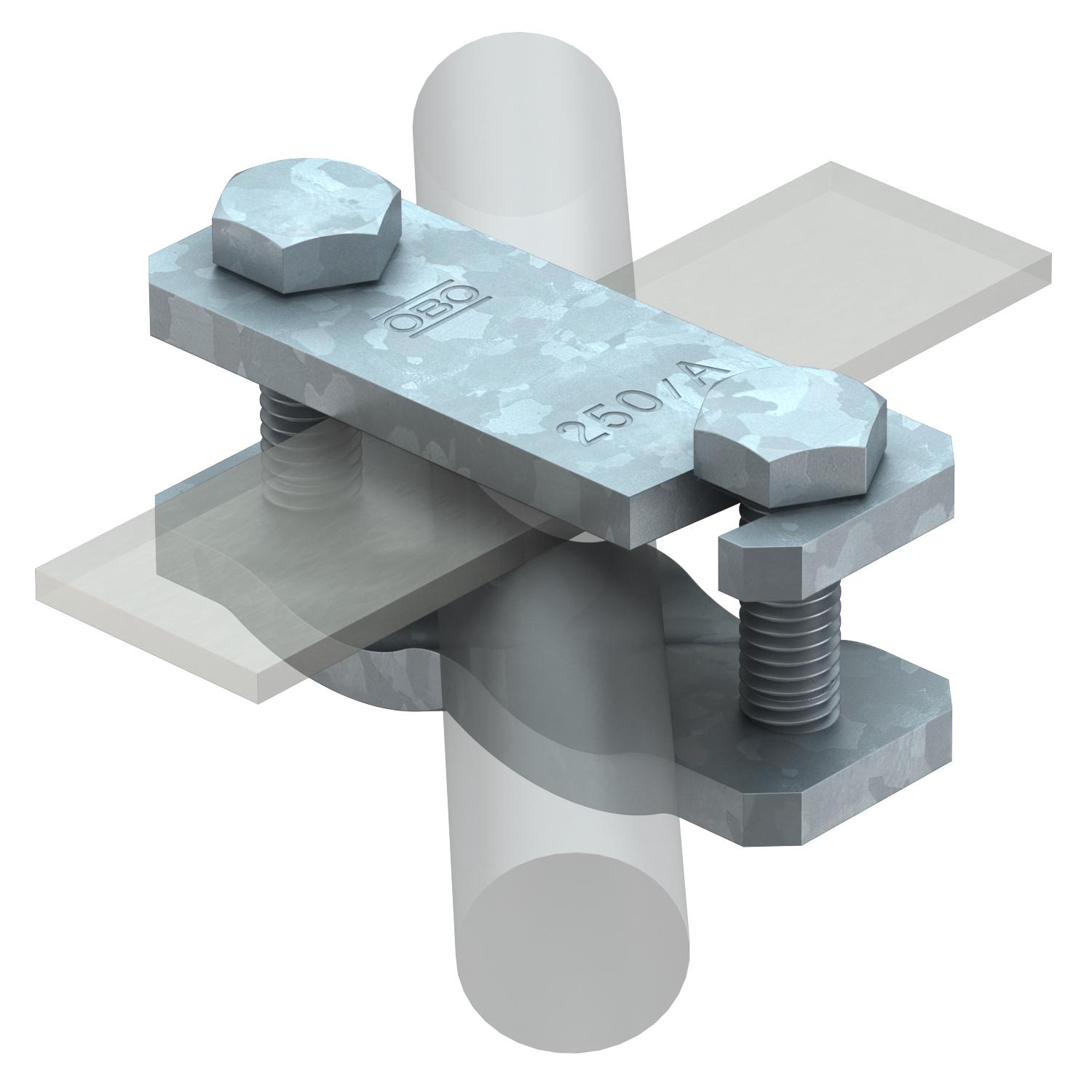

Diagonal clamp for flat conductors and round conductors FT
Item no. 5313015 | EAN 4012195740537
- Product description
-
Product description
• For reinforced steels Ø 6–22 mm and flat conductors 50 x 4
• Mounted with bolts M10 x 40
• Version ...-AS with bolts M10 x 30
• Simple mounting through open slot
-
- Technical data
-
Technical data
Dimension 88x30x45 Fit Rd 6-22/ max. FL50 mm Flat conductor width, conductor 2, max. 50 Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Round conductor diameter, conductor 1, max. 22 mm Round conductor diameter, conductor 1, min. 6 mm Short-circuit current (50 HZ)(1 s;≤300°C) 7,3 Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Hexagonal bolt Dimensions

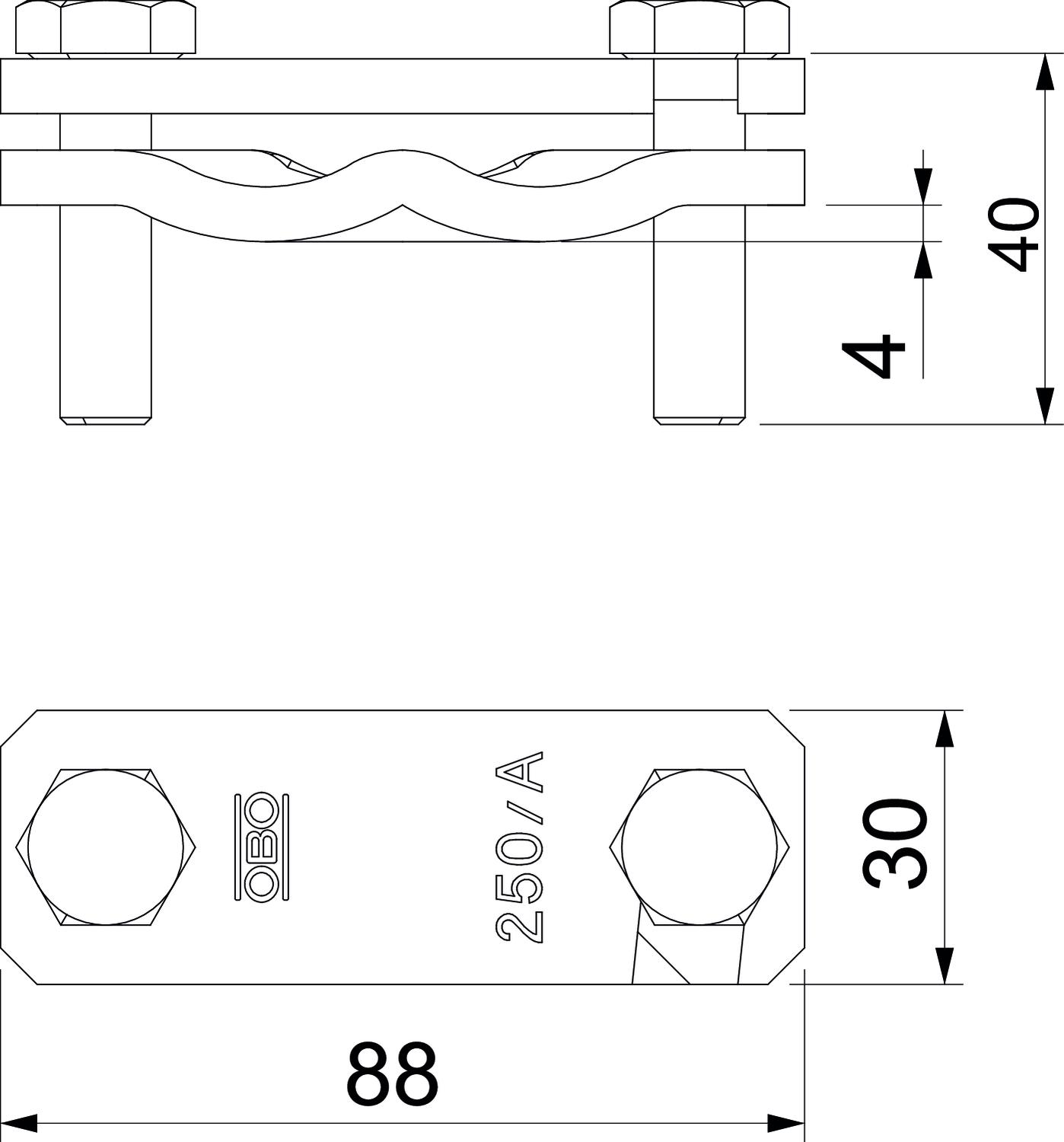

Dimension A 30 mm Dimension B 88 mm Dimension L 40 mm - All types
