- Product description
-

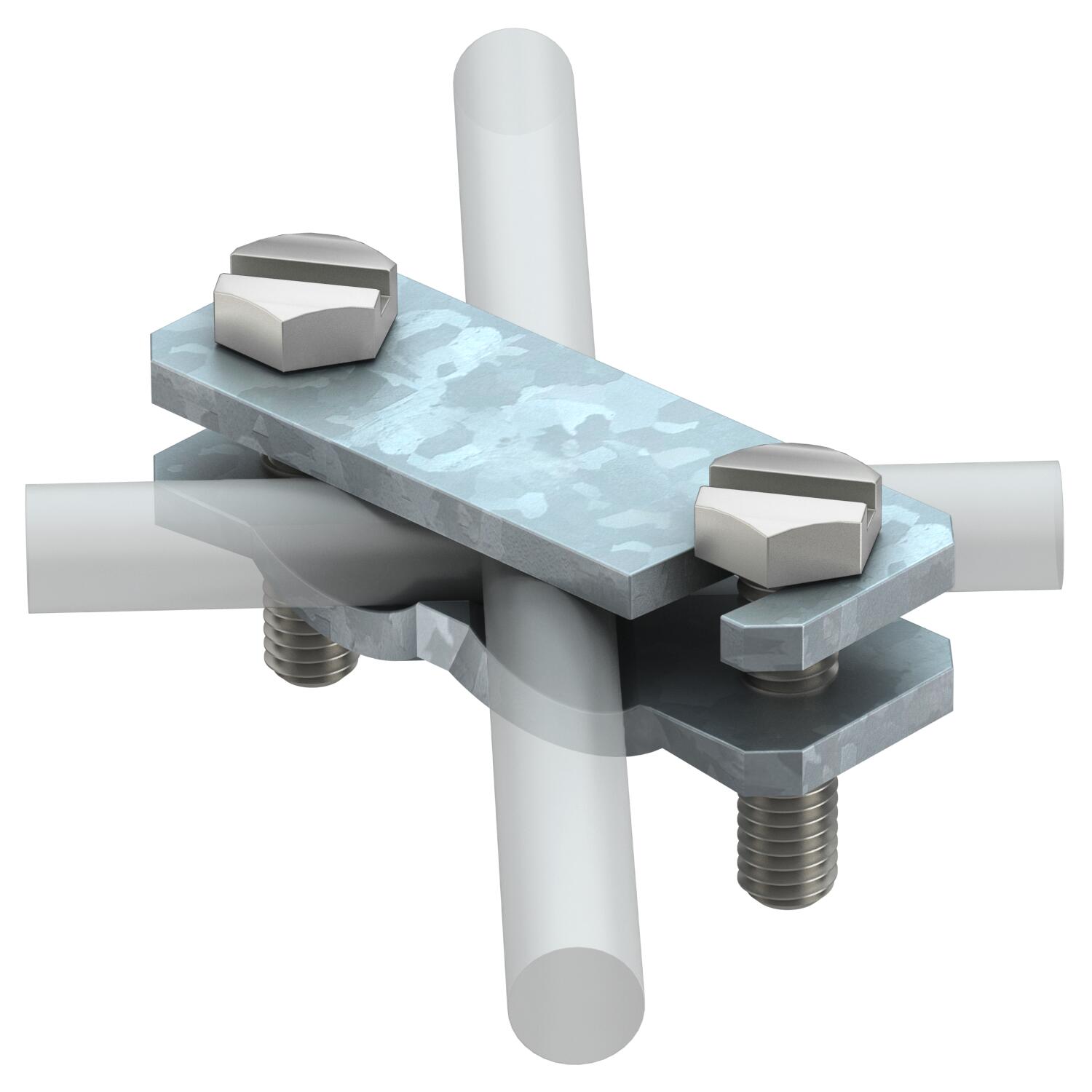

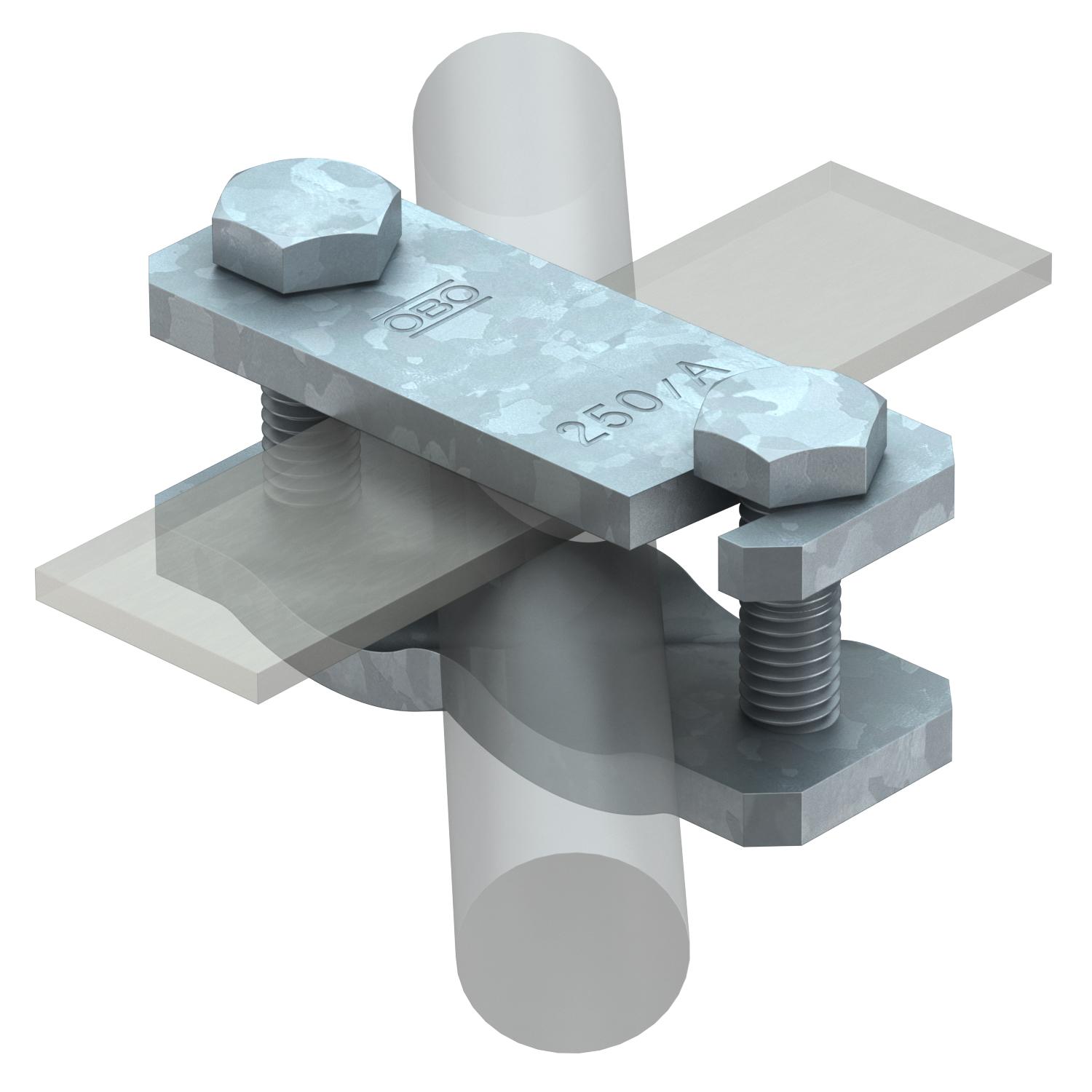

Product description
• For reinforced steels Ø 6–22 mm and flat conductors 50 x 4
• Mounted with bolts M10 x 40
• Version ...-AS with bolts M10 x 30
• Simple mounting through open slot
- Technical data
-
Technical data

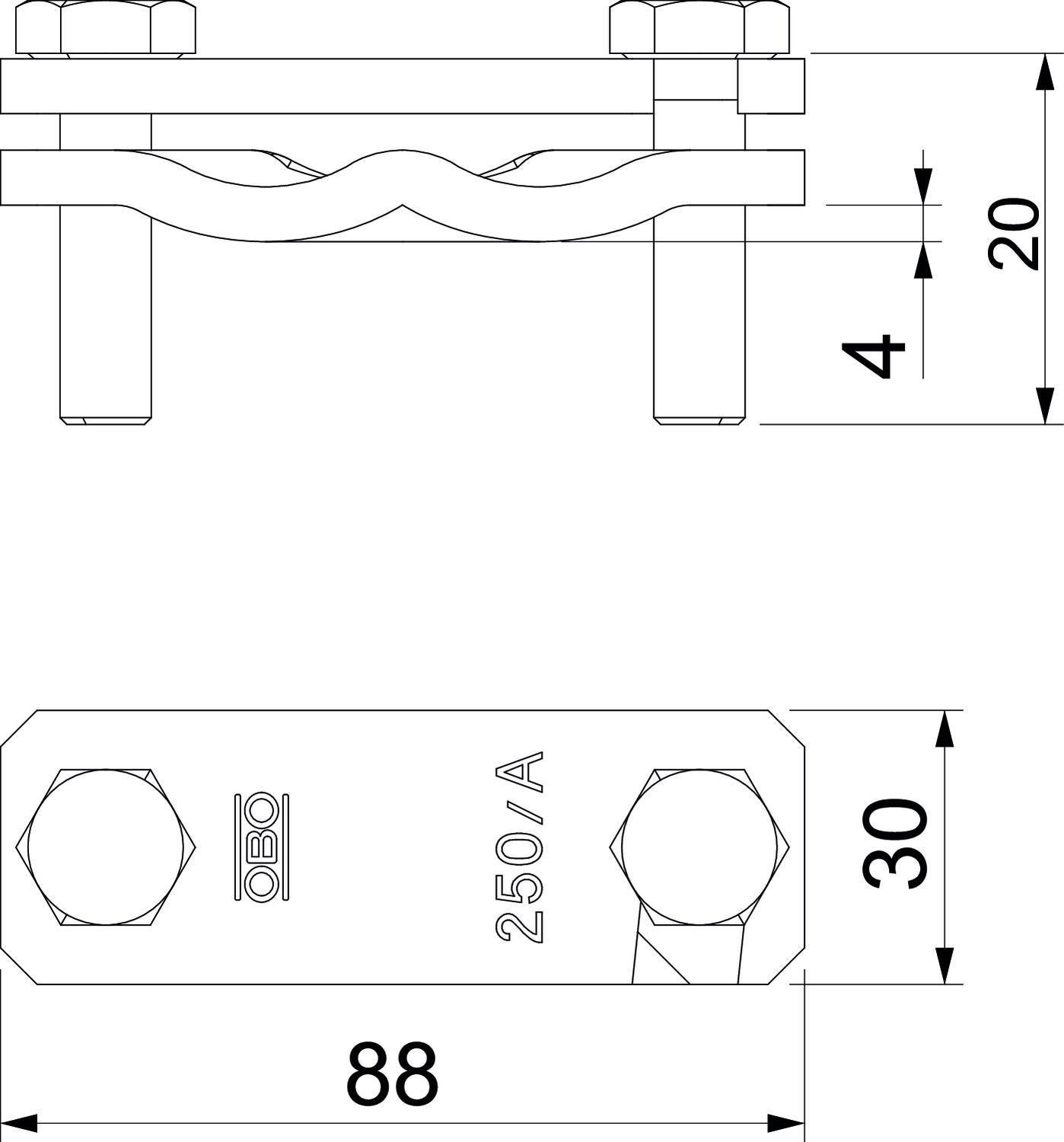

Dimension 88x30x45 Dimension A 30 mm Dimension B 88 mm Dimension L 20 mm Fit Rd 6-22/ max. FL50 mm Flat conductor width, conductor 2, max. 50 Intermediate plate no Lightning current carrying capacity H/100 kA Material Steel Round conductor diameter, conductor 1, max. 22 mm Round conductor diameter, conductor 1, min. 6 mm Short-circuit current (50 HZ)(1 s;≤300°C) 7,3 Suitable for connection Miscellaneous Surface Hot-dip galvanised Type of connector Connectors Type of fastening screw Hexagonal bolt - All types
- Downloads
-
Data sheet 250 AS-FT / 5313031 , 0.20MB , pdfDeclaration of conformity 250 AS-FT / 5313031 , 0.06MB , pdfREACH Declaration of conformity 250 AS-FT / 5313031 , 0.27MB , pdfRoHS Declaration of conformity 250 AS-FT / 5313031 , 0.12MB , pdfLabel approval Diagonal clamp 250 AS-FT , 0.09MB , pdf
