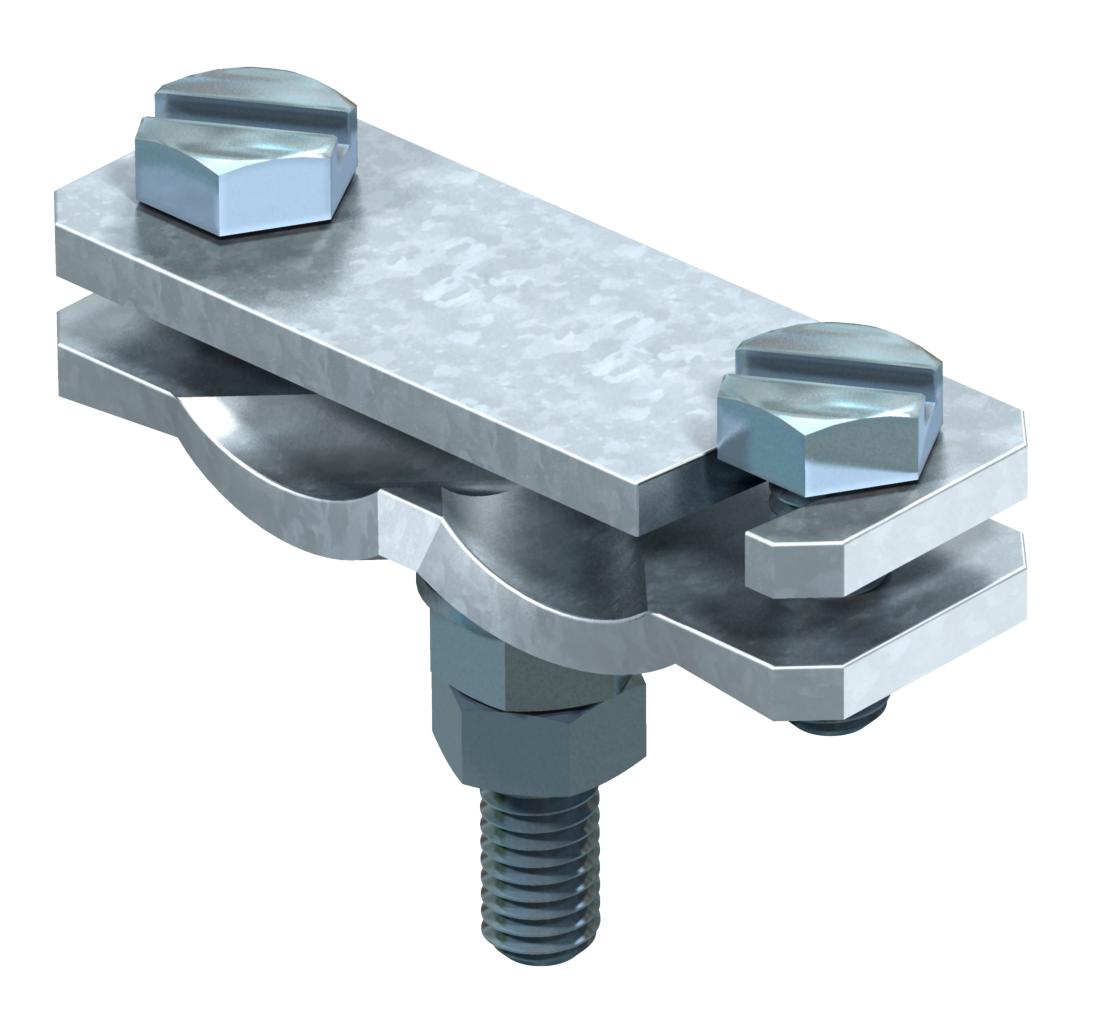

Diagonal clamp with bolt FT

Item no. 5313066 | EAN 4012195806530

5313066 / 250 A-BO
Rd 6-22/max. FL50 mm
Product description

Product description

• For reinforced steels Ø 6-22 mm and flat conductor 50 x 4

• Installed with bolts M10 x 25

• Simple installation with open slot

• With flange-welded bolts M10 x 40, inc. 2 washers and 2 nuts
  • Lightning current-tested
Technical data

Technical data

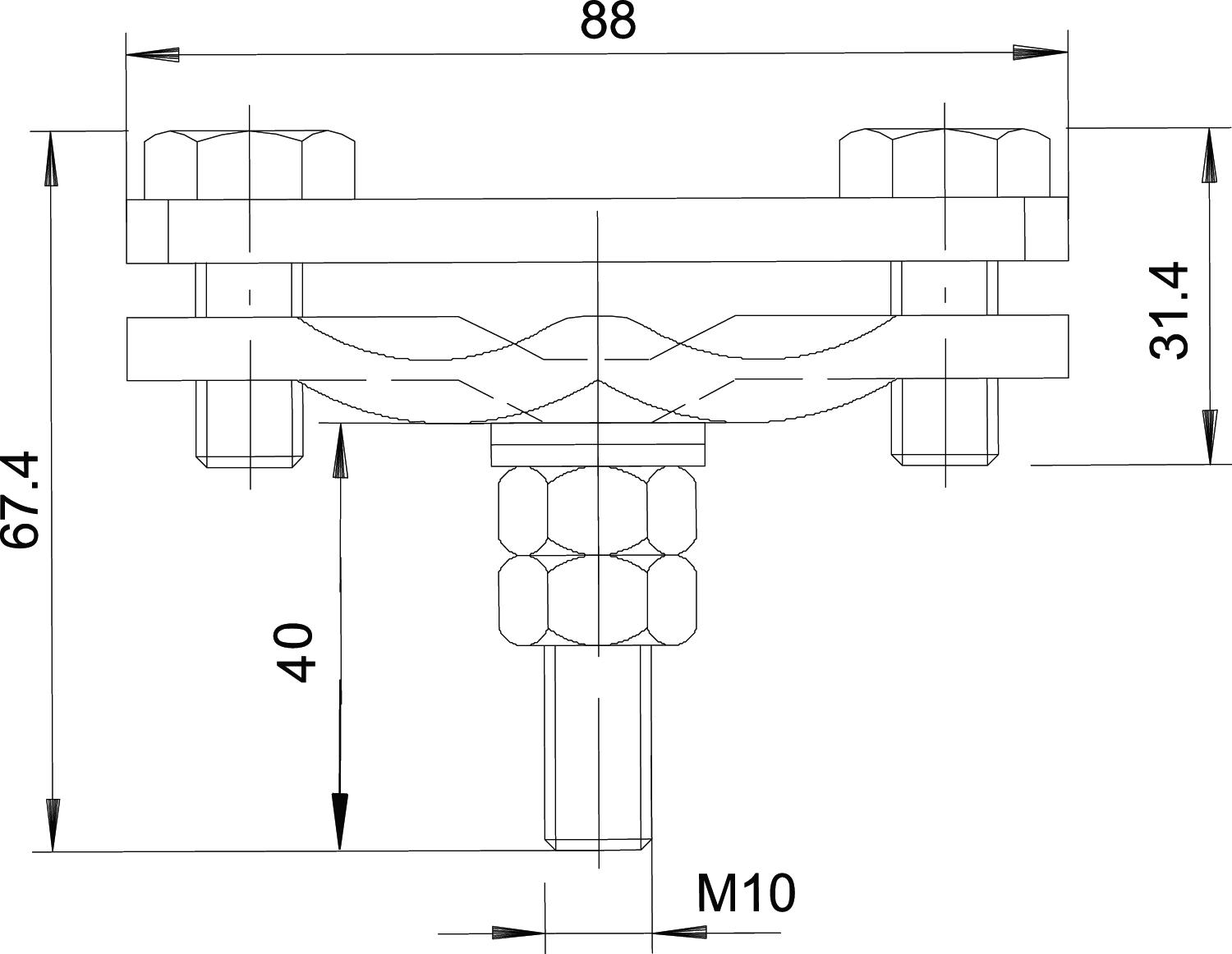

Dimension 88x30x70
Dimension L 25 mm
Fit Rd 6-22/max. FL50 mm
Flat conductor width, conductor 2, max. 5
Lightning current carrying capacity H/100 kA
Material Steel
Round conductor diameter, conductor 1, max. 22 mm
Round conductor diameter, conductor 1, min. 6 mm
Suitable for connection Miscellaneous
Surface Hot galvanized
Type of connector Connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
250 A-BO Rd 6-22/max. FL50 mm 5313066
25 piece
Downloads

Download

REACH Declaration of conformity 250 A-BO / 5313066 , 0.12MB , pdf
RoHS Declaration of conformity 250 A-BO / 5313066 , 0.12MB , pdf
