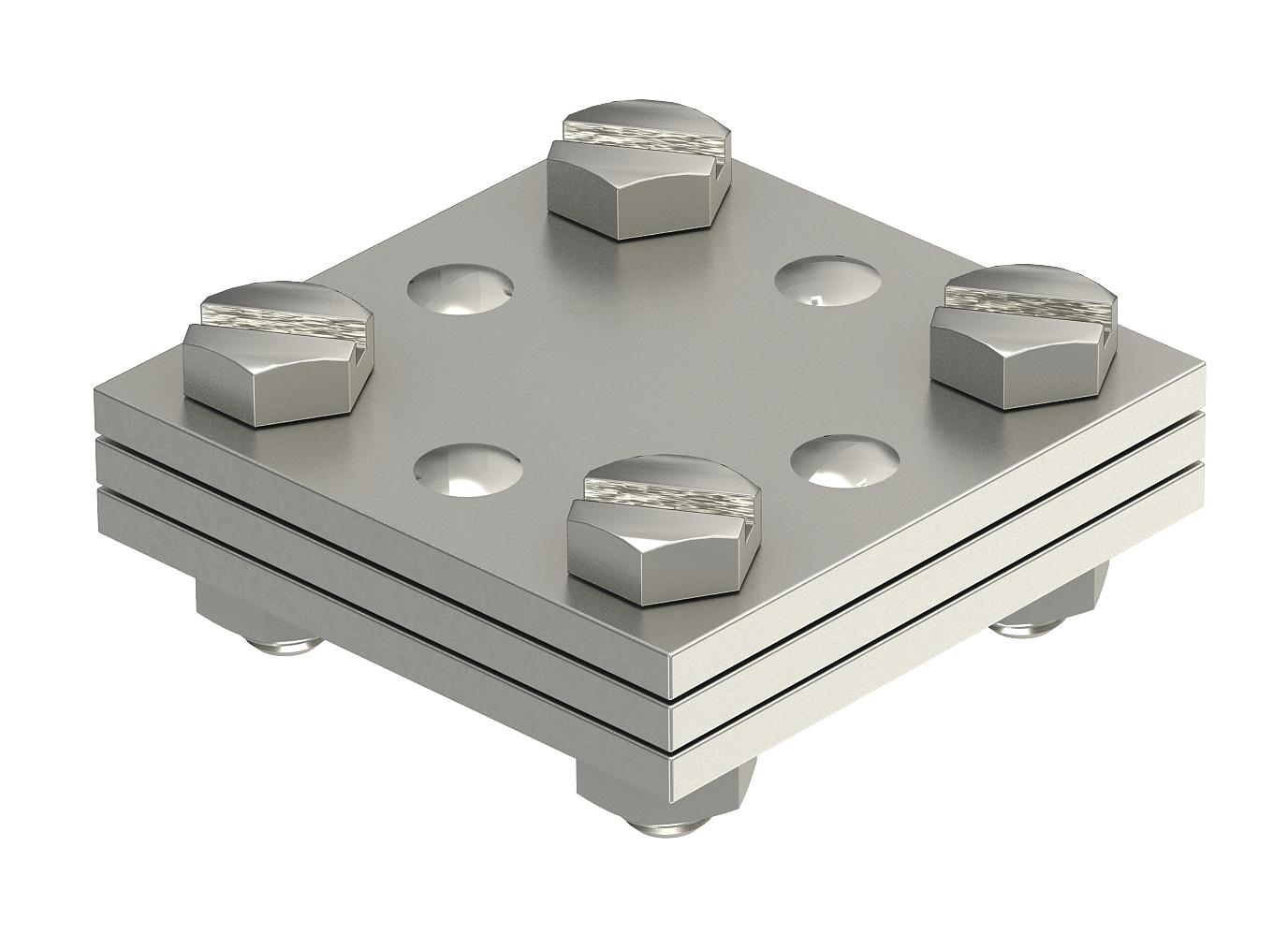

DIN cross-connector for flat conductor, with intermediate plate

Item no. 5314616 | EAN 4012195893097

5314616 / 256 DIN 30 V4A
max. FL30 mm
Product description

Product description

• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)

• Fit: Max. FL 30 x FL 30

• Without adapter plate

• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8 (F)
  • Lightning current-tested
Technical data

Technical data

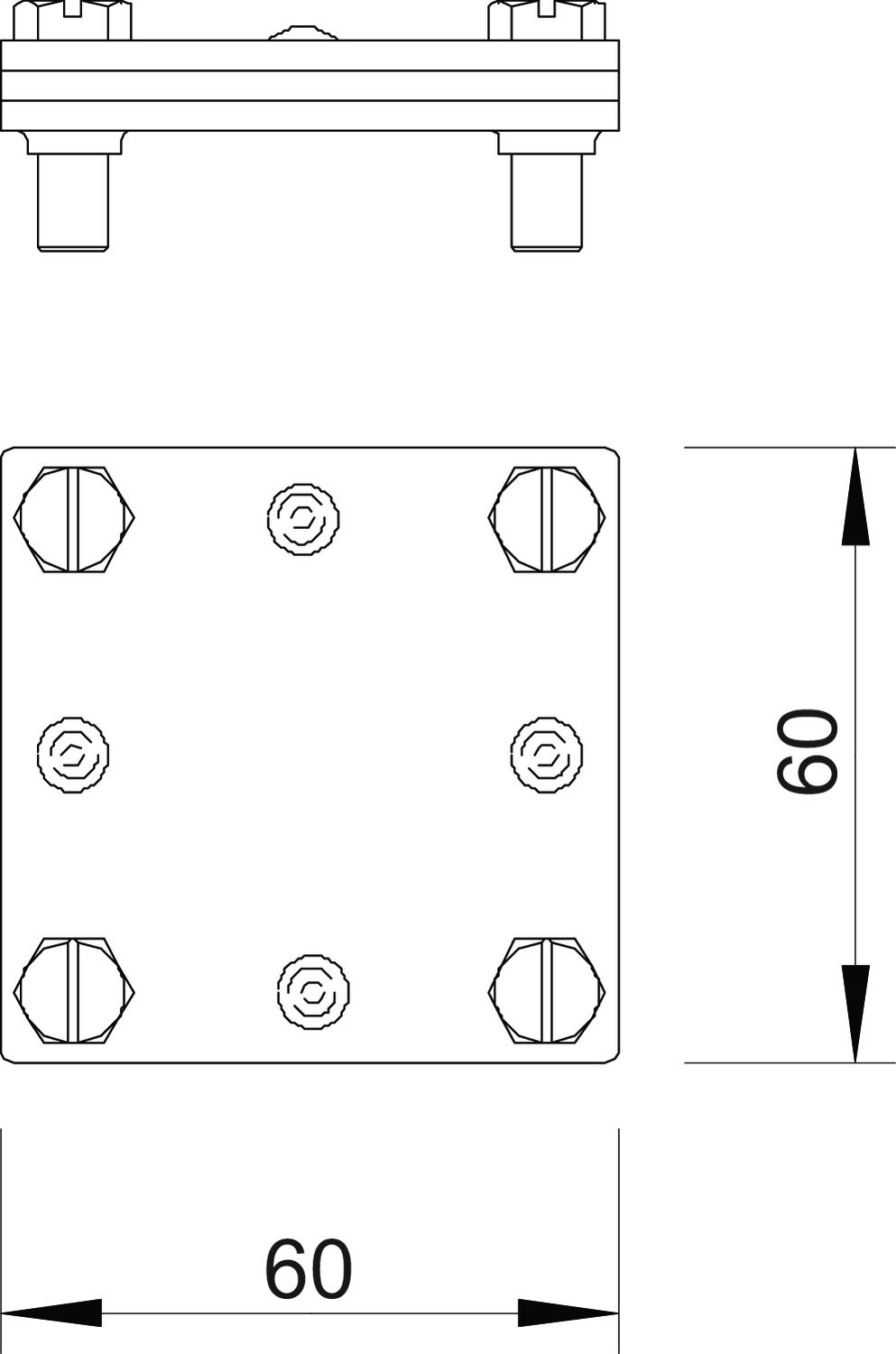

Dimension 30mm
Dimension A 60 mm
Dimension B 60 mm
Fit max. FL30 mm
Lightning current carrying capacity H/100 kA
Material Stainless steel

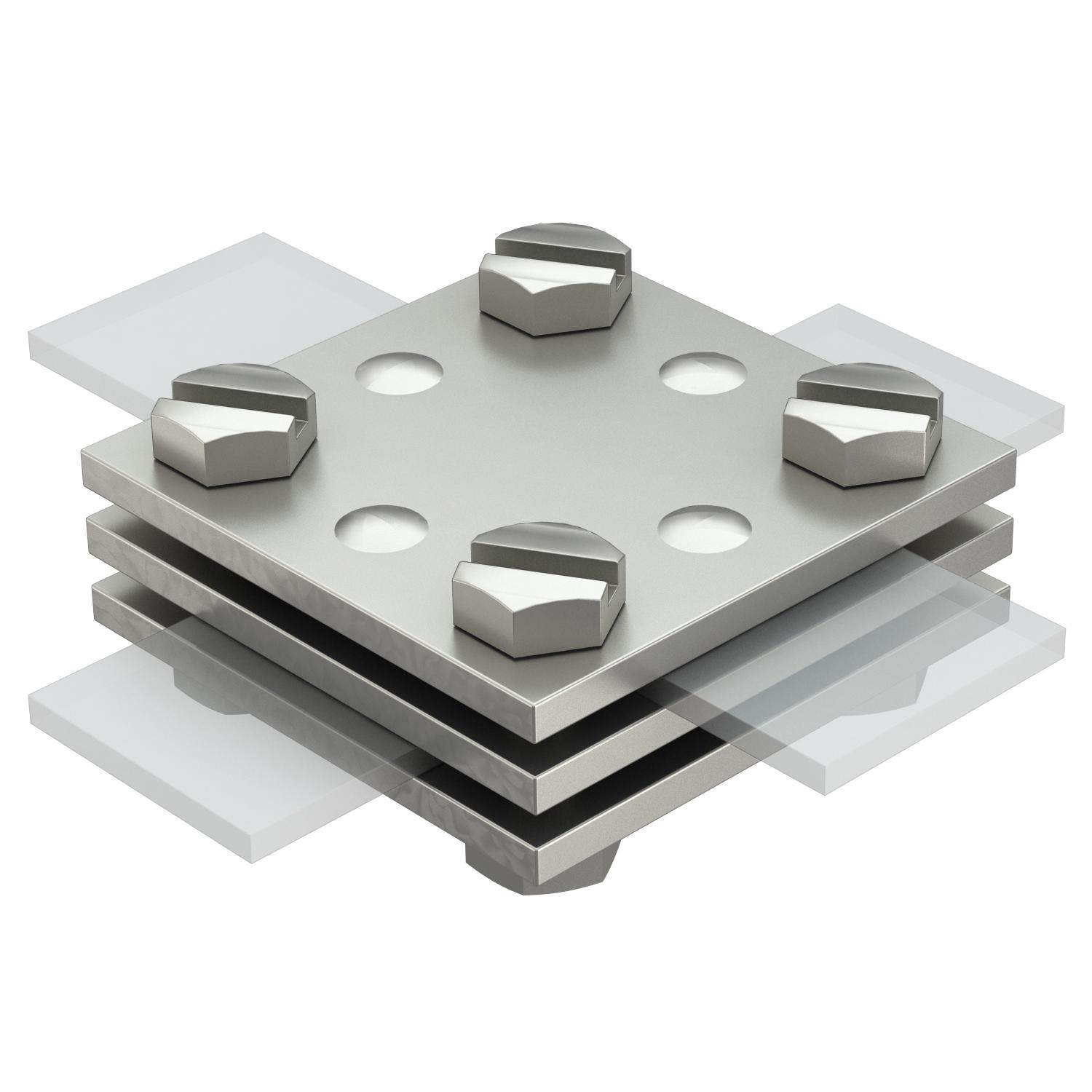

Suitable for connection Flat conductor Fl 30 / Fl 30
Type of connector Cross-connectors
Type of fastening screw Hexagonal bolt
All types

All types

Types Fit Item no. Quantity SSU
256 DIN 30 V4A max. FL30 mm 5314616
10 piece
