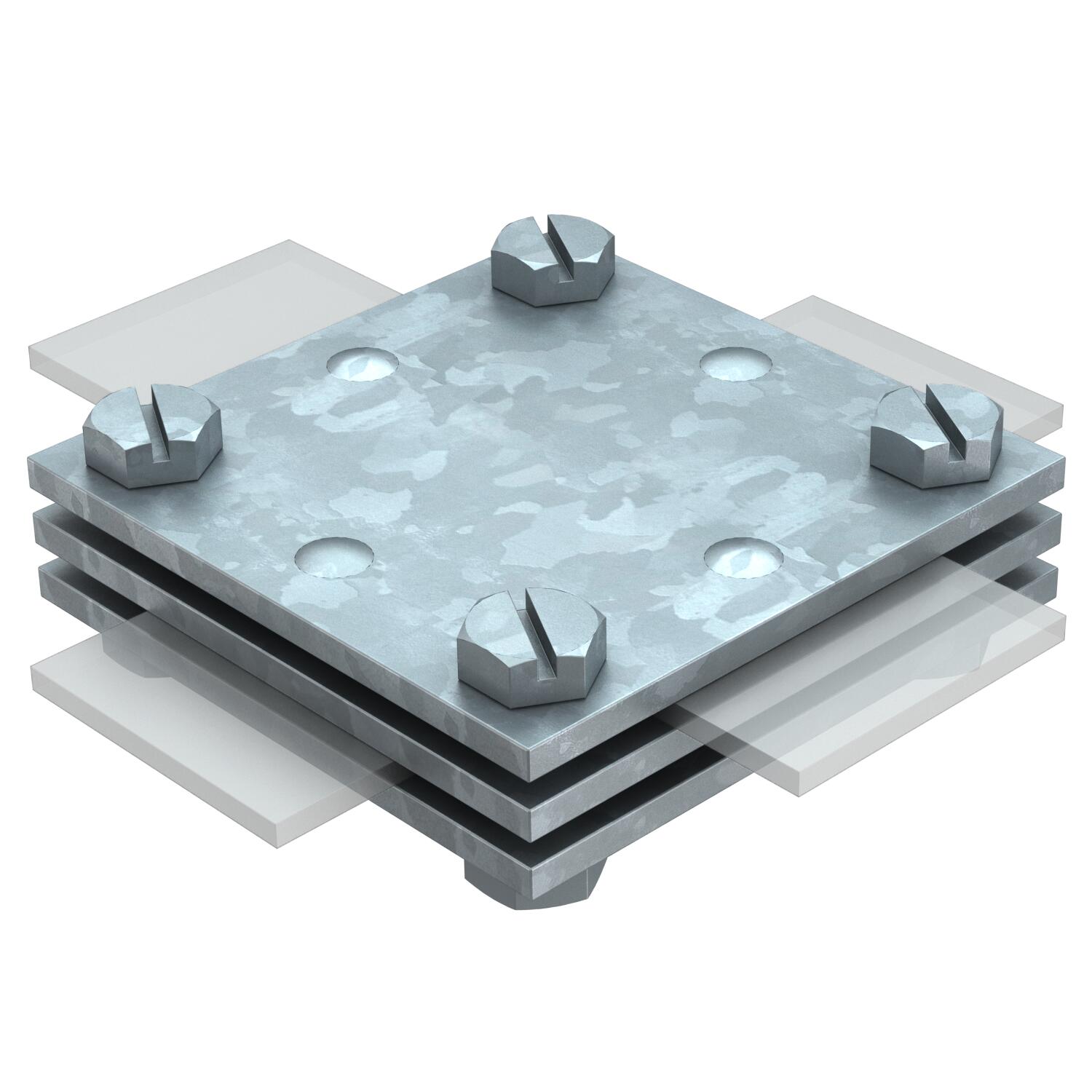

DIN cross-connector for flat conductor, with intermediate plate
Item no. 5314623 | EAN 4012195419358
- Product description
-
Product description
• Meets the requirements of VDE 0185-305-3 (IEC/EN 62305-3)
• Fit: Max. FL 30 x FL 30 or max. FL 40 x FL 40
• With adapter plate
• Mounted with 4 hexagonal bolts M8 x 25 and 4 hexagonal nuts M8
-
- Technical data
-
Technical data
Dimension 40mm Fit max. FL40 mm Intermediate plate yes Lightning current carrying capacity H/100 kA Material Steel Suitable for connection Flat conductor Fl 40 / Fl 40 Surface Hot-dip galvanised Type of connector Cross-connectors Type of fastening screw Hexagonal bolt Dimensions

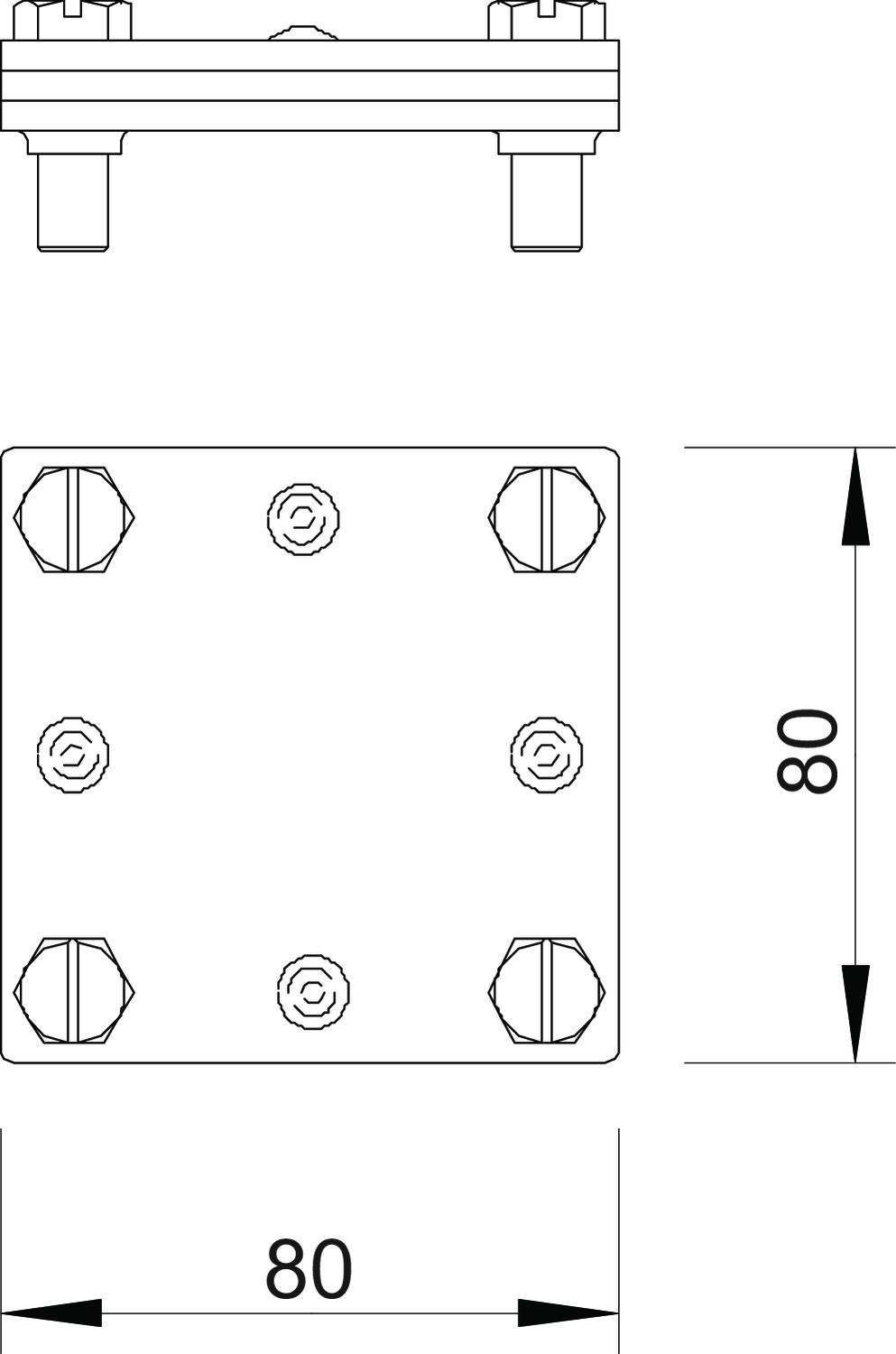

Dimension A 80 mm Dimension B 80 mm - All types
- Downloads
-
Data sheet 256 DIN 40 FT / 5314623 , 0.24MB , pdfREACH Declaration of conformity 256 DIN 40 FT / 5314623 , 0.27MB , pdfRoHS Declaration of conformity 256 DIN 40 FT / 5314623 , 0.12MB , pdfMounting instructions Mounting and installation instructions, cross-connectors , 2.00MB , pdf
