Distribution box, 3 division units, empty, polycarbonate 191 | 151 | 126 |

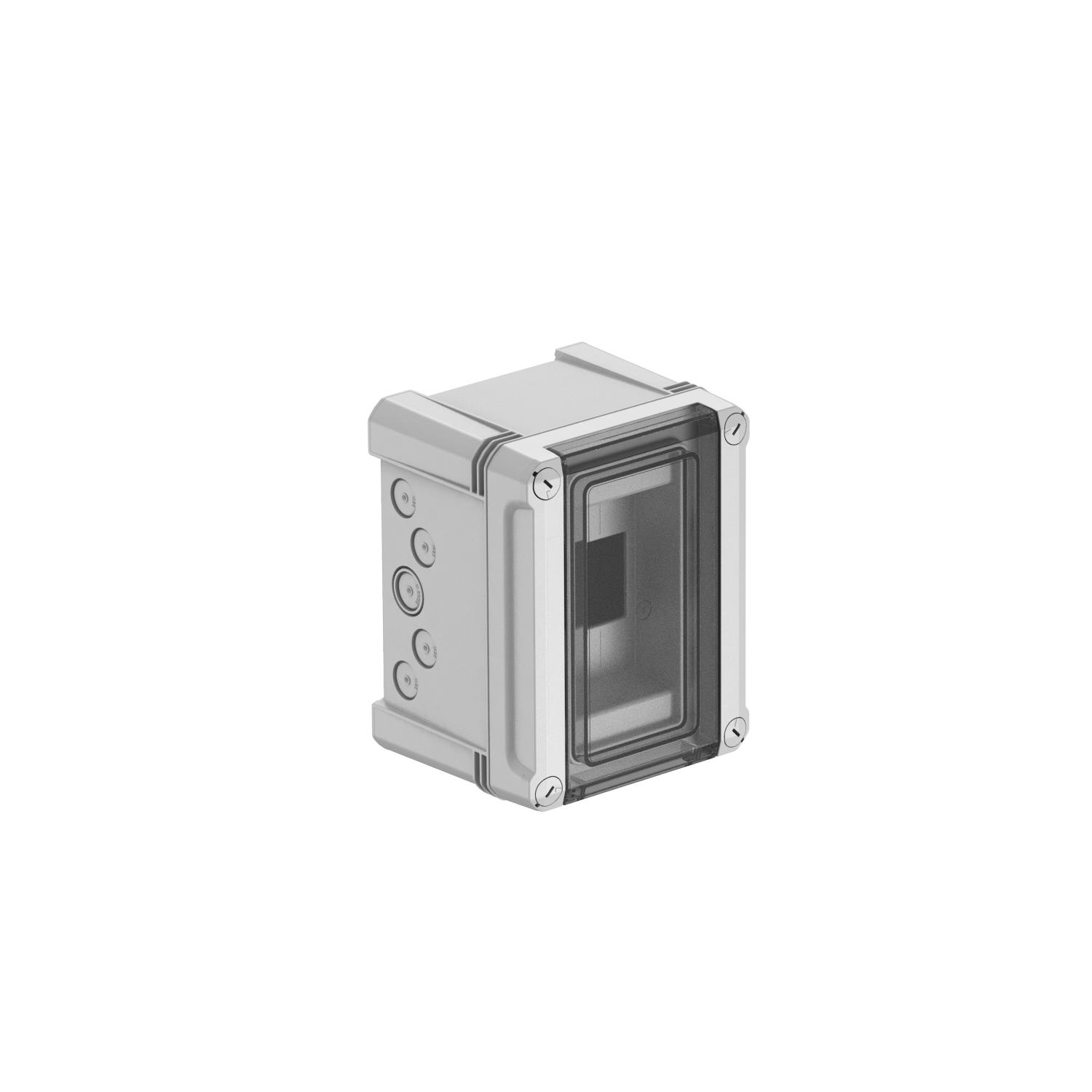

Distribution box, 3 division units, empty, polycarbonate

Item no. 2008860 | EAN 4012196465781

Item no. / Types	2008860 / SDB 03L PC

Length	191 mm

Width	151 mm

Height	126 mm

Product description

Product description

Small distributor for surface mounting, for the current sub-distribution in interior and exterior areas, according to IEC 439-3. With pre-mounted 35 mm hat profile rail. IP66 protection type and IK08 protection rating. Transparent cover to screw on, with cut-out. Including 4 screw cover caps.

- Protection-insulated for a maximum of 3 division units

- 2 break-out openings each of Ø 20 mm at the top and bottom

- 1 combination break-out opening each of Ø 20/25 mm at the top and bottom

- 4 screw cover caps
Nominal current 40 A
Power loss at 40 K 17 W
Measured voltage Un: 400 V
Operating measured voltage Ue: 400 V
Impulse current resistance Cat.III Uimp: 4 kV

Technical data

Technical data

Colour	Light grey; RAL 7035
Cover type	Cover

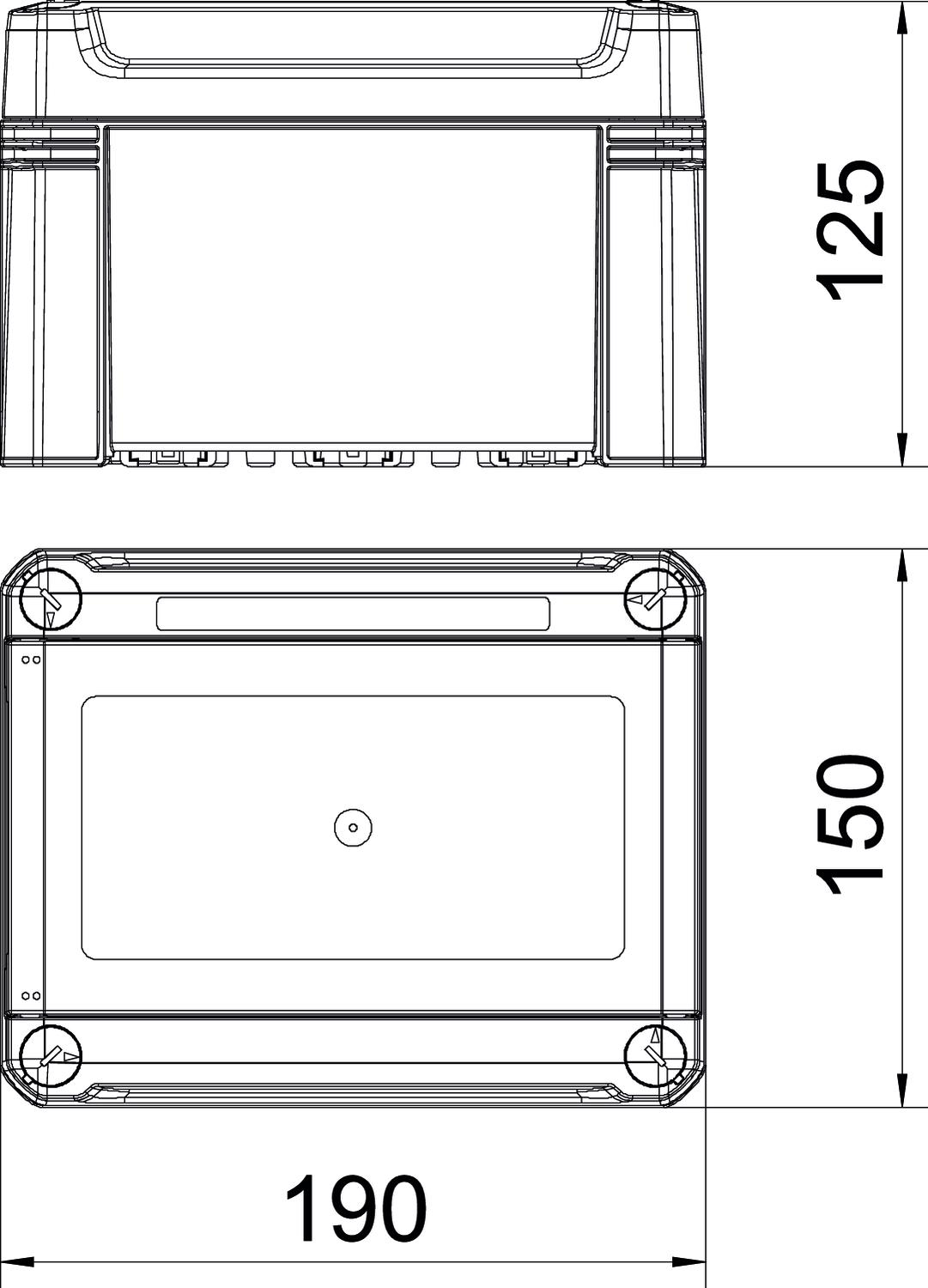

Dimension	150x190x125
DIN rail	yes
EMC version	no
Extension option	yes
Height	126 mm
Length	191 mm
Material	Polycarbonate
Mounting type, consumer units	Structure
Nominal current	40 A

Nominal voltage	400 V
Number of rows	1
Protection rating	IP66
Protection rating IK code	IK08
Transparent lid	yes
Version, small distributor cover	With cut-out
Width	151 mm
Width in divisional units	3
With lock	no
With mounting plate	no
