Distributor block, 3-pole, 1I/2O
Item no. 6108970 | EAN 4012196688289
- Product description
-
Product description

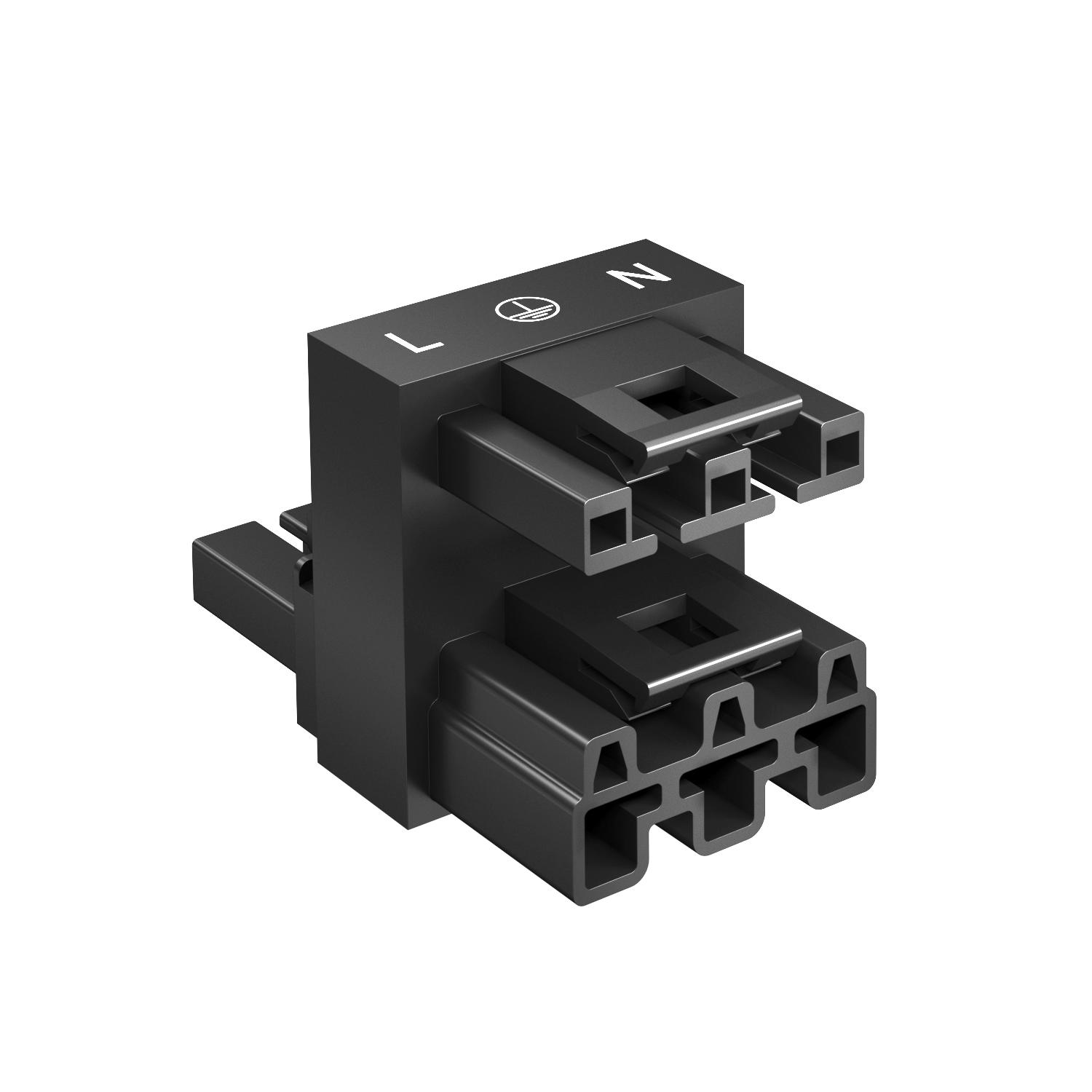

2x distributor, 3-pin, type WINSTA® MIDI.
1 input, 2 outputs with locking lever. 250 V, 25 A.
-
- Technical data
-
Technical data
Built-in variants Installation part/plug connection Colour Black Contact material CuSn Dimension 51x30x33 Direction of insertion Straight Halogen-free yes Material Polyamide Mechanical encoding yes Nominal current 25 A Nominal voltage 250 V Pin labelling L, N, PE Plug-in system WINSTA® MIDI Pole number 3 Protection rating IP20 Surface treatment of the contacts Miscellaneous Type of locking Integrated in plug connector Dimensions

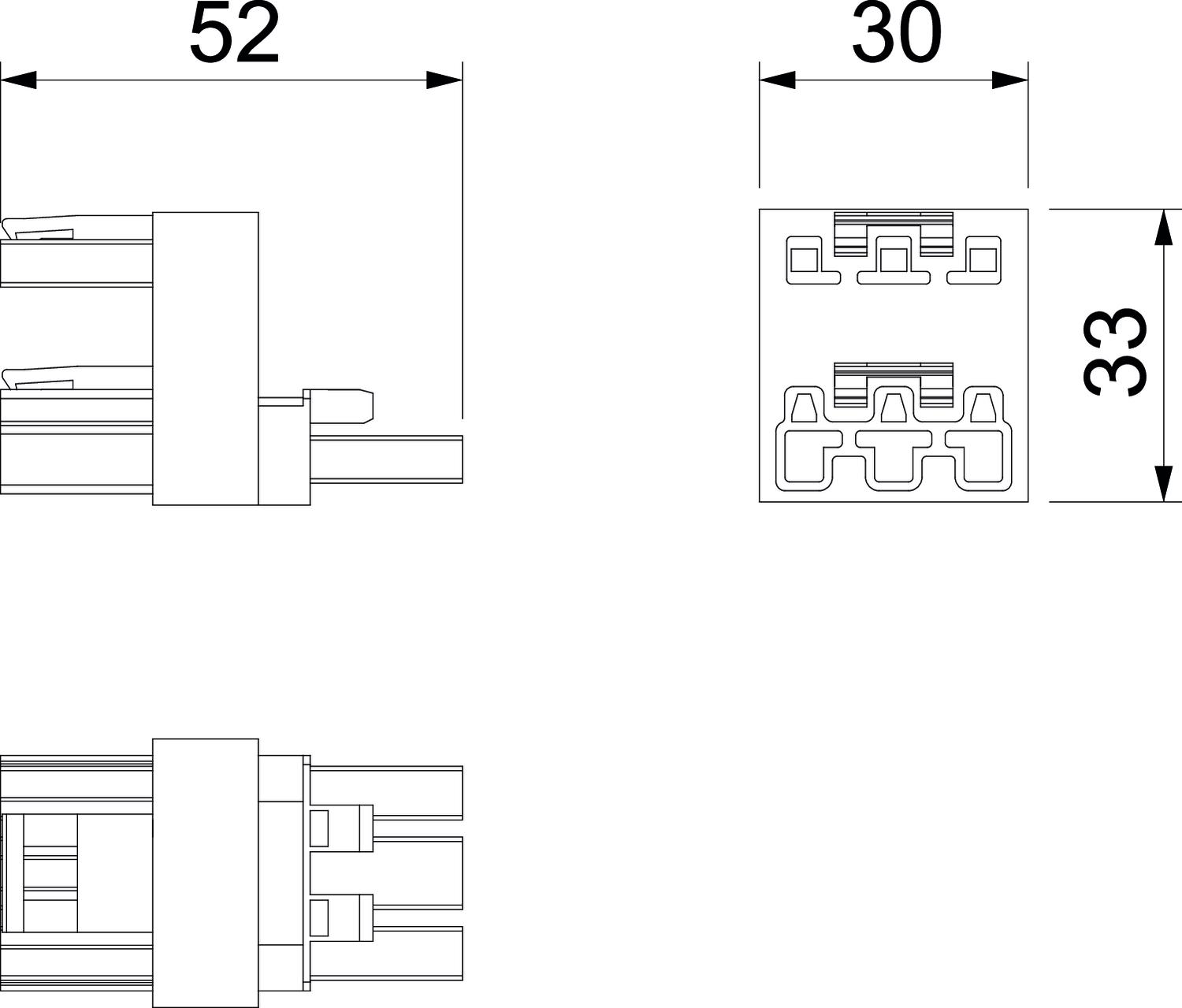

Height 33 mm Length 51 mm Width 30 mm - All types
- Downloads
-
Data sheet VB2-WIN 3P / 6108970 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfDeclaration of conformity VB2-WIN 3P / 6108970 , 0.13MB , pdfREACH Declaration of conformity VB2-WIN 3P / 6108970 , 0.12MB , pdfRoHS Declaration of conformity VB2-WIN 3P / 6108970 , 0.12MB , pdfNo invitation to tender text is available for this product.
