Divisible cable gland, seal insert, 1 cable, light grey 1 | | M25 x 1,5 | no | Light grey

Divisible cable gland, seal insert, 1 cable, light grey

Item no. 2024916 | EAN 4012196334537

Item no. / Types

Number of drill holes	1

Thread	M25 x 1,5

Sealing insert, multiple	no

Colour	Light grey

Product description

Product description

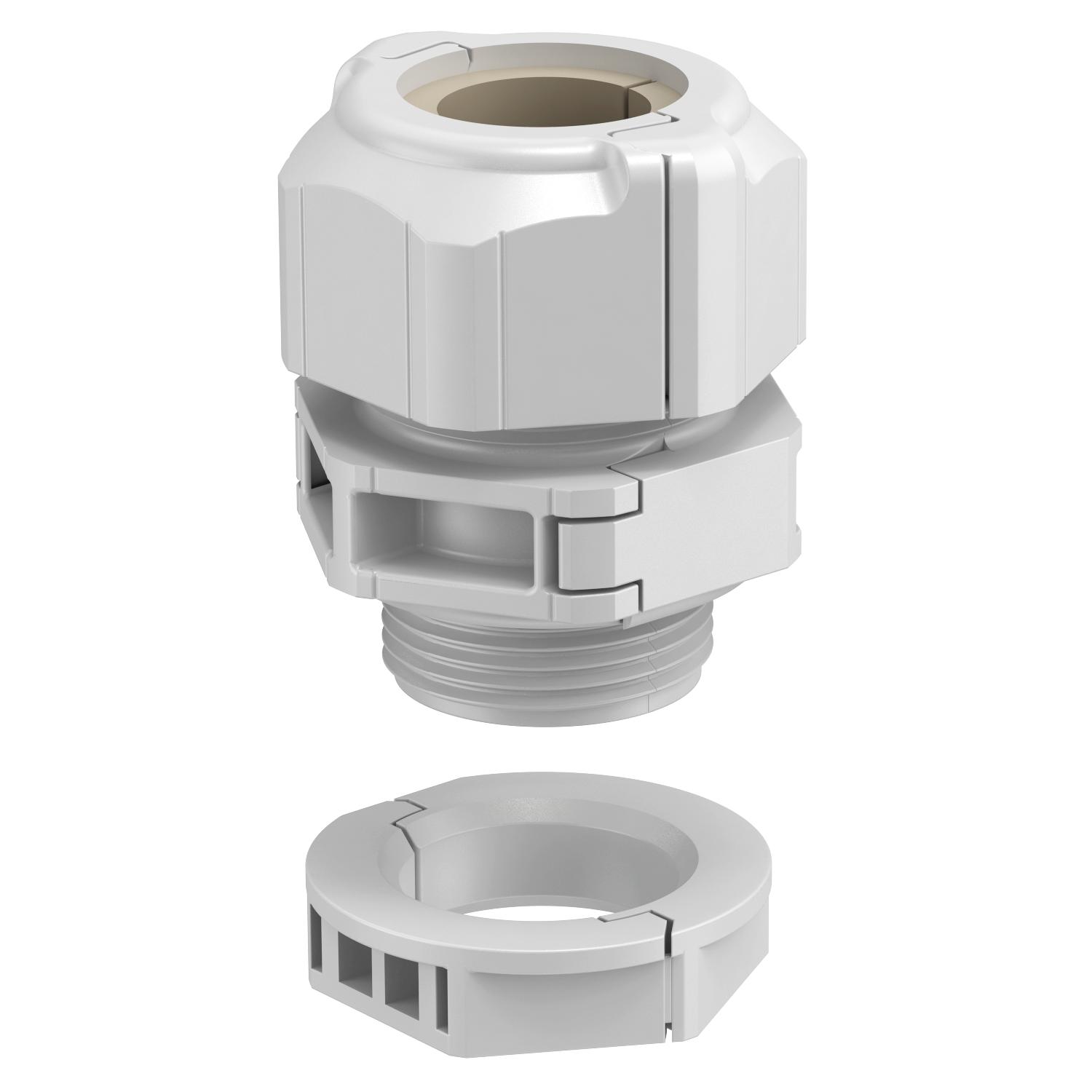

The splittable cable gland V-TEC TB.. ensures - like all V-TEC glands - a secure sealing of the cable. The installation of pre-terminated cables or function cables, for example, is easy and quick, thanks to the splitting of the cable gland.

The V-TEC TB is also unbeatable when refitting an existing installation and as a "repair gland". There is no need to disassemble pre-mounted cables, it can be installed without interrupting the production process.

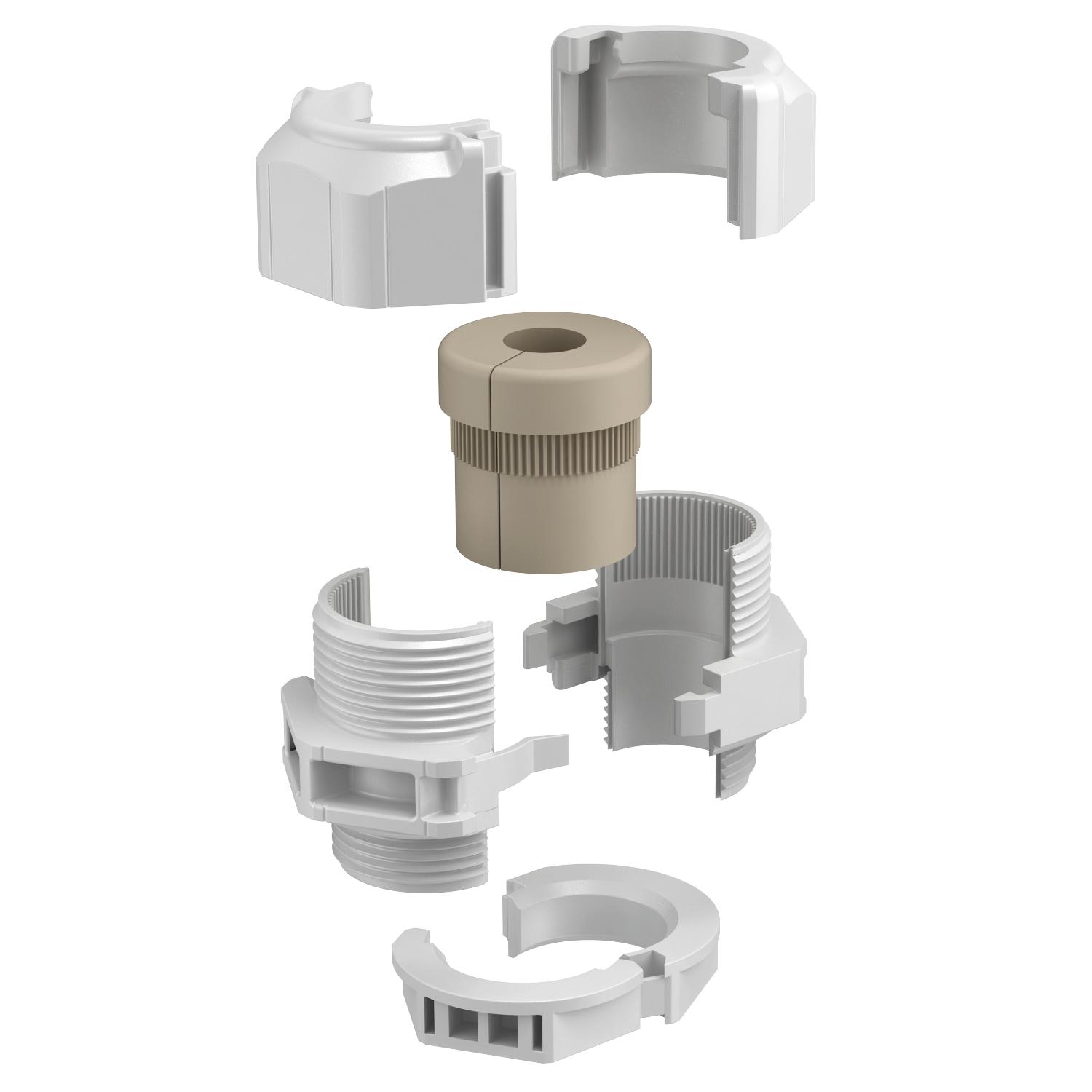

The gland set consists of an intermediate support, a cap nut and the seal. Of course, the split locknut is also in the scope of delivery.

Technical data

Technical data

Bend protection	no
Colour	Light grey
Dimension	M25
Dimension D	13 mm
Dimension E1 (mm)	38,5 mm
Dimension E2	33,8 mm
Dimension G	M25x1,5 mm
Dimension L	41 mm
Dimension L max.	40 mm
Dimension L min.	31,5 mm
Dimension L1	11 mm
Dimension L2	10 mm
Dimension L3	9 mm
explosion-proof	no
Fibre-glass reinforced	no
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Flat cable gland	no
For Ex zone	Without
For Ex zone dust	Without
For Ex zone gas	Without
Halogen-free	yes
Height	50 mm
Impact-resistant	yes

Length	35 mm
Material	Polycarbonate
Nominal thread size	25
Number of drill holes	1
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-20 °C
Protection rating	IP67
Sealing area D, max.	13 mm
Sealing area D, min.	11 mm
Sealing insert, multiple	no
Splittable gland	yes
Strain relief option	no
Thread	M25 x 1,5
Thread increase	1,5 mm
Thread length	11 mm
Thread type	Metric
Type of seal	Sealing ring
Unstable torque	4 Nm
Version for	Straight
WAF 1	35 mm
WAF 2	31 mm
Width	38,5 mm
With locknut	yes

All types

All types

Types	Number of drill holes	Thread	Sealing insert, multiple	Colour	Item no.	Quantity	SSU
V-TEC TB25 05-07	1	M25 x 1,5	no	Light grey	2024912	piece	5 piece
V-TEC TB25 09-11	1	M25 x 1,5	no	Light grey	2024913	piece	5 piece
V-TEC TB25 11-13	1	M25 x 1,5	no	Light grey	2024916	piece	5 piece
V-TEC TB25 12-15	1	M25 x 1,5	no	Light grey	2024919	piece	5 piece
V-TEC TB25 14-18	1	M25 x 1,5	no	Light grey	2024922	piece	5 piece
V-TEC TB25 18-20	1	M25 x 1,5	no	Light grey	2024925	piece	5 piece
