DK connector 40 | 20 | 125
morepic-1 morepic-2 video-1

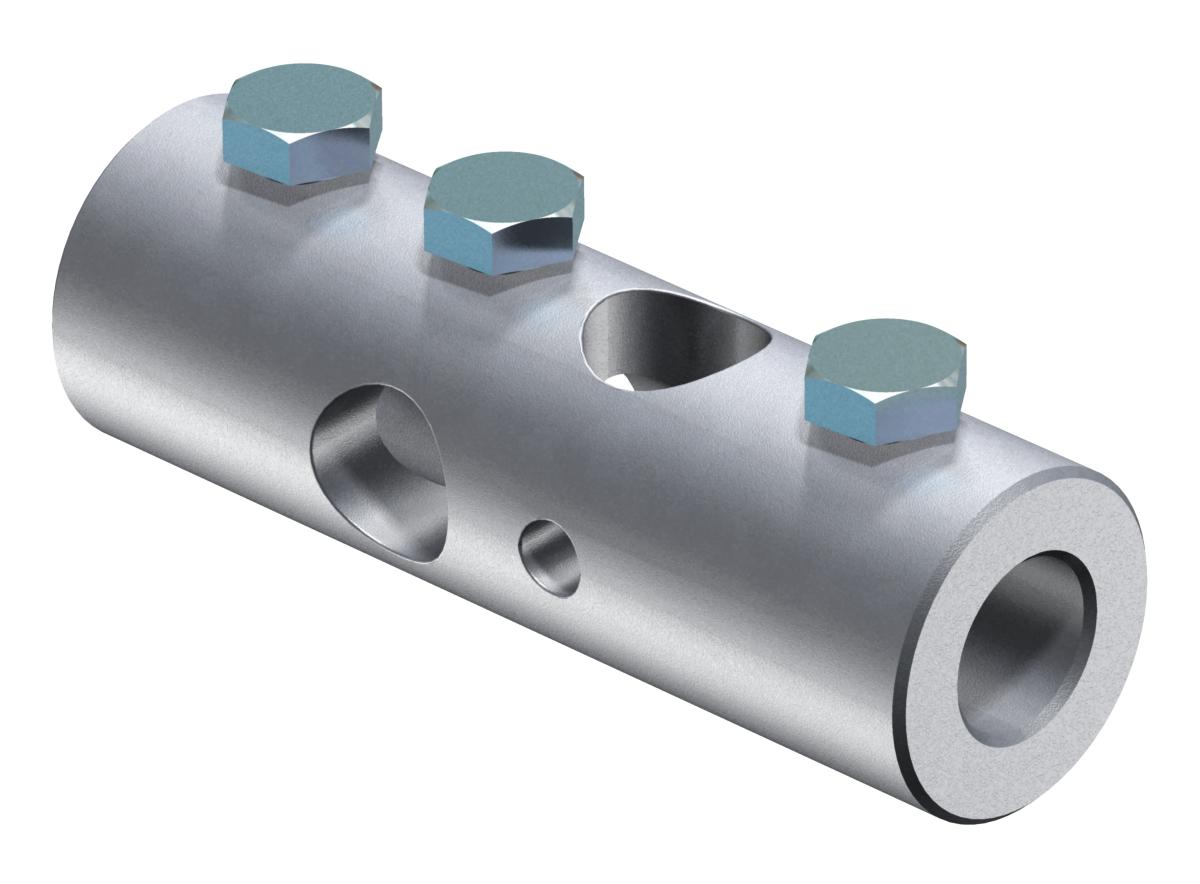

DK connector

Item no. 5408245 | EAN 4012195895817

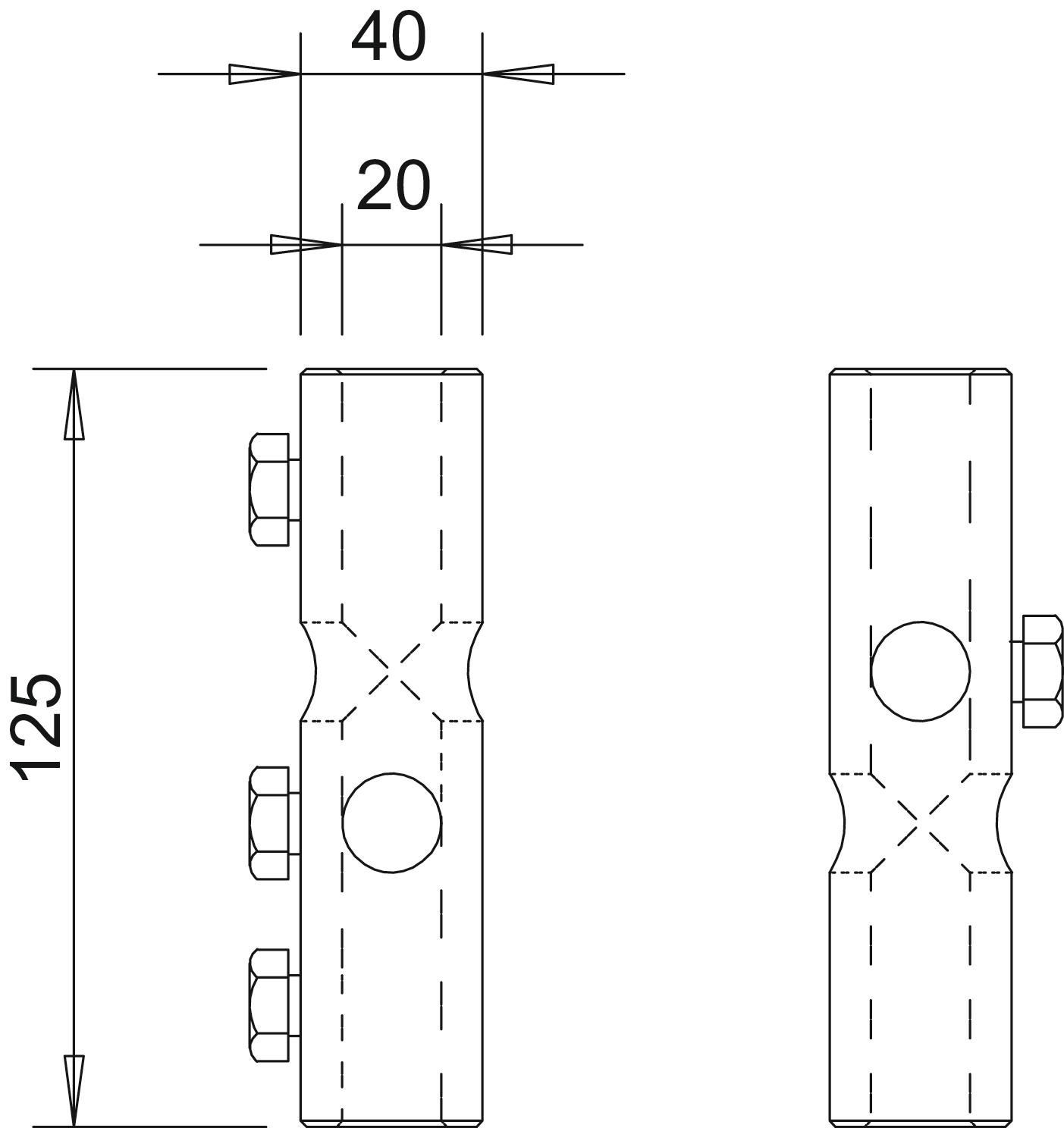

5408245 / 101 IDK
40 mm
20 mm
125 mm
Product description
Product description
• DK connector link for installing insulating rods

• With M10 bolts
Technical data

Technical data

Connection Round conductor
Dimension 20mm
Dimension d min. 40 mm
Dimension d Ø 20 mm
Dimension L 125 mm
Length 125 mm
Material Aluminium
All types

All types

Types Dimension d min. Dimension d Ø Dimension L Item no. Quantity SSU
101 IDK 40 mm 20 mm 125 mm 5408245
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 101 IDK / 5408245 , 0.06MB , pdf
Download

101 IDK / 5408245
