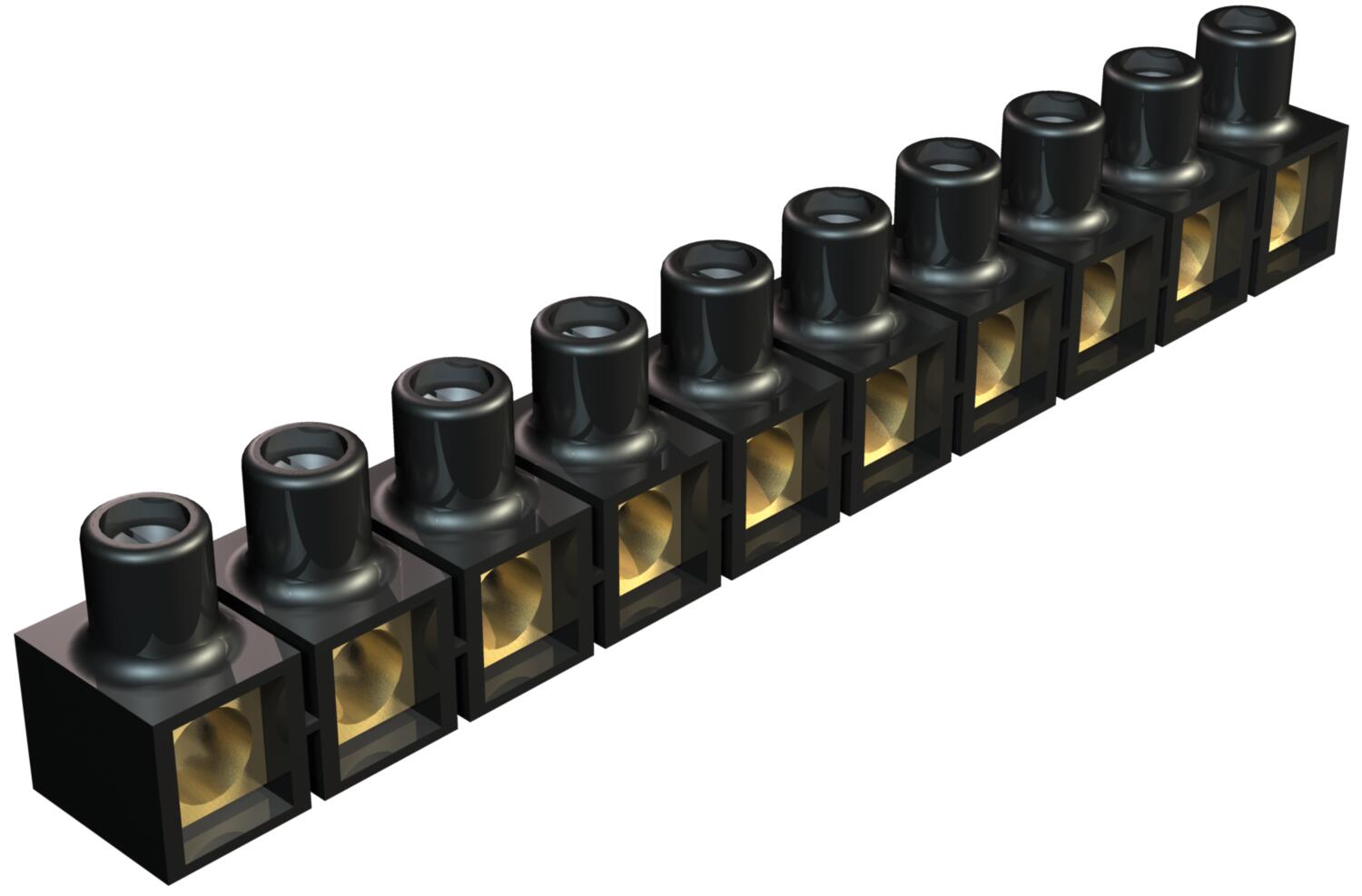

Dolü branch terminals, open on both sides, 10-pole

Item no. 2055503 | EAN 4012195183914

2055503 / 71
10
10 mm²
380 V
Product description
Product description
Terminals made of brass, screws of steel, galvanised and transparently passivated, 10-pole, strip separable into individual terminals, open on both sides.
Captive upwards screw.
Nominal cross-section 10 ÷ mm².
Nominal voltage 380 V.
Max. connectable cross-sections per terminal: 3 x 10 mm², 4 x 6 mm².
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

Closing plate required no
Colour Black
Connectable conductor cross-section, single-wire, max. 10 mm²
Connectable conductor cross-section, single-wire, min. 6 mm²
Connection position Side
Cross-section Max. connectable cross-sections per terminal: 3 x 10 mm², 4 x 6 mm² mm²
Dimension 10mm²

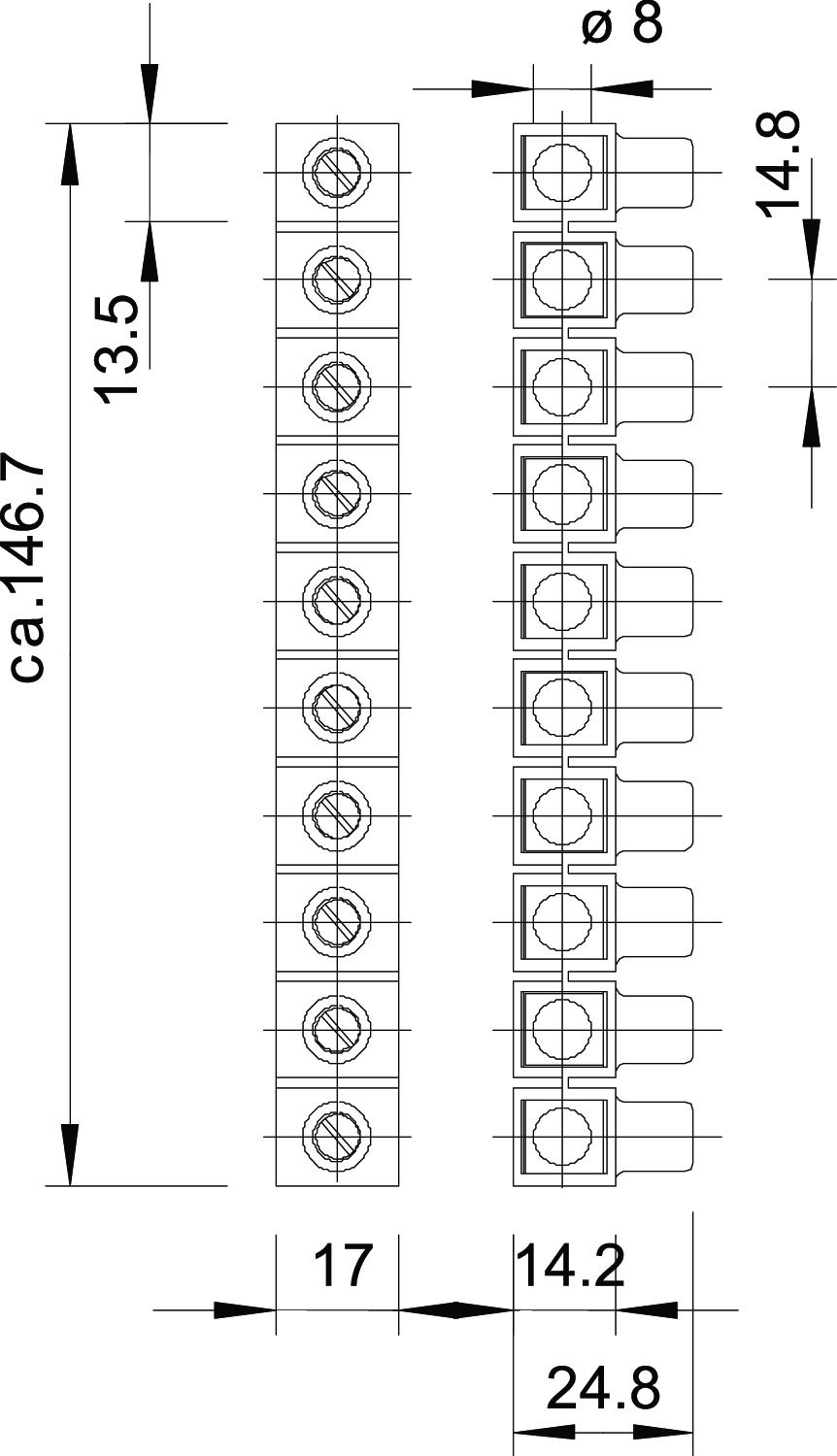

Drill hole spacing, centre 14,8 mm
Explosion-tested version no
Height 24,8 mm
Insulation material Thermoplast
Length 146,7 mm
Material Polypropylene
No. of terminals 10
Nominal cross-section, min. 10 mm²
Nominal current 24 A
Nominal voltage 380 V
Number of screwless terminals per pole 1
Pole number 10
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors no
Transparent no
Version of electrical connection 1 Screw connection
Width 17 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal voltage Item no. Quantity SSU
71 10 10 mm² 380 V 2055503
10 piece
