Dolü branch terminals, open on one side

Item no. 2055201 | EAN 4012195183853

2055201 / 70 S
12
2.5 mm²
250 V
Product description

Product description

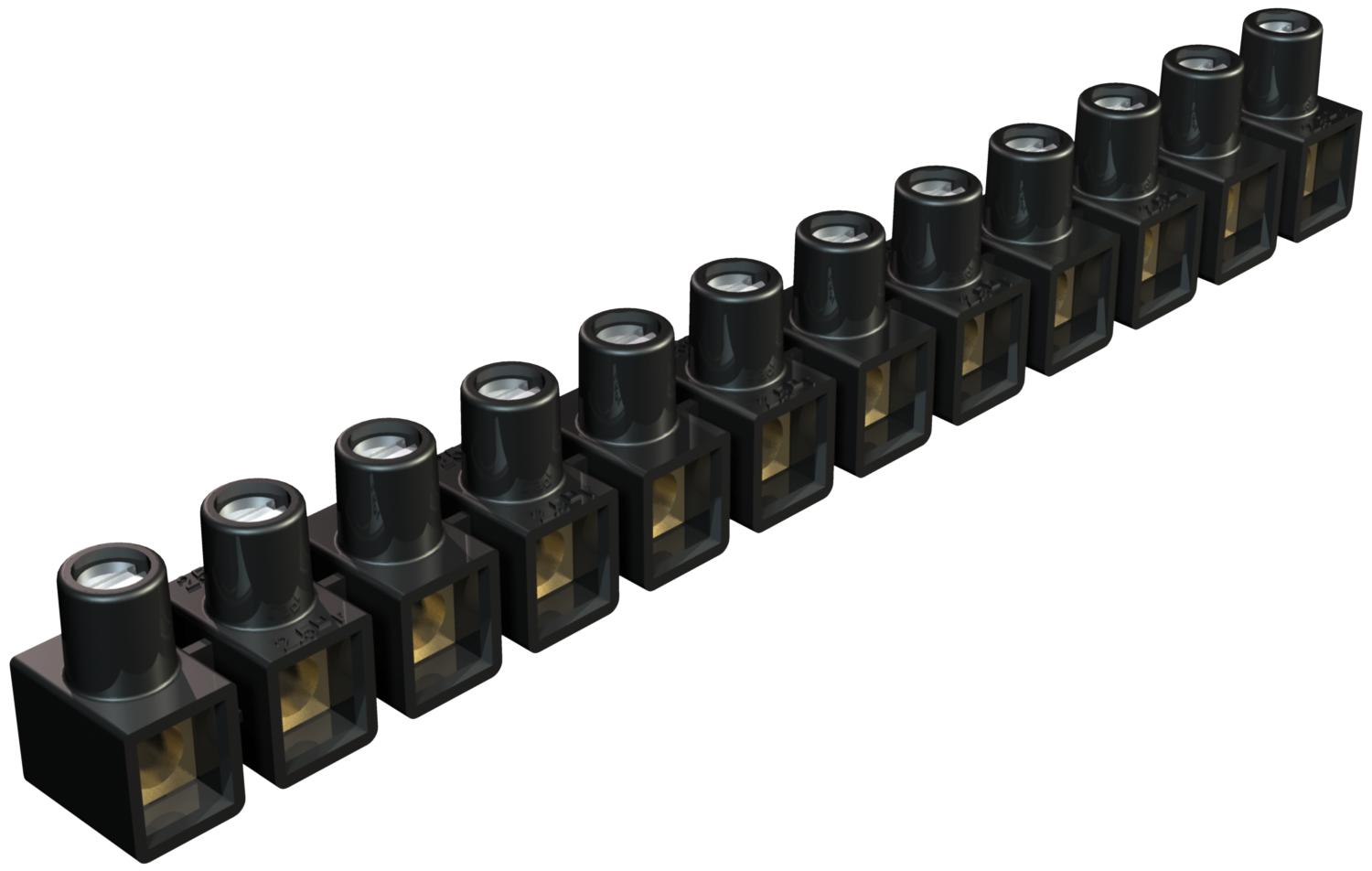

Terminals made of brass, screws of steel, galvanised and transparently passivated, 12-pole, strip separable into individual terminals, only open on one side.
Closed on one side, captive upwards screw.
Nominal cross-section 2.5 ÷ mm².
Nominal voltage 250 V.
Nominal current 24 A.
Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm².

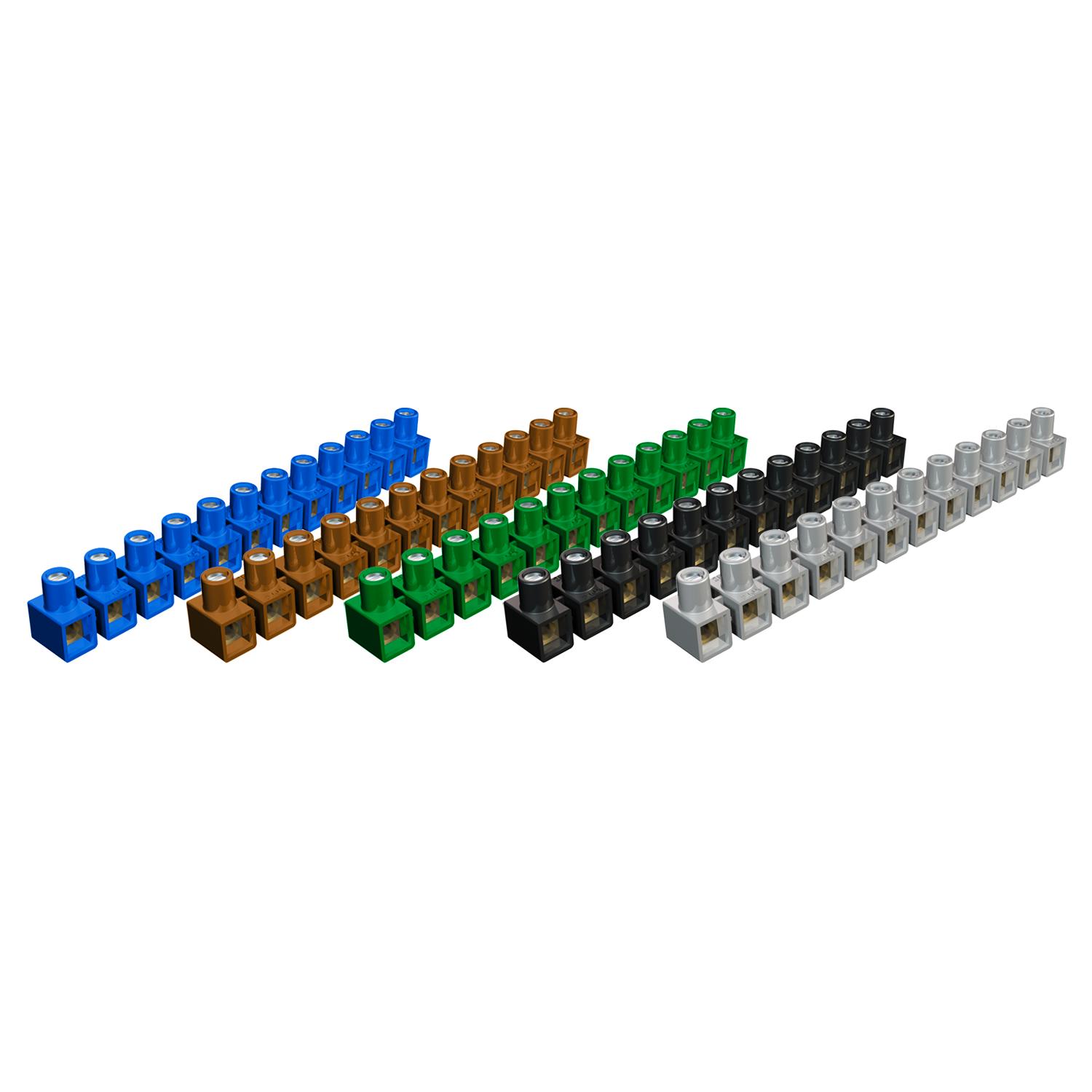

Delivery sorted by colour: 3 black, 2 blue, 3 yellow-green, 1 brown and 1 grey strip in each packaging unit.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 850 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Installation electrotechnical expertise
Technical data

Technical data

Closing plate required no
Colour (sorted)
Connectable conductor cross-section, single-wire, max. 2,5 mm²
Connectable conductor cross-section, single-wire, min. 1 mm²
Connection position Side
Cross-section Max. connectable cross-sections per terminal: 4 x 2.5 mm², 5 x 1.5 mm² or 6 x 1 mm² mm²
Dimension 2,5mm²

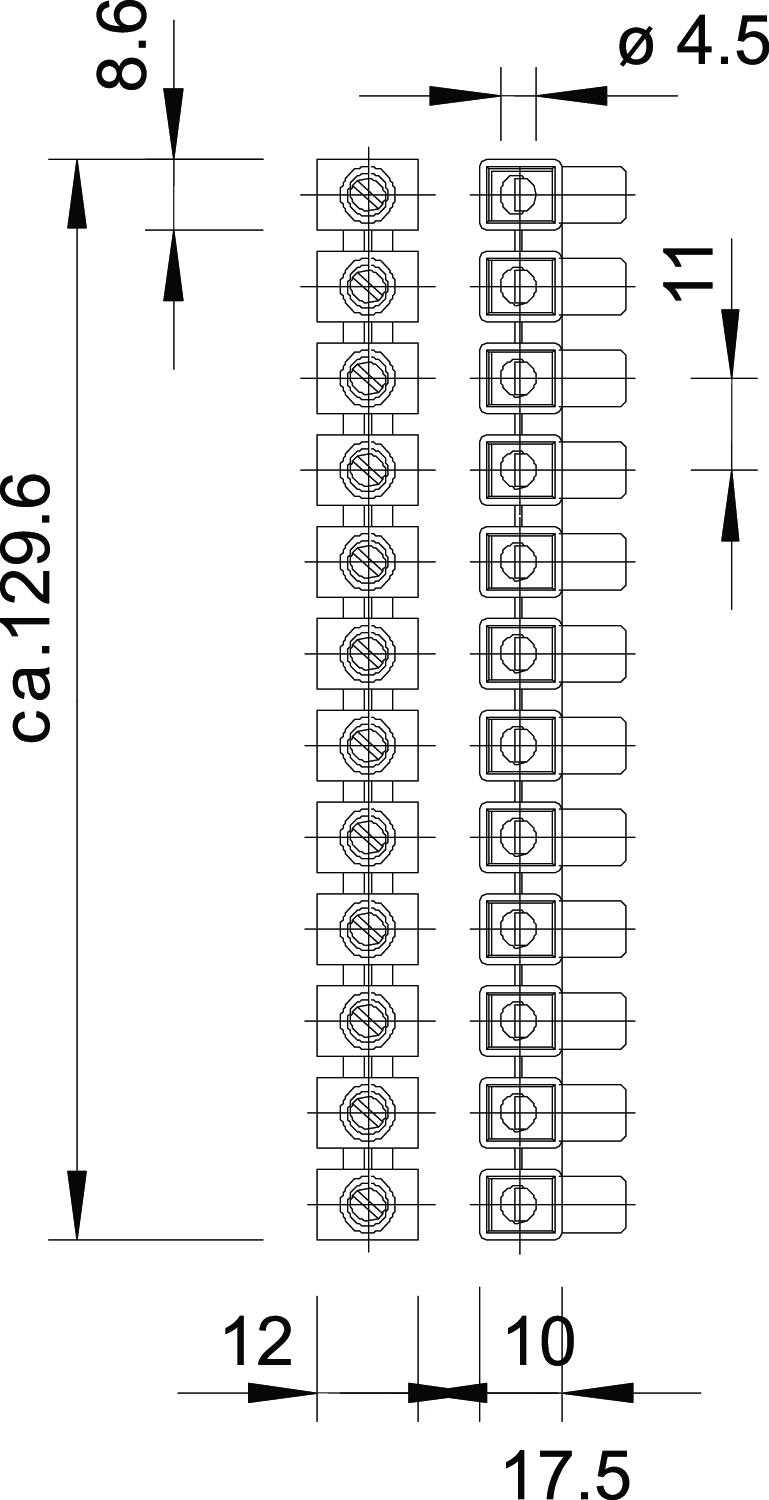

Drill hole spacing, centre 11 mm
Explosion-tested version no
Halogen-free yes
Height 17,5 mm
Insulation material Thermoplast
Length 129,6 mm
Material Polyamide
No. of terminals 12
Nominal cross-section, min. 2,5 mm²
Nominal current 24 A
Nominal voltage 250 V
Number of screwless terminals per pole 1
Pole number 12
Suitable for flexible conductors yes
Suitable for multi-wire conductors yes
Suitable for solid conductors no
Transparent no
Version of electrical connection 1 Screw connection
Width 12 mm
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal voltage Item no. Quantity SSU
70 S 12 2.5 mm² 250 V 2055201
10 piece
