- Product description
-

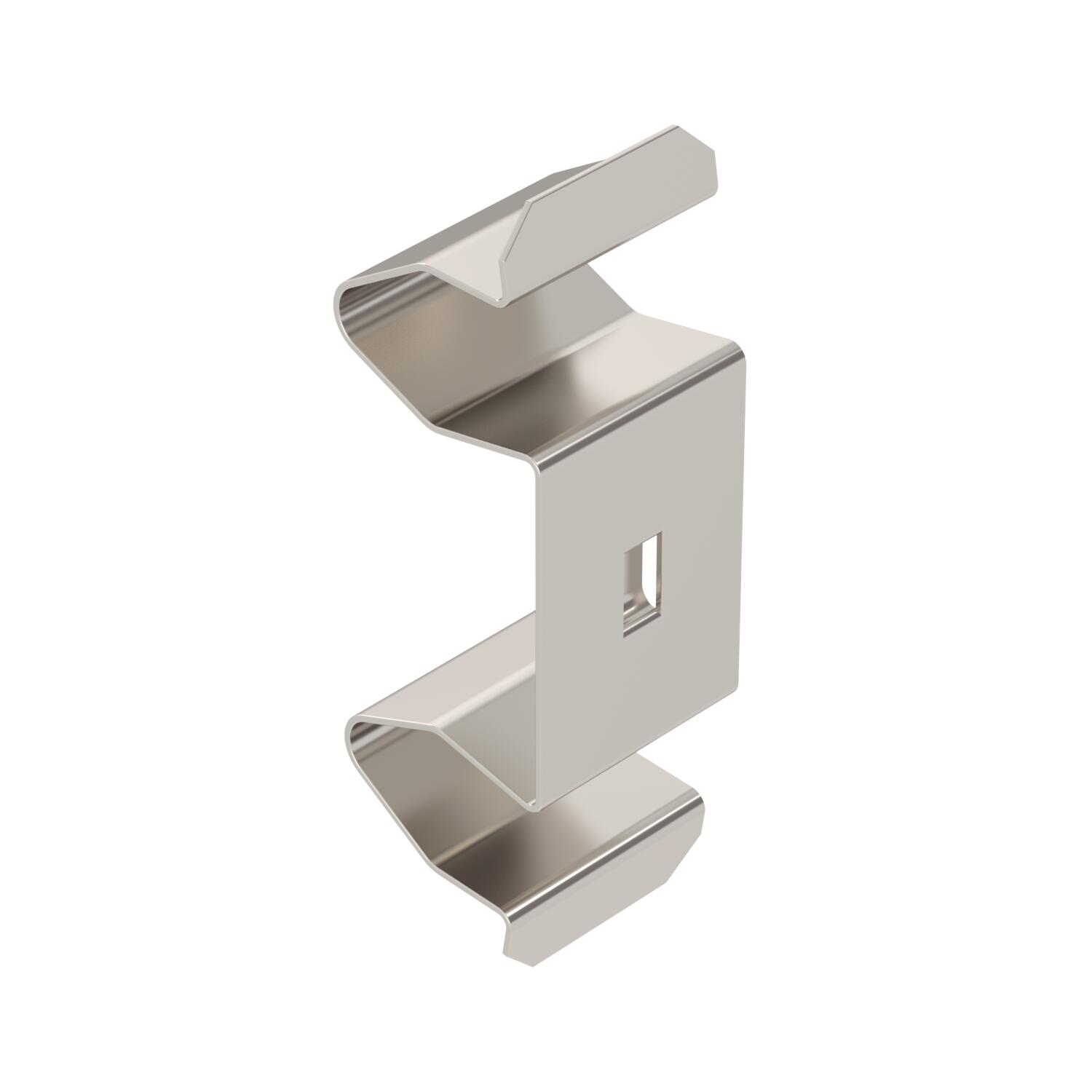

Product descriptionDouble clamp to mount fittings on lockable or screw-on cable trays.
- Technical data
-
Technical data

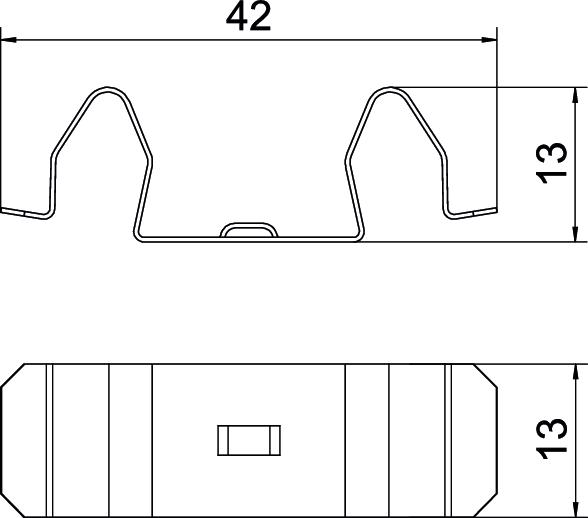

Adjustable connector, horizontal no Articulated connector, vertical no Colour stainless steel Connection type Screwless connector Dimension 42x13x13 Height 13 mm Length 42 mm Maintain electrical functions no Material Stainless steel Material thickness 0,4 mm Permitted temperature range, max. 120 °C Permitted temperature range, min. -20 °C Profile shape Miscellaneous Rustproof steel, pickled yes Suitable for cable ladder no Suitable for cable tray yes Suitable for mesh cable tray no Suitable for profile shapes Miscellaneous Surface Bright, treated Width 13 mm - All types
- Downloads
-
Data sheet DOP A2 / 6035998 , 0.19MB , pdfEU declaration of conformity DOP A2 / 6035998 , 0.10MB , pdfUK Declaration of Conformity DOP A2 / 6035998 , 0.14MB , pdfSelection aid Auswahlhilfe Kabelrinnen, schraubbar , 2.17MB , pdfSelection aid Auswahlhilfe Kabelrinnen, Magic , 0.25MB , pdfMounting instructions Rastbare Kabelrinnensysteme Magic , 11.60MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
