Double-flange anchor 35 | 6
morepic-1

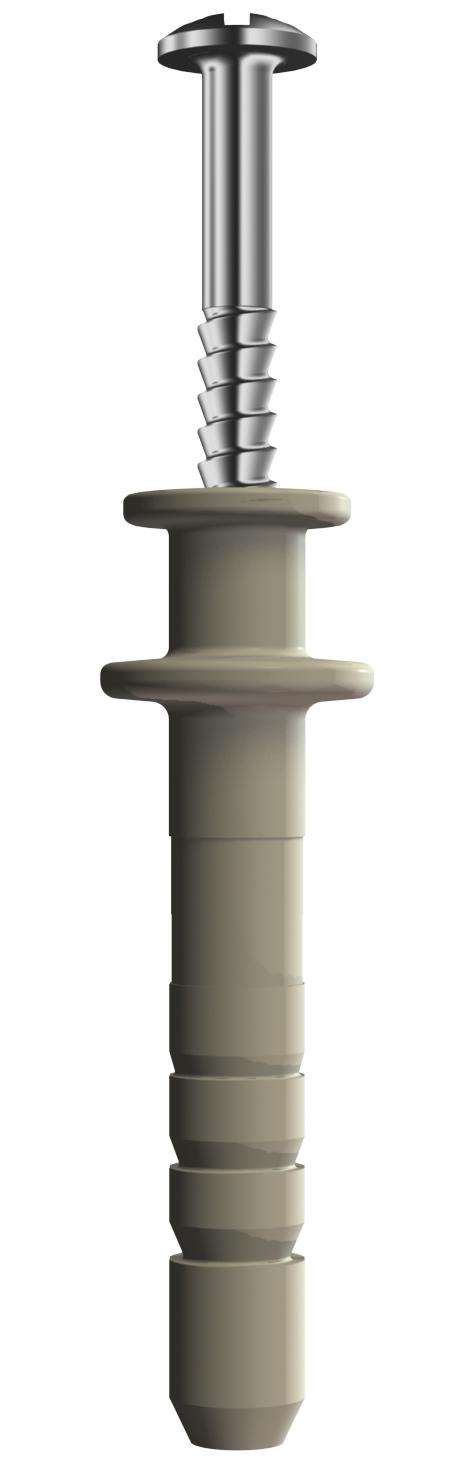

Double-flange anchor

Item no. 2347407 | EAN 4012195448099

2347407 / 910 DF 6x35
35 mm
6 mm
Product description

Product description

Knock-in anchor: steel, tempered, electrogalvanised and transparently passivated.
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Grey-white; RAL 9002
Diameter 6 mm
Dimension 6x35mm
Drill hole depth 40 mm
Drill hole diameter, min. 6 mm
Halogen-free yes
Length 35 mm
Material Polyamide
Screw system Philips PH
With bolts yes
All types

All types

Types Length Diameter Item no. Quantity SSU
910 DF 6x35 35 mm 6 mm 2347407
100 piece
Downloads

Download

Download

REACH Declaration of conformity 910 DF 6x35 / 2347407 , 0.12MB , pdf
Download
RoHS Declaration of conformity 910 DF 6x35 / 2347407 , 0.12MB , pdf
Download

910 DF 6x35 / 2347407
