Double ISO nail clip

Item no. 2213117 | EAN 4012195213017

Item no. / Types	2213117 / 3030 2

for cable diameter, min.	7 mm

for cable diameter, max.	11 mm

For nail diameter	2,0

Product description

Product description

Nail clips to fasten two cables, suitable for steel nails 2 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	7-11mm
Dimension B	9 mm
Dimension H	10,5 mm
Dimension L	27 mm
Dimension L1	14 mm
Double clip	yes
for cable diameter, max.	11 mm
for cable diameter, min.	7 mm

For nail diameter	2,0
Halogen-free	yes
Hardened	no
Impact-resistant	no
Material	Polystyrene
Pipe locking	no
Shape	Round (for round conductor)
With nail	no

All types

All types

Types	for cable diameter, min.	for cable diameter, max.	For nail diameter	Item no.	Quantity	SSU
3030 2	7 mm	11 mm	2,0	2213117	piece	100 piece

Downloads

Data sheet 3030 2 / 2213117 , 0.21MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

EU declaration of conformity 3030 2 / 2213117 , 0.06MB , pdf

Download

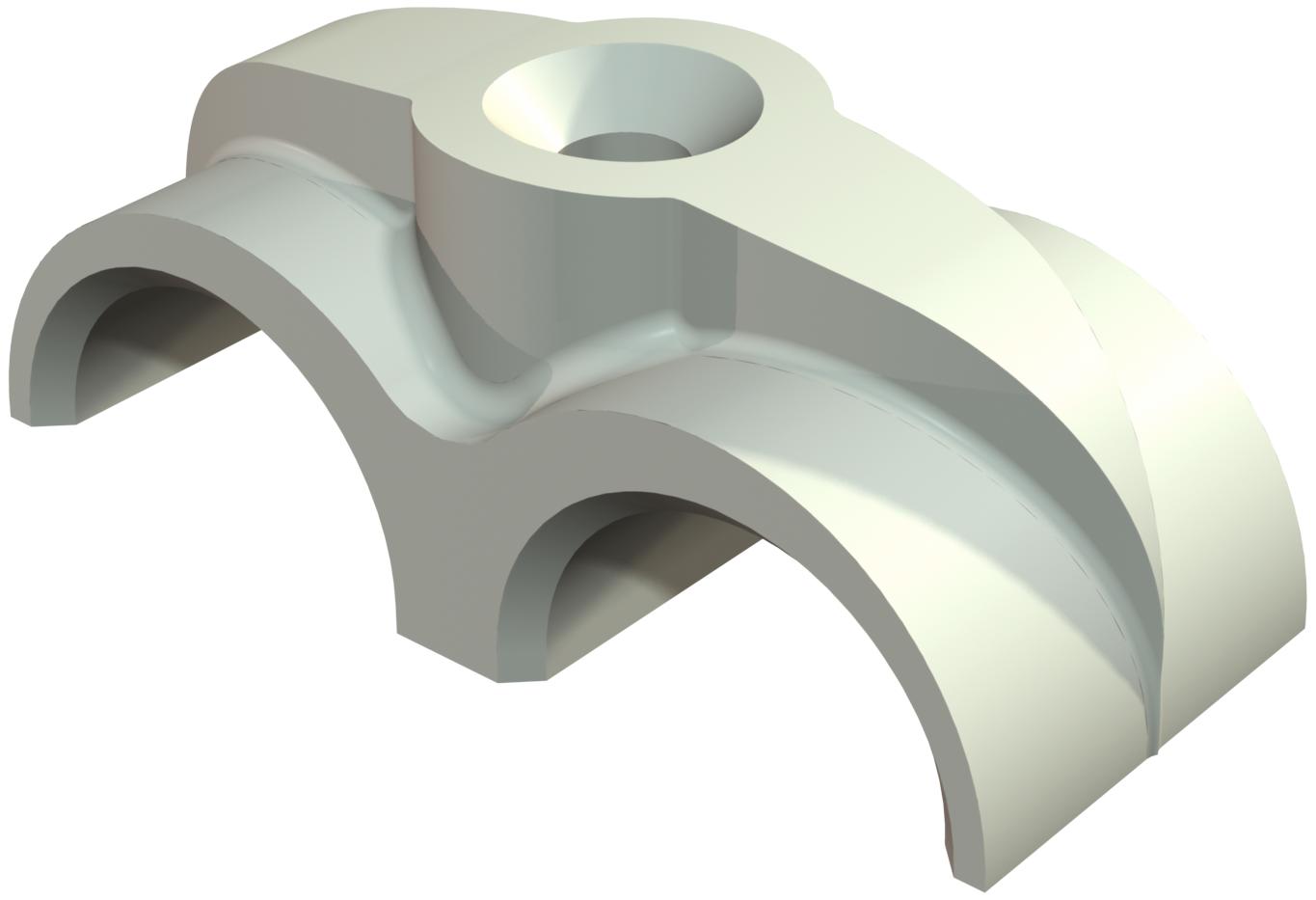

Product graphic 3030 2 / 2213117, 37.88 kB, jpg

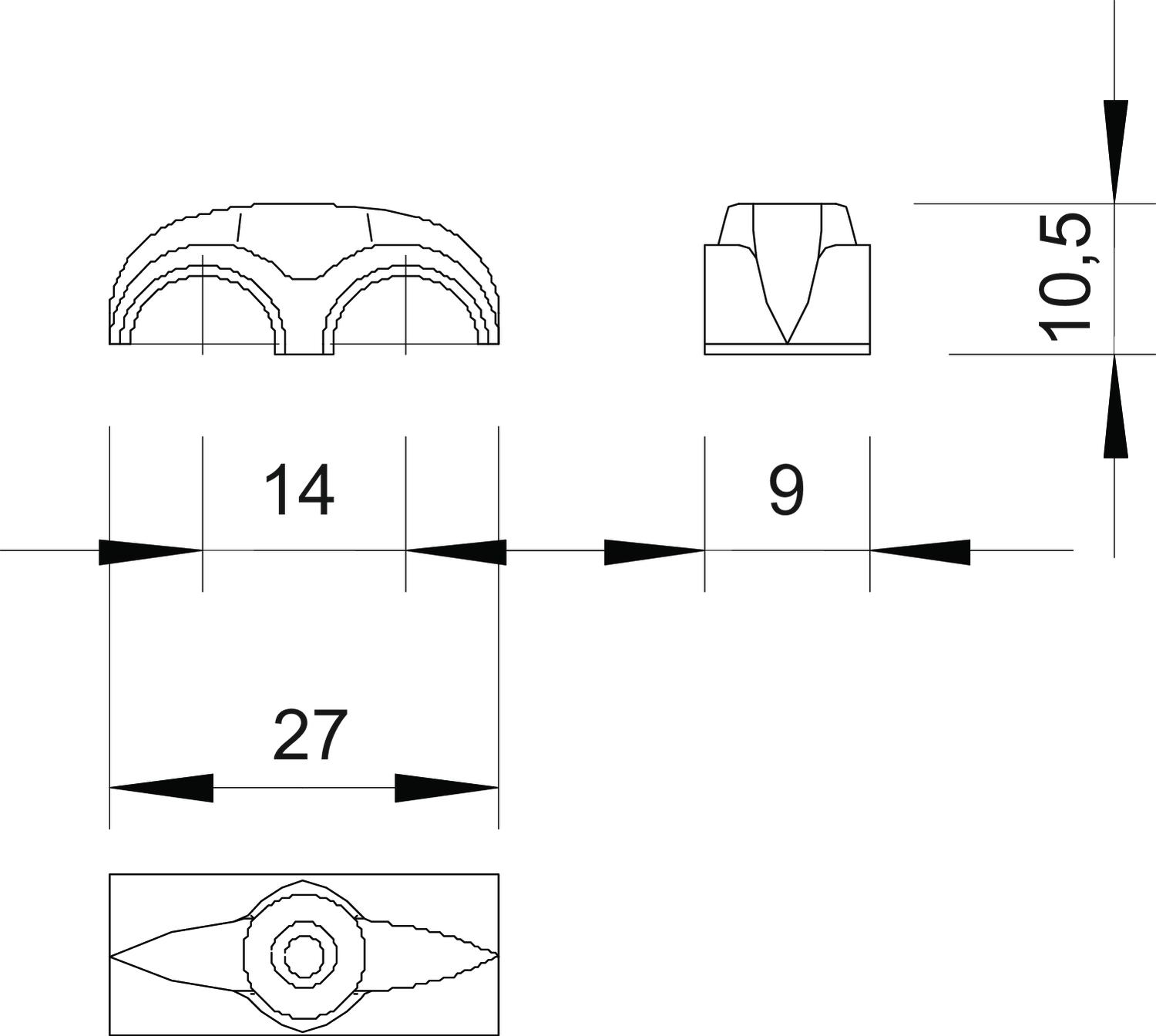

Scale drawing 3030 2 / 2213117, 66.41 kB, jpg

3030 2 / 2213117
