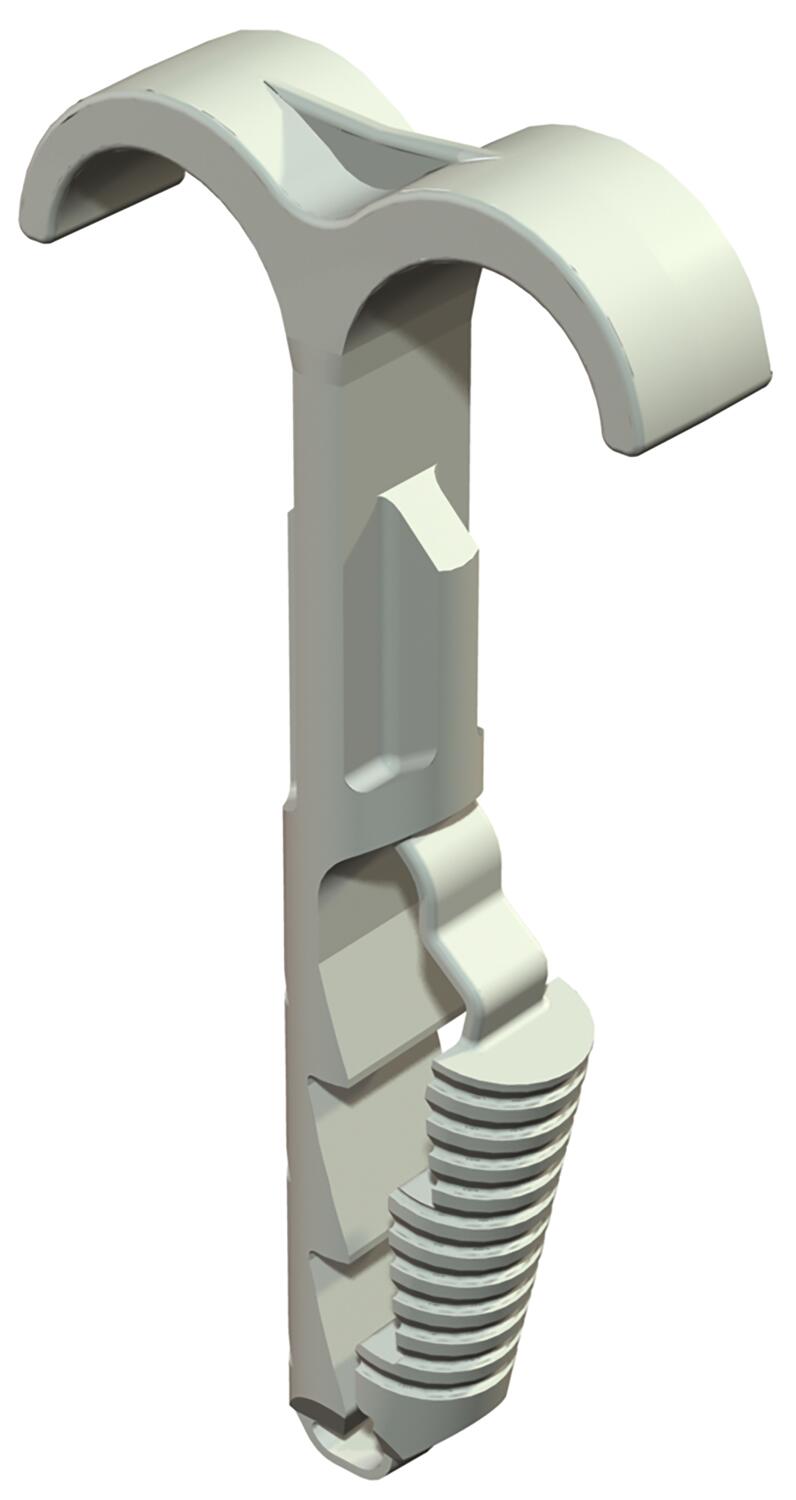

Double push-fit clip
Item no. 2197855 | EAN 4012195742630
- Product description
-
Product descriptionThese push-fit clips are used when installing cables and pipes on walls and ceilings and when running flexible pipes on concrete and in the screed. The double push-fit clips can be used instead of nail clips in concrete and aerated concrete. The advantage of the push-fit clips is that they only have to be pushed into the drilled hole. Anchors and bolts are not needed.
-
- Technical data
-
Technical data
Breaking load for concrete B25 90 N Clamping range D, max. 12 mm Clamping range D, min. 4 mm Colour Light grey; RAL 7035 Dimension 4-12mm Drill hole depth 40 mm Drill hole diameter, min. 6 mm Fastening type Plug fastening Halogen-free yes Material Polyamide Number of cables/pipes 2 Version for Two-lobe - All types
- Downloads
-
Data sheet 1974 2X4-12 / 2197855 , 0.18MB , pdfEU declaration of conformity 1974 2X4-12 / 2197855 , 0.06MB , pdfREACH Declaration of conformity 1974 2X4-12 / 2197855 , 0.12MB , pdfRoHS Declaration of conformity 1974 2X4-12 / 2197855 , 0.12MB , pdf
