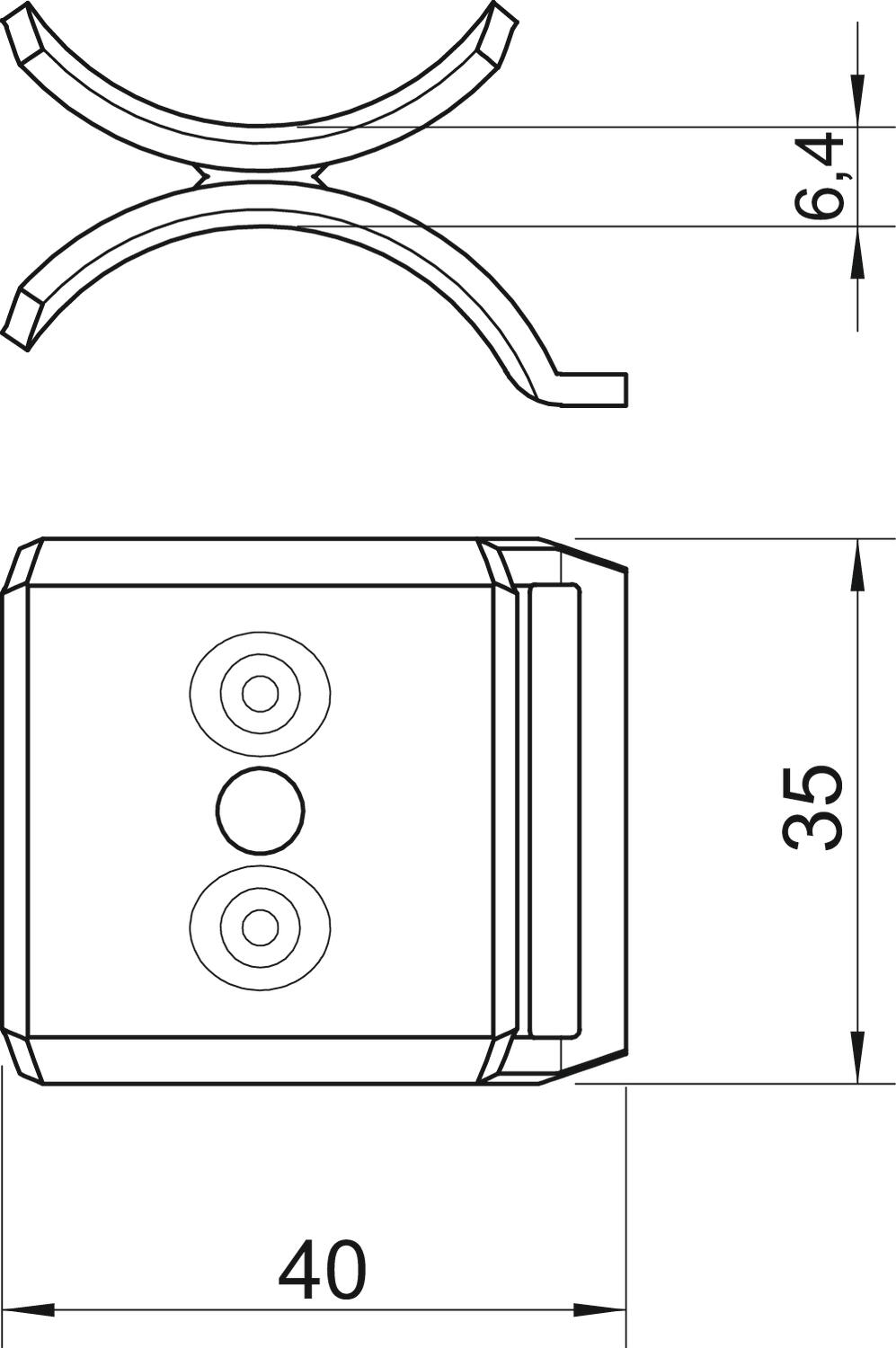

Double trough, metal A2 40 | 6.4 | 35 | 28 | 34
morepic-1 morepic-2

Double trough, metal A2

Item no. 1196601 | EAN 4012195847663

35 mm
Product description
Product description
Metallic double trough as intermediate layer between two or three cables within a clamp clip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for flat and U-iron from 4–12 mm
  • Clamp clip for C profile rail, slot width 11–12 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Clamp clip for angle irons with 40 mm leg length
Technical data

Technical data

Clamping range D, max. 34 mm
Clamping range D, min. 28 mm
Counter-trough/clip version Double trough
CO₂ Footprint (GWP) Cradle-to-Gate 0,319 kg CO₂e / 1 Piece
Dimension 28-34mm
Dimension B 40 mm
Dimension H 6,4 mm
Dimension L 35 mm
Material Stainless steel
Suitable for max. cable diameter 34 mm
Surface Bright, treated
All types

All types

Types Dimension B Dimension H Dimension L Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
2058 M2 22 A2 28 mm 5.4 mm 35 mm 16 mm 22 mm 1196597
50 piece
2058 M2 28 A2 34 mm 5.4 mm 35 mm 22 mm 28 mm 1196599
50 piece
2058 M2 34 A2 40 mm 6.4 mm 35 mm 28 mm 34 mm 1196601
50 piece
