Double trough, metal DD 17.6 | 5.4 | 35 | 8 | 12
morepic-1 morepic-2

Double trough, metal DD

Item no. 1199706 | EAN 4012195441434

35 mm
Product description
Product description

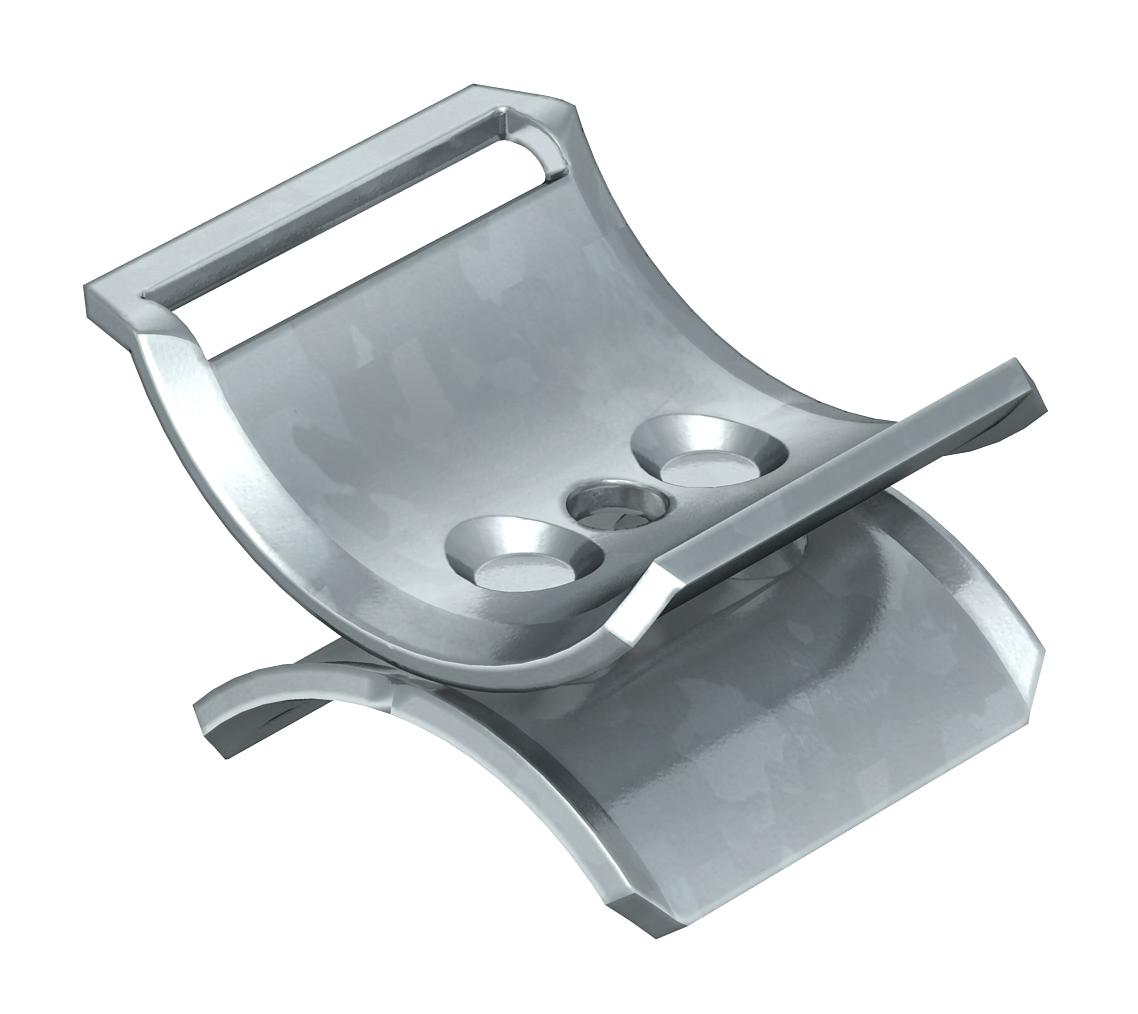

Metallic double trough as intermediate layer between two or three cables within a clamp clip.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for flat and U-iron from 4–12 mm
  • Clamp clip for C profile rail, slot width 11–12 mm
  • Clamp clip for C profile rail, slot width 16–17 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Clamp clip for angle irons with 40 mm leg length
Technical data

Technical data

Clamping range D, max. 12 mm
Clamping range D, min. 8 mm
Counter-trough/clip version Double trough
CO₂ Footprint (GWP) Cradle-to-Gate 0,0513 kg CO₂e / 1 Piece
Dimension 8-12mm

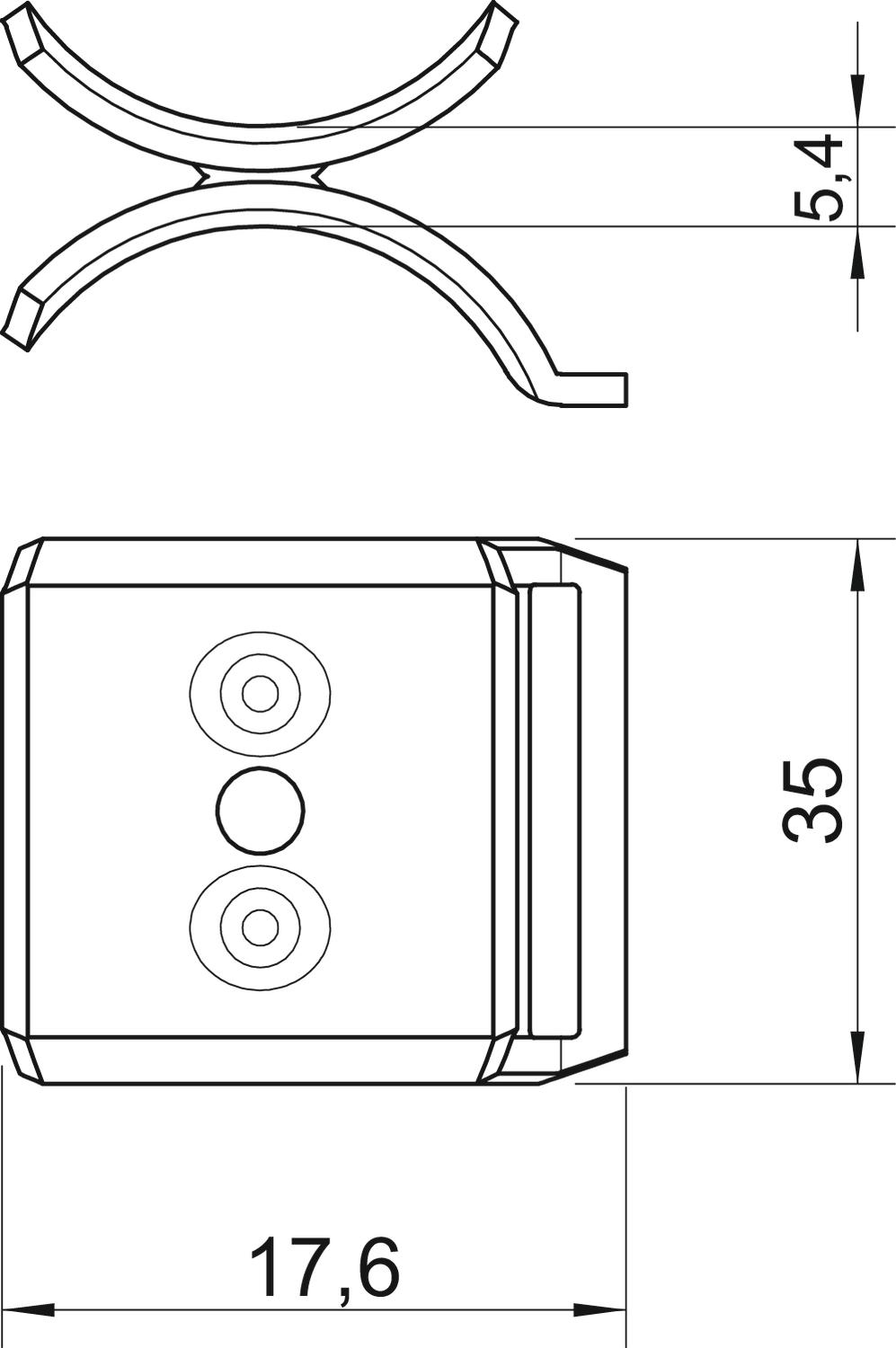

Dimension B 17,6 mm
Dimension H 5,4 mm
Dimension L 35 mm
Material Steel
Suitable for max. cable diameter 12 mm
Surface Strip galvanised zinc/aluminium, Double Dip
All types

All types

Types Dimension B Dimension H Dimension L Clamping range D, min. Clamping range D, max. Item no. Quantity SSU
2058 M2 12 DD 17.6 mm 5.4 mm 35 mm 8 mm 12 mm 1199706
100 piece
2058 M2 16 DD 21.5 mm 5.4 mm 35 mm 12 mm 16 mm 1199714
50 piece
2058 M2 22 DD 28 mm 5.4 mm 35 mm 16 mm 22 mm 1199722
50 piece
2058 M2 28 DD 34 mm 5.4 mm 35 mm 22 mm 28 mm 1199730
50 piece
2058 M2 34 DD 40 mm 6.4 mm 35 mm 28 mm 34 mm 1199749
50 piece
2058 M2 40 DD 46 mm 6.4 mm 35 mm 34 mm 40 mm 1199757
50 piece
