Downpipe clip for routing Rd 8−10 mm behind pipe Alu | Aluminium
morepic-1 morepic-2 video-1

Downpipe clip for routing Rd 8−10 mm behind pipe Alu

Item no. 5351359 | EAN 4012195890652

Aluminium
Product description
Product description

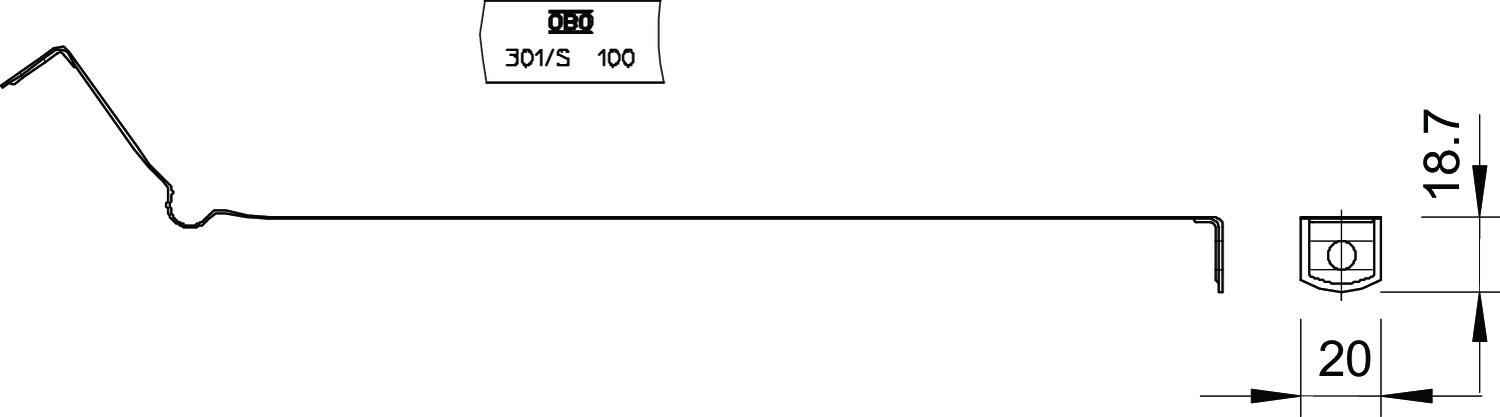

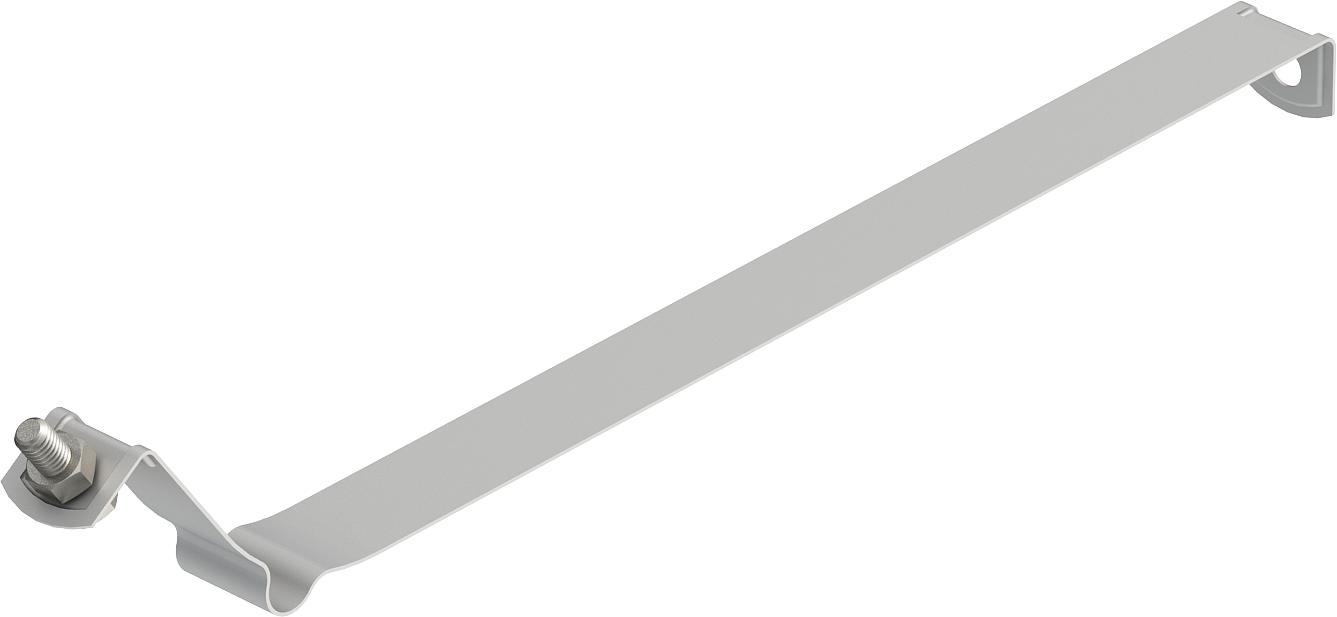

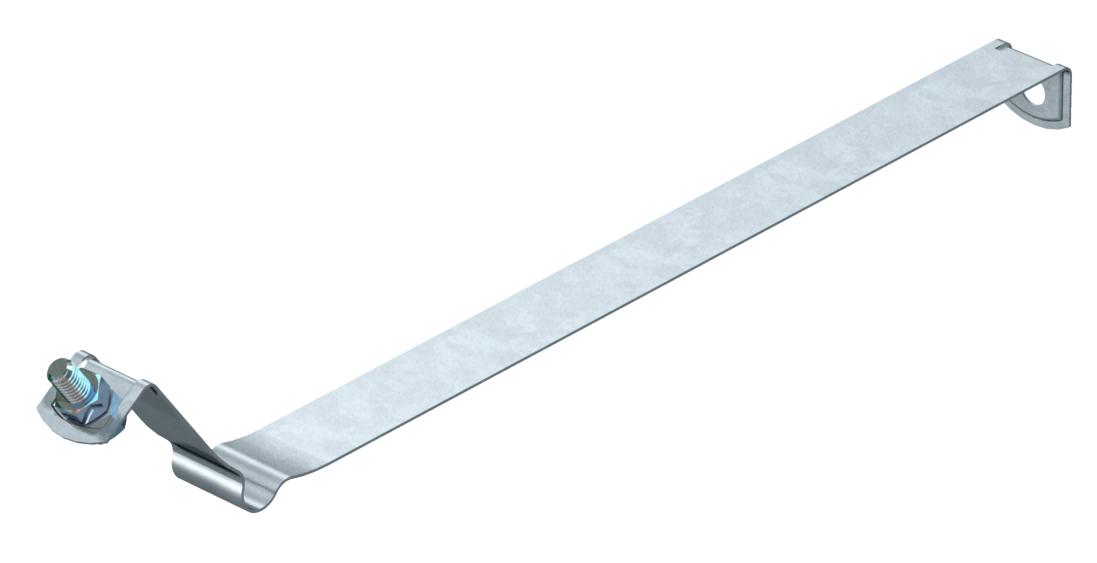

301/S...: Downspout clip for routing round conductor immediately behind downspout

• With beading
• For round conductor Rd 8-10
• Including hex-head screw M6 x 20 and nuts M6
Technical data

Technical data

Bimetal connector no
Clamping range, min. 100 mm
Dimension 100mm
explosion-proof no
Integrated round conductor guide no
Material Aluminium
All types

All types

Types Material Item no. Quantity SSU
301 S-AL-100 Aluminium 5351359
50 piece
301 S-AL-120 Aluminium 5351375
10 piece
Downloads

Download

Download
Download

EU declaration of conformity 301 S-AL-100 / 5351359 , 0.06MB , pdf
Download

301 S-AL-100 / 5351359
Download
