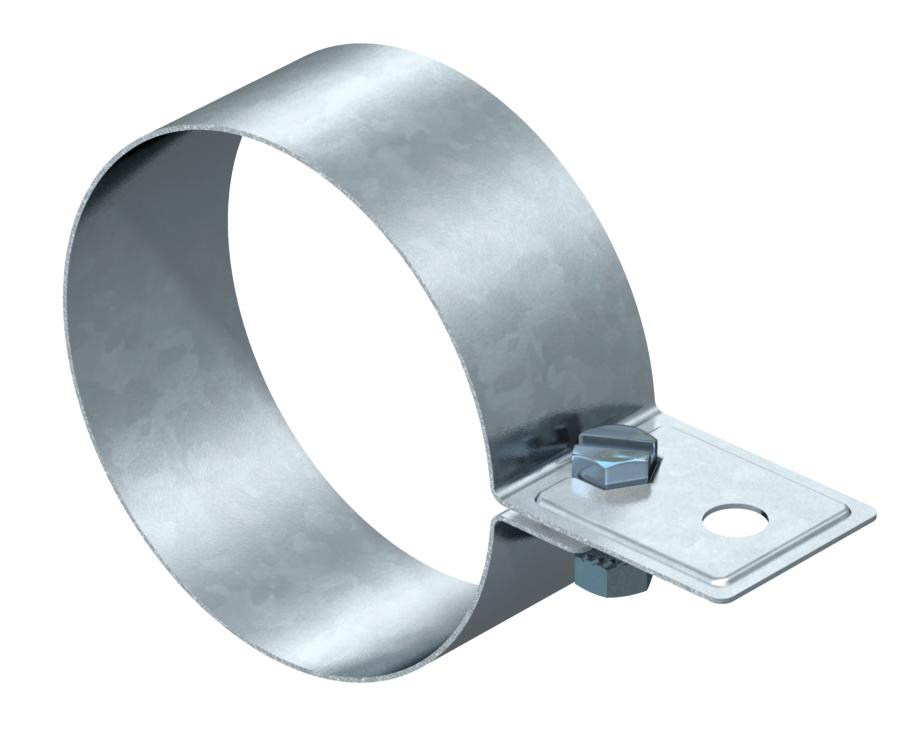

Downpipe clip FS

Item no. 5350085 | EAN 4012195425595

Steel
Product description

Product description

• To connect conductors and downpipes

• Similar to DIN 48818 C

• Strip galvanised (rd. 275 g/m² = 40 µm average value)

• With 1x hexagonal bolt M8 x 20

• With 1x hexagonal nut M8 and 1 stainless steel serrated washer

• With connection hole Ø 11 mm

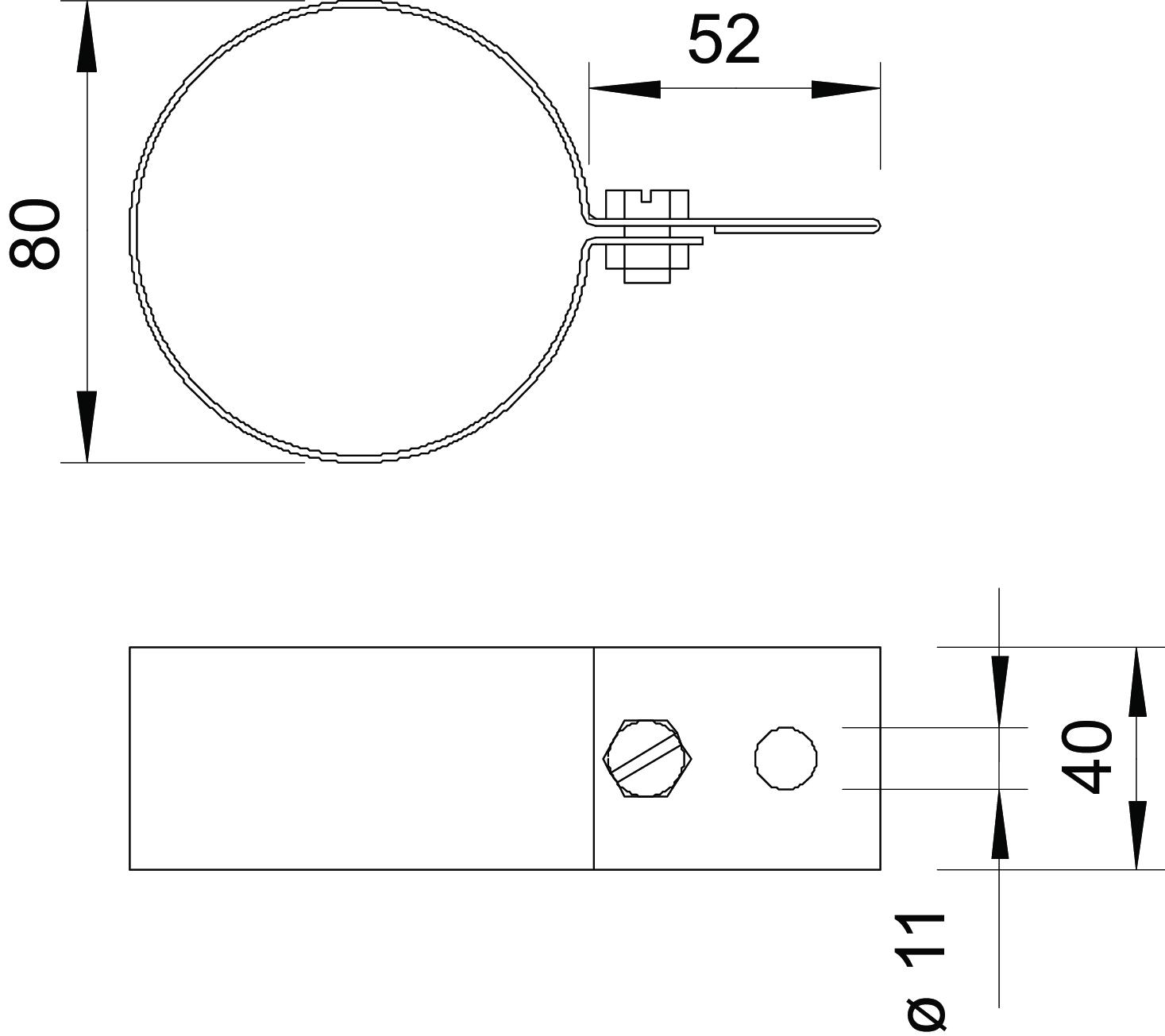

Technical data

Technical data

Bimetal connector no
Clamping range, min. 80 mm
Connection hole 11 mm
Dimension 80mm
Dimension d min. 80 mm
explosion-proof no
Integrated round conductor guide no
Material Steel
Surface Strip galvanized
All types

All types

Types Material Item no. Quantity SSU
301 DIN-80 Steel 5350085
10 piece
301 DIN-90 Steel 5350093
10 piece
301 DIN-100 Steel 5350107
10 piece
301 DIN-110 Steel 5350115
10 piece
301 DIN-120 Steel 5350123
10 piece
