Drilling screw DIN 7504 16

morepic-1

morepic-2

Drilling screw DIN 7504

Item no. 3176428 | EAN 4012195871156

Item no. / Types	3176428 / DIN 7504 N G

Length	16 mm

Product description

Product description

Self-tapping, with Philips.

Technical data

Technical data

Dimension	4,8x16mm
Head shape	Flat sphere
Material	Steel

Screw system	Phillips PH
Surface	Electrogalvanized
Thread diameter ST	4,8

Dimensions

Dimension D	4,8 mm
Dimension L	16 mm

Length	16 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
DIN 7504 N G	16 mm	3176428	piece	100 piece

Downloads

Data sheet DIN 7504 N G / 3176428 , 0.18MB , pdf

Catalogue Fastening materials , 19.78MB , pdf

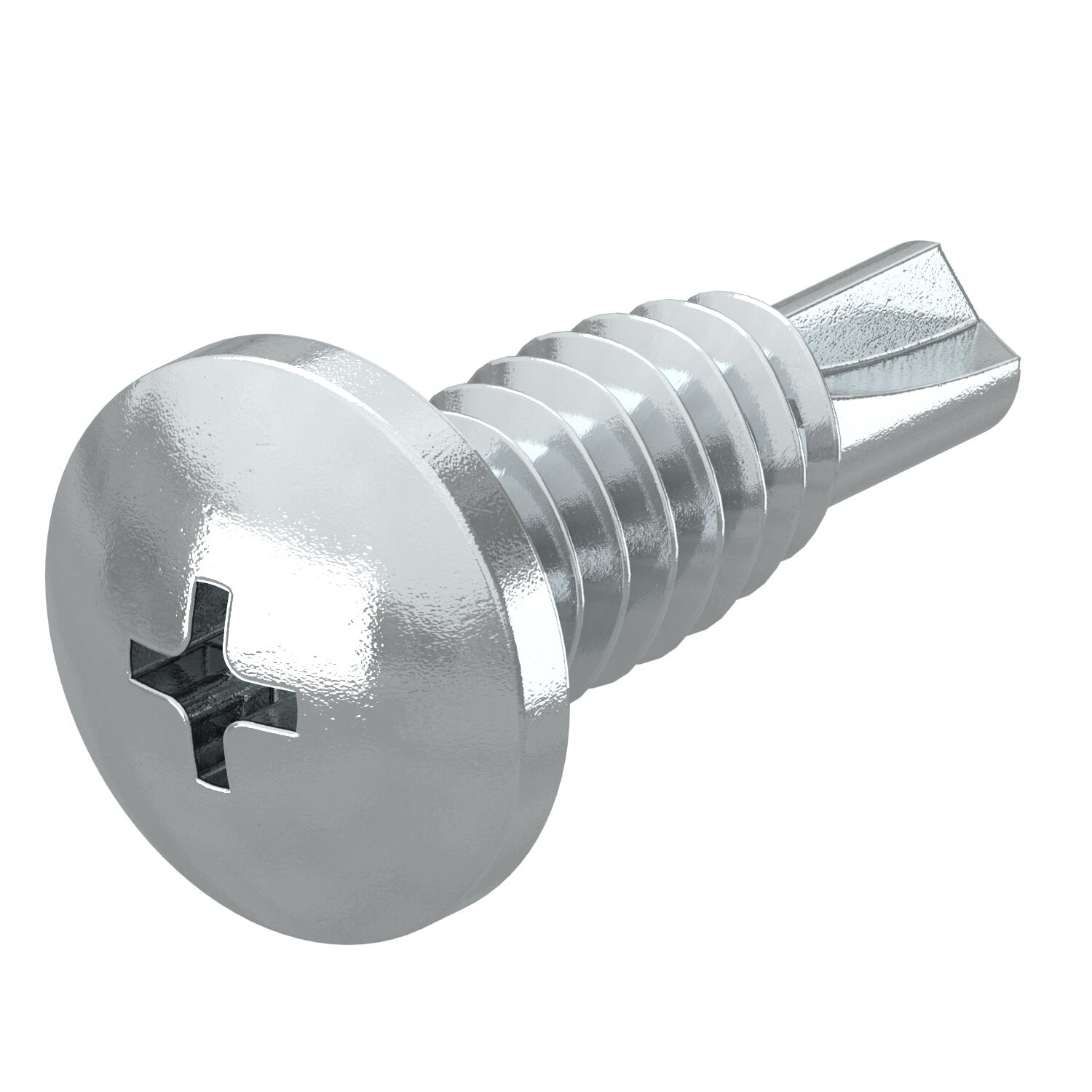

Product graphic DIN 7504 N G / 3176428, 101.39 kB, jpg

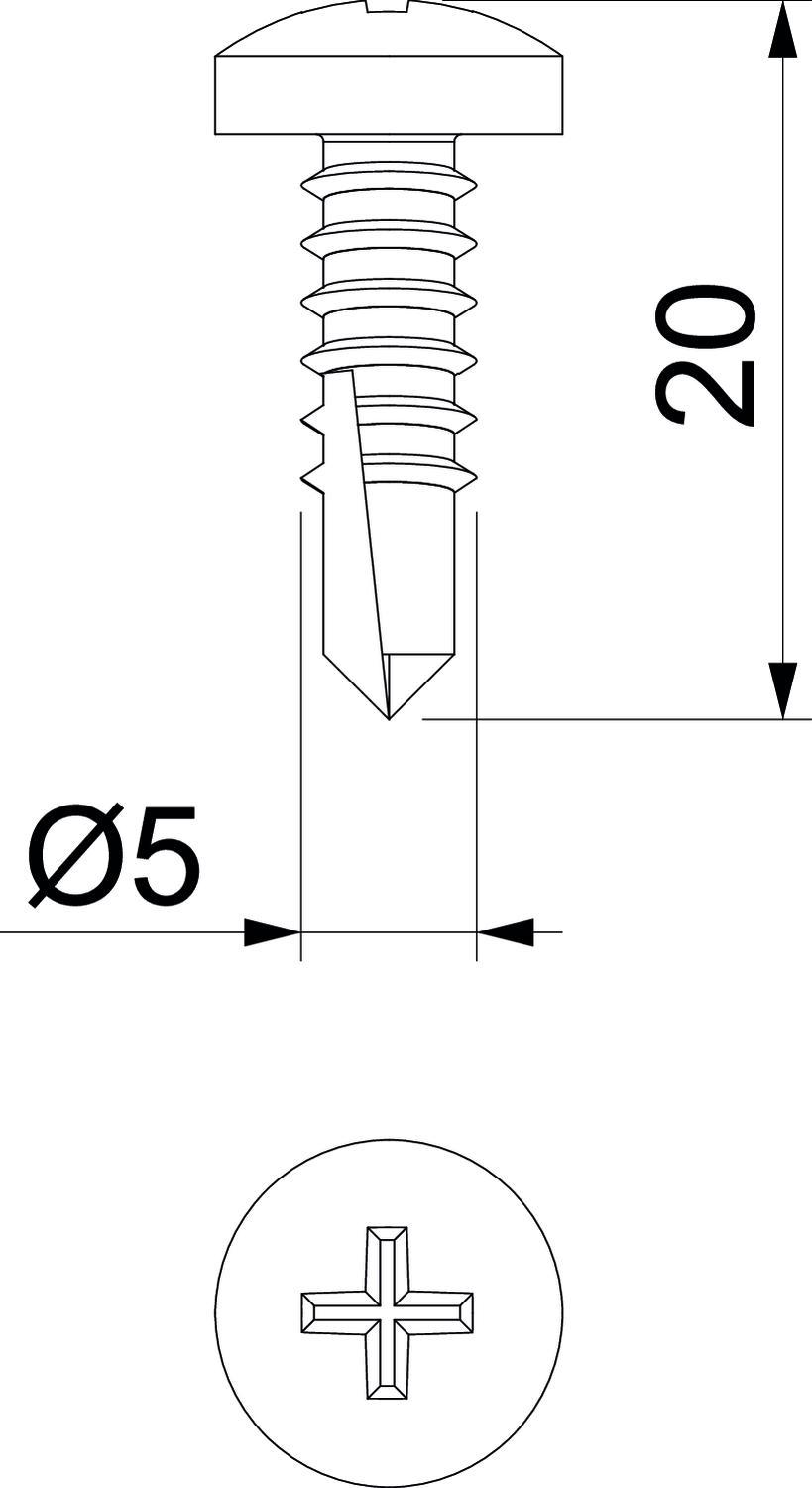

Scale drawing DIN 7504 N G / 3176428, 52.74 kB, jpg

DIN 7504 N G / 3176428
