Driving head for ST, BP and OMEX earth rods

Item no. 3042251 | EAN 4012195243199

Item no. / Types

for earth rods

Product description

Product description

• Suitable for ST, BP and OMEX systems
• Hardened
• DIN 48852, Form SP

Technical data

Technical data

Dimension	25mm
Earther diameter	25 mm

for earth rods	25 mm
Material	Steel

All types

All types

Types	for earth rods	Item no.	Quantity	SSU
1820 20	20 mm	3042200	piece	1 piece
1820 25	25 mm	3042251	piece	1 piece

Downloads

Data sheet 1820 25 / 3042251 , 0.13MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity 1820 25 / 3042251 , 0.06MB , pdf

Download

REACH Declaration of conformity 1820 25 / 3042251 , 0.12MB , pdf

Download

RoHS Declaration of conformity 1820 25 / 3042251 , 0.12MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

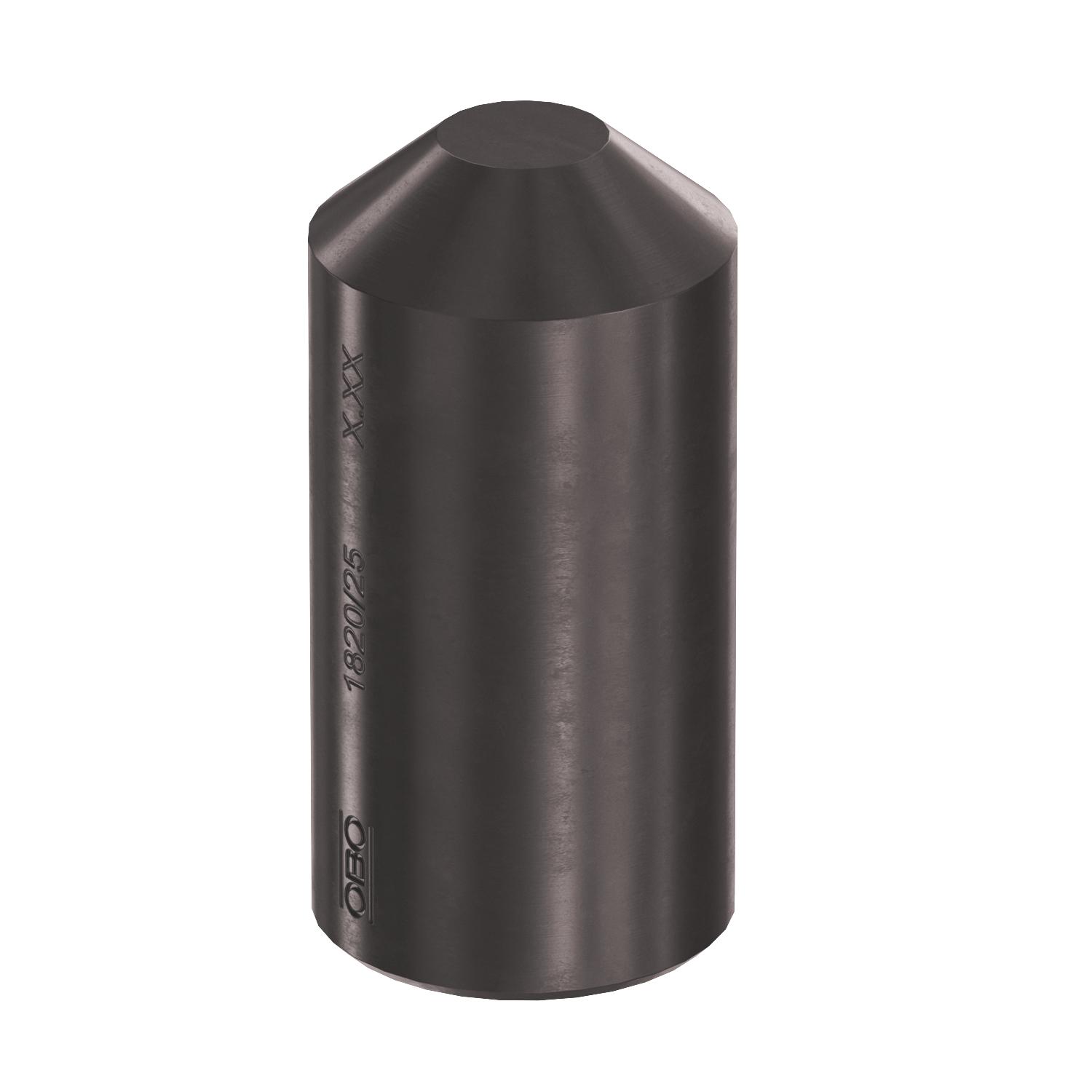

Product graphic 1820 25 / 3042251, 54.71 kB, jpg

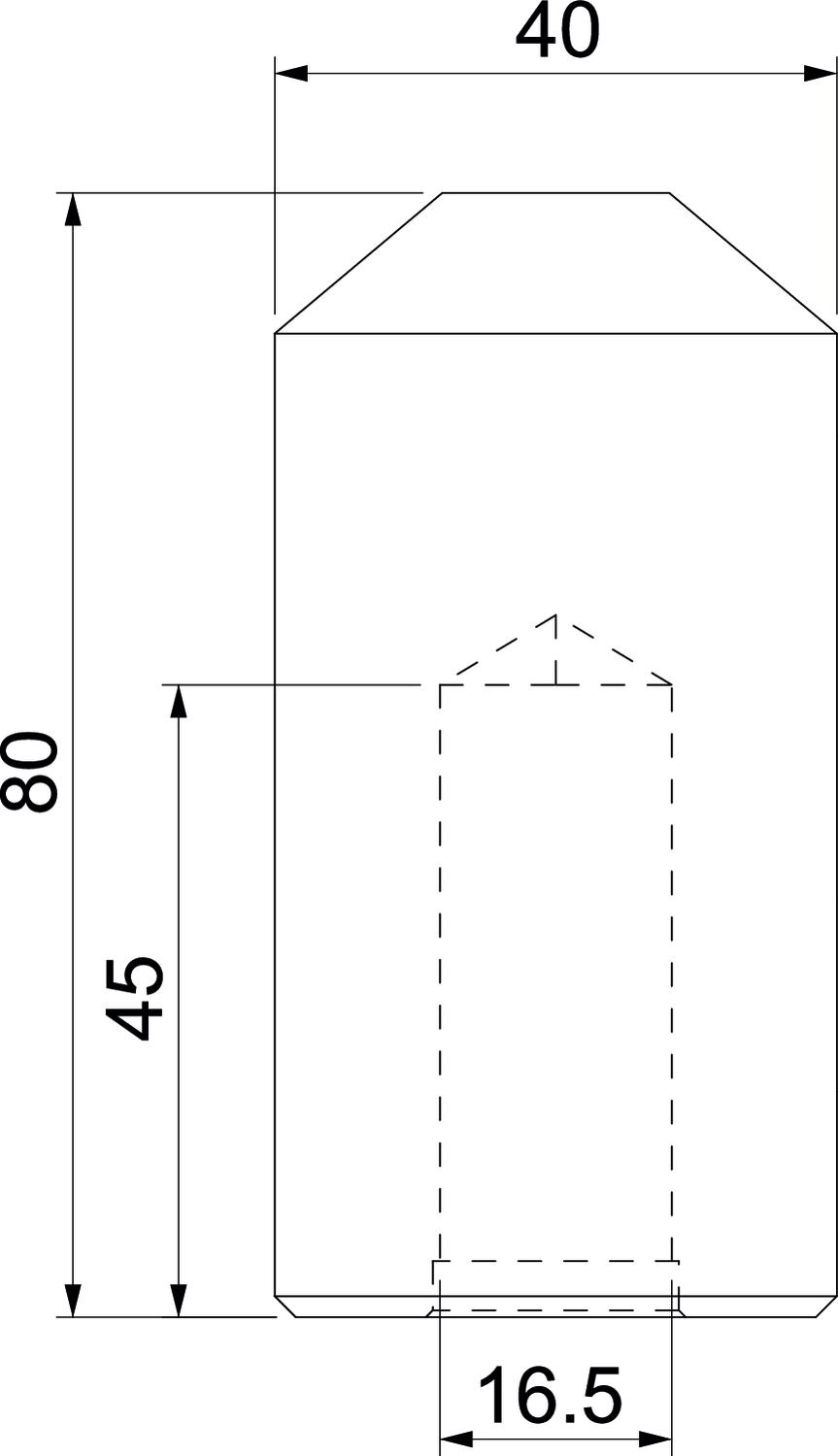

Scale drawing 1820 25 / 3042251, 42.12 kB, jpg

1820 25 / 3042251

Tiefen_und_Plattener_Schlagkopf_für_Staberder_ST_BP und OMEX.rfa, 332.00 kB
