Drop-out plate LABE DD 200

morepic-1

morepic-2

Drop-out plate LABE DD

Item no. 6220622 | EAN 4012196164110

Item no. / Types

Width

Product description

Product description

Exit plate for installation on the rung for vertically exiting cables.

Technical data

Technical data

Dimension	B200mm
Height	45 mm
Material	Steel

Plate thickness	1,5 mm
Surface	Strip galvanised zinc/aluminium, Double Dip
Width	200 mm

All types

All types

Types	Width	Item no.	Quantity	SSU
LABE 20 DD	200 mm	6220622	piece	20 piece
LABE 30 DD	300 mm	6220630	piece	25 piece
LABE 40 DD	400 mm	6220649	piece	25 piece
LABE 50 DD	500 mm	6220657	piece	10 piece

Downloads

Data sheet LABE 20 DD / 6220622 , 0.22MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

Declaration of conformity LABE 20 DD / 6220622 , 0.15MB , pdf

UK Declaration of Conformity LABE 20 DD / 6220622 , 0.09MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf

Mounting instructions Weitspannkabelleitern , 11.33MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

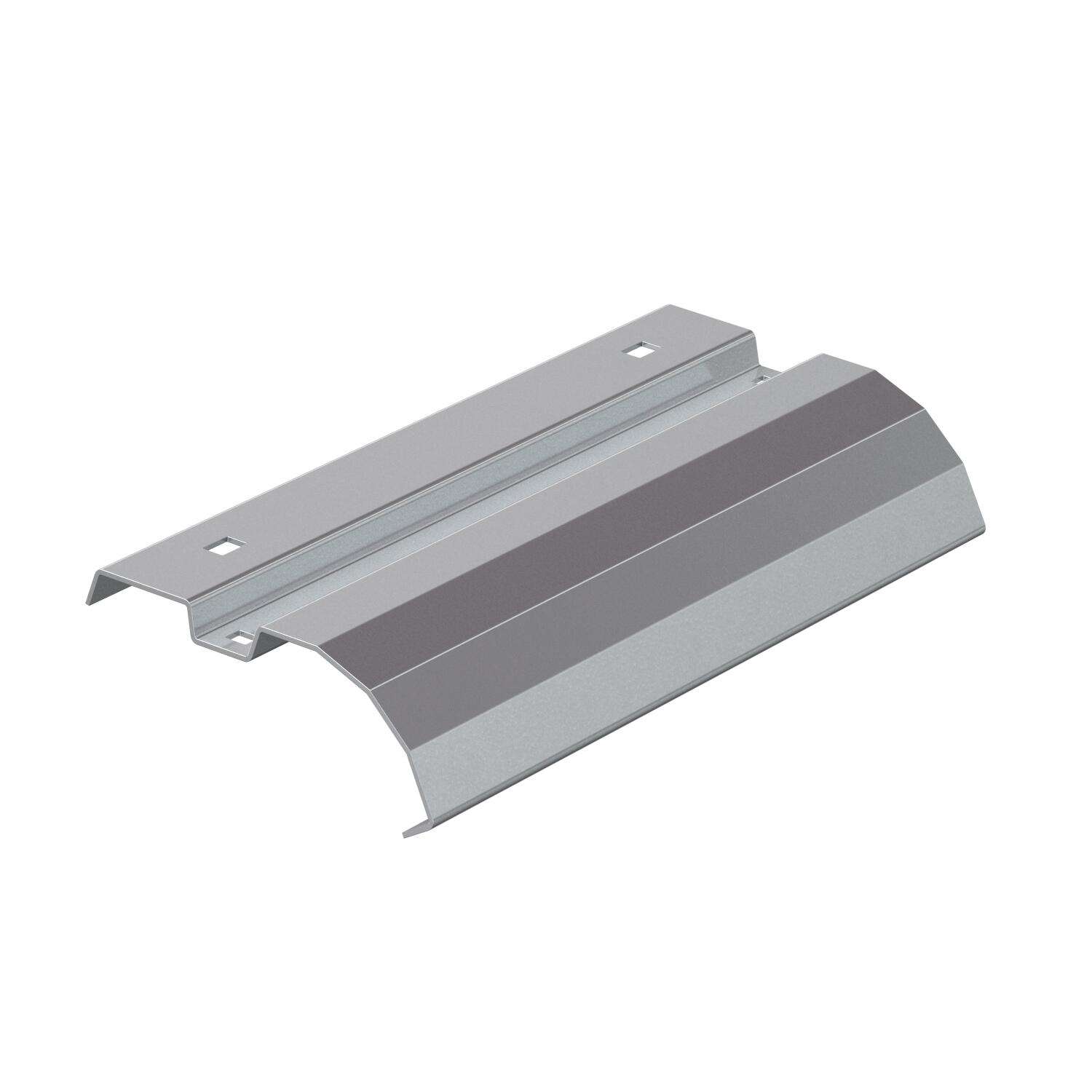

Product graphic LABE 20 DD / 6220622, 55.16 kB, jpg

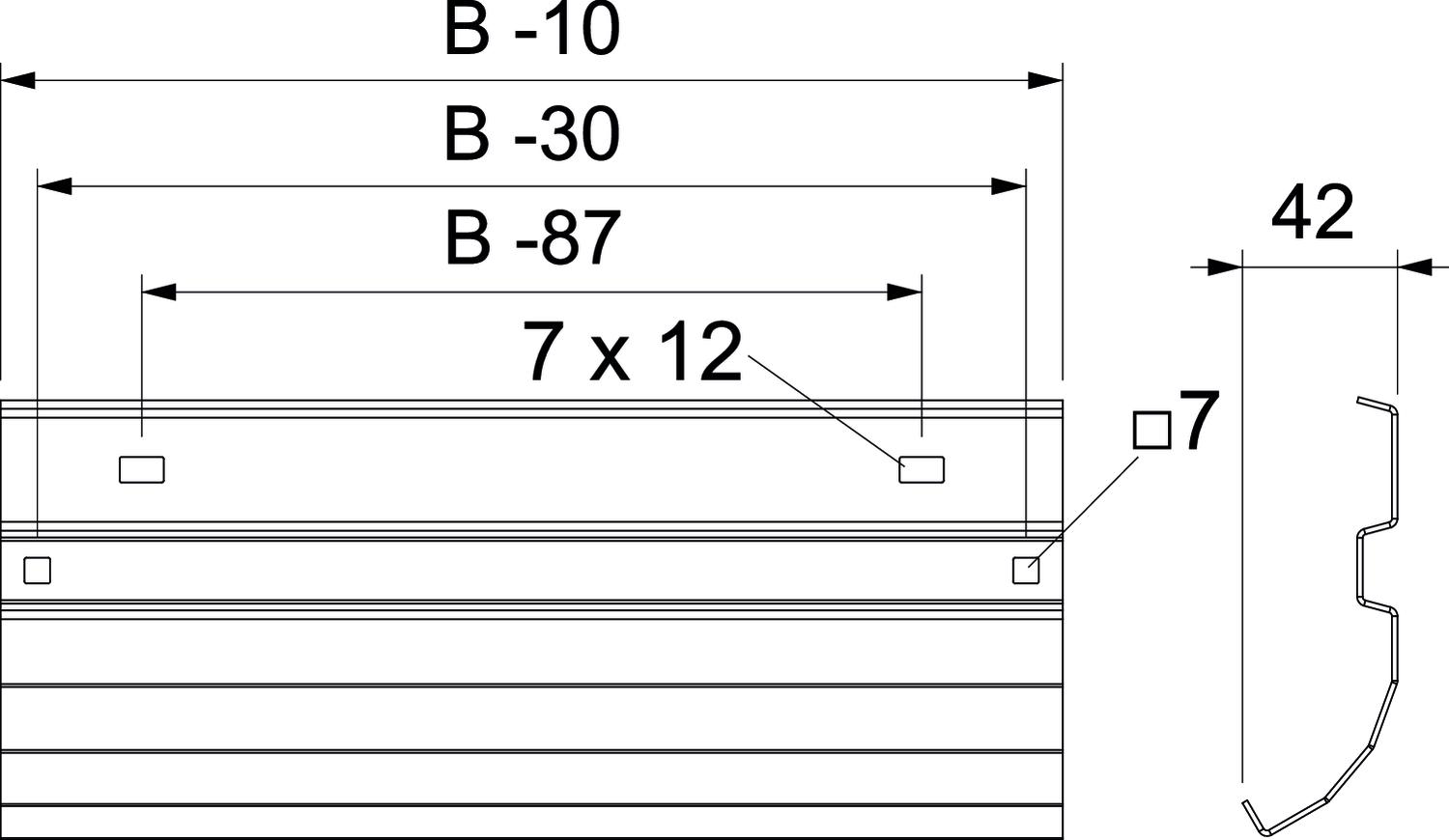

Scale drawing LABE 20 DD / 6220622, 67.76 kB, jpg
