Duct clamp KL80A 76.5
morepic-1 morepic-2 video-1

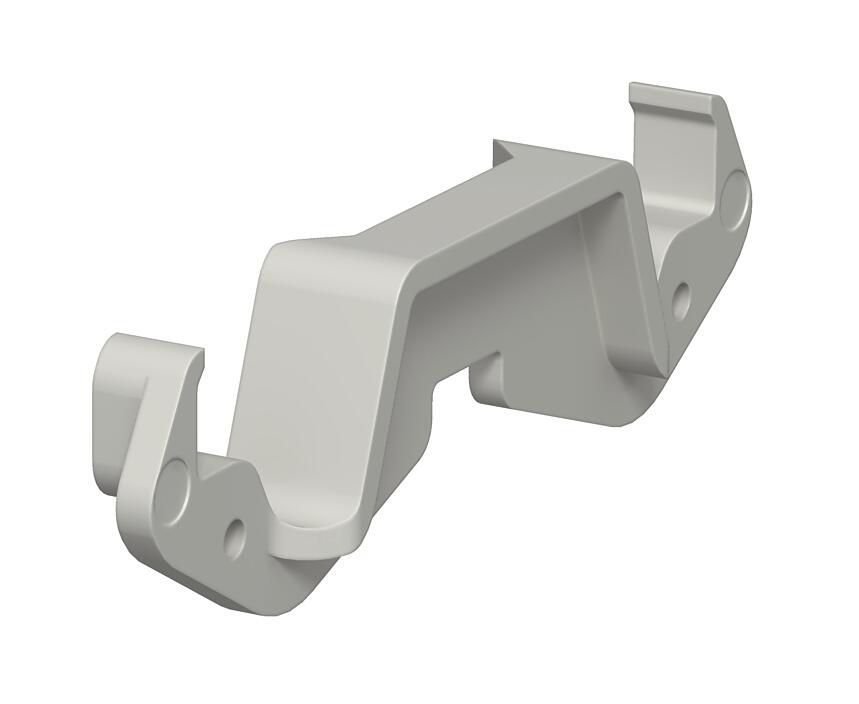

Duct clamp KL80A

Item no. 6288640 | EAN 4012195148777

6288640 / KL80A
76.5 mm
Product description
Product description
Duct clamp for holding cables securely and for fastening the partition in Rapid 80 GK, GS and GA device installation trunking systems as well as in ISS service poles with a 76.5 mm system opening.


  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Light grey; RAL 7035
Cover width 76,5 mm

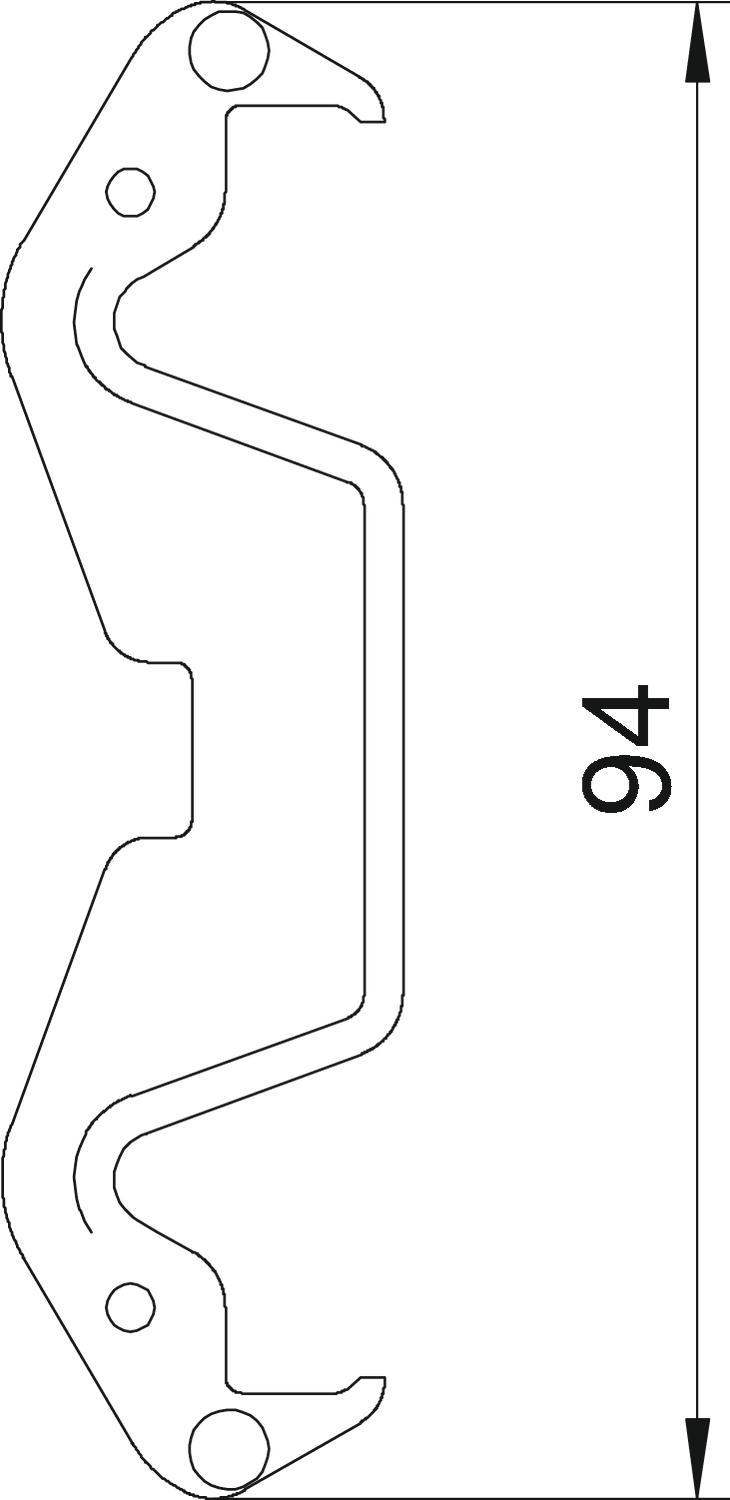

Dimension 94x25x12
Halogen-free yes
Material Polycarbonate/Acrylnitrile-butadiene-styrene
All types

All types

Types Cover width Item no. Quantity SSU
KL80A 76.5 mm 6288640
20 piece
Downloads

Download

Download

EU declaration of conformity KL80A / 6288640 , 0.13MB , pdf
Download
UK Declaration of Conformity KL80A / 6288640 , 0.14MB , pdf
Download
REACH Declaration of conformity KL80A / 6288640 , 0.27MB , pdf
Download
RoHS Declaration of conformity KL80A / 6288640 , 0.28MB , pdf
Download

No invitation to tender text is available for this product.
