Dust protection element and joint plate FS 100

Dust protection element and joint plate FS

Item no. 6049290 | EAN 4012196632879

Item no. / Types

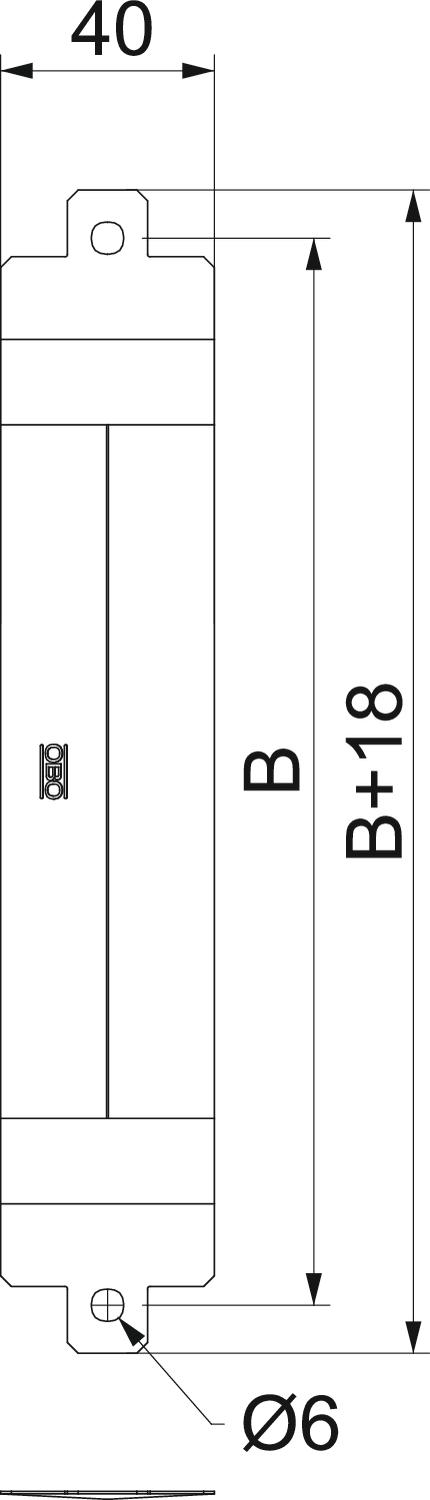

Dimension B

Product description

Product description

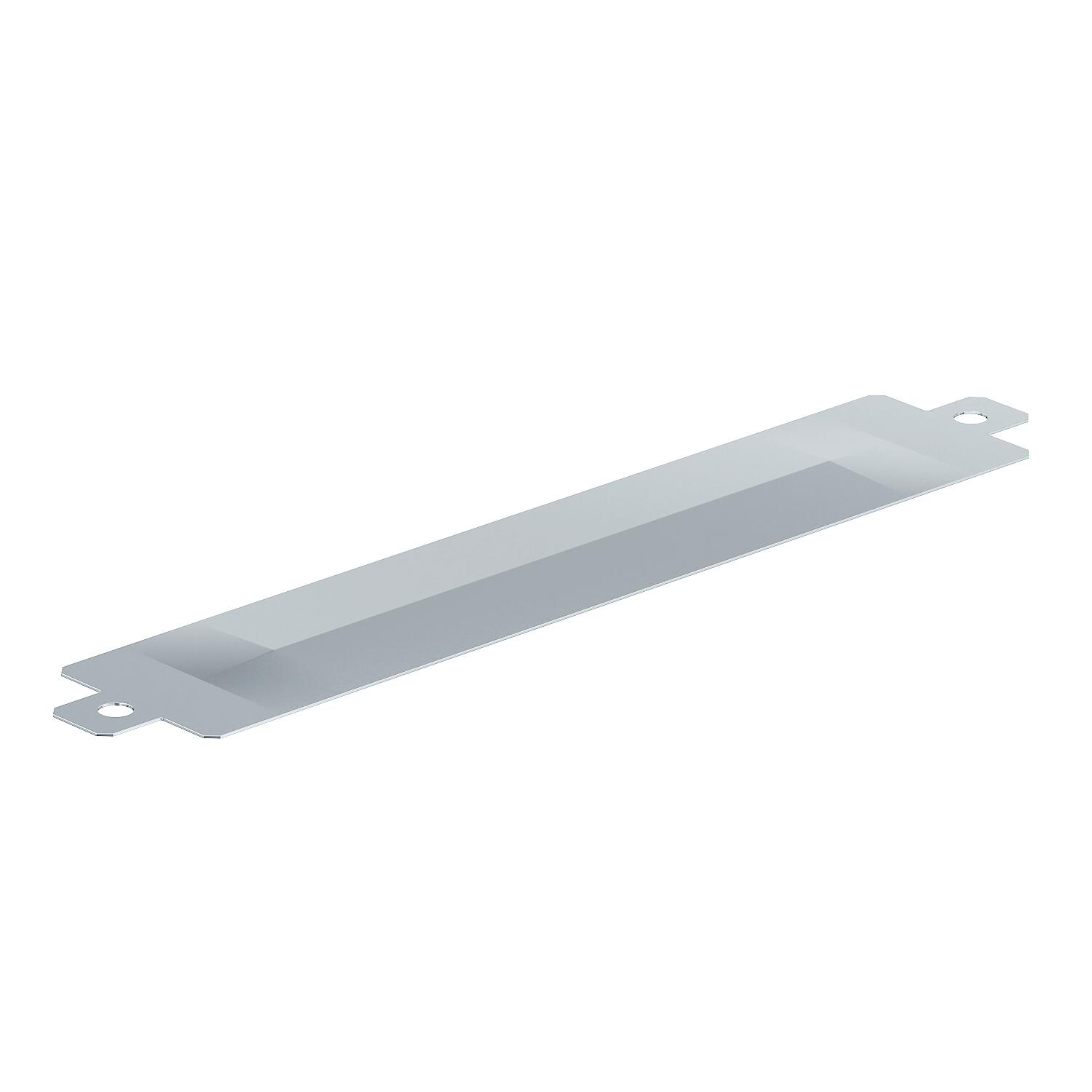

Dust protection element for use between chequer plate covers and aluminium chequer plates for walkable BKRS cable tray systems, as protection against dust and chips, etc.
The component can alternatively be used as a joint plate in the walkable cable tray, to bridge construction interfaces.

Technical data

Technical data

Dimension	B100mm
Dimension B	100 mm
Halogen-free	yes
Height	1,5 mm
Length	40 mm

Material	Steel
Rustproof steel, pickled	no
Surface	Strip galvanized
Width	100 mm

All types

All types

Types	Dimension B	Item no.	Quantity	SSU
SSE SSLB 100 FS	100 mm	6049290	piece	10 piece
SSE SSLB 200 FS	200 mm	6049292	piece	10 piece
SSE SSLB 300 FS	300 mm	6049294	piece	10 piece
SSE SSLB 400 FS	400 mm	6049296	piece	10 piece
SSE SSLB 500 FS	500 mm	6049298	piece	10 piece
SSE SSLB 600 FS	600 mm	6049300	piece	10 piece
