Dust protection plate, metric

Item no. 2028870 | EAN 4012195035299

1.5 mm
Product description

Product description

Cellular polyethylene.

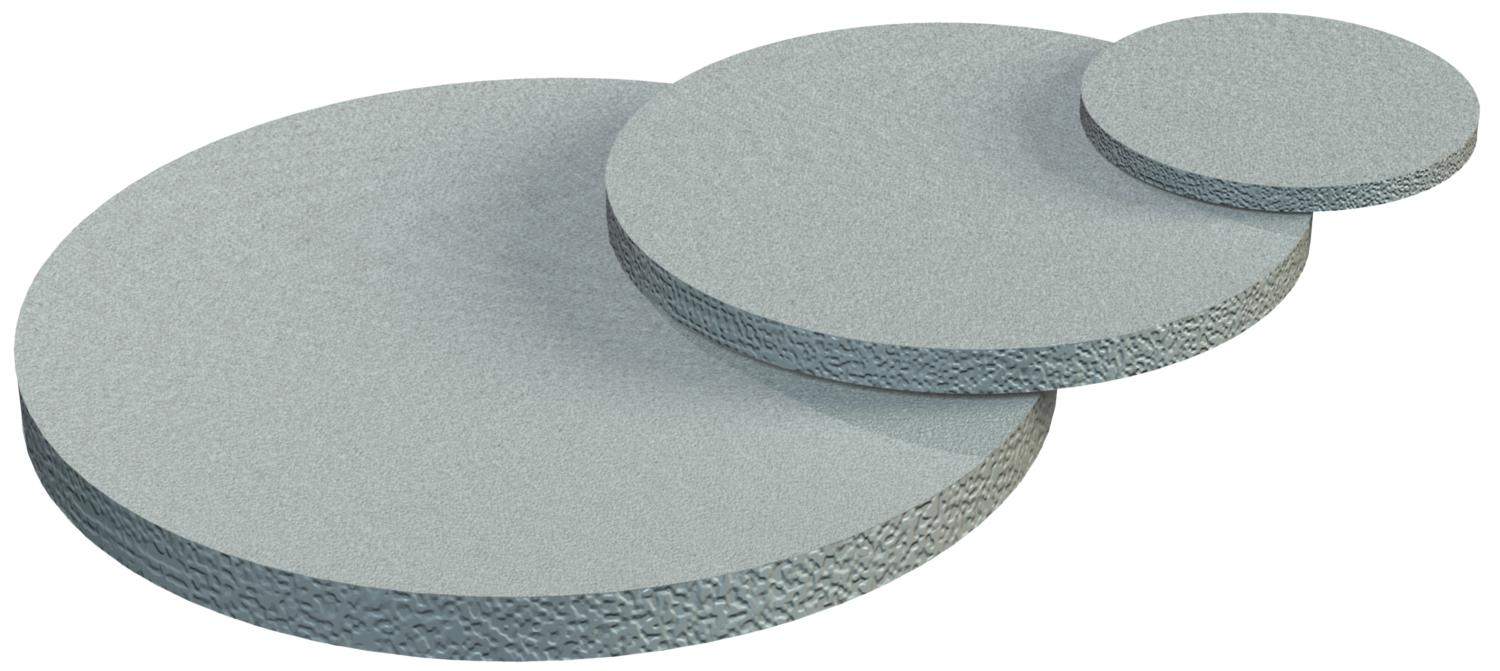

Small protective disc to protect the V-TEC VM and V-TEC VM MS cable glands against dust before the cable is installed.

Application: the discs are pre-mounted between the cap nut and the seal. They do not need to be removed when the cable is installed, but are simply passed through to the interior with the cable.

Note: the discs do not provide any mechanical protection.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread metric
Technical data

Technical data

Colour Black

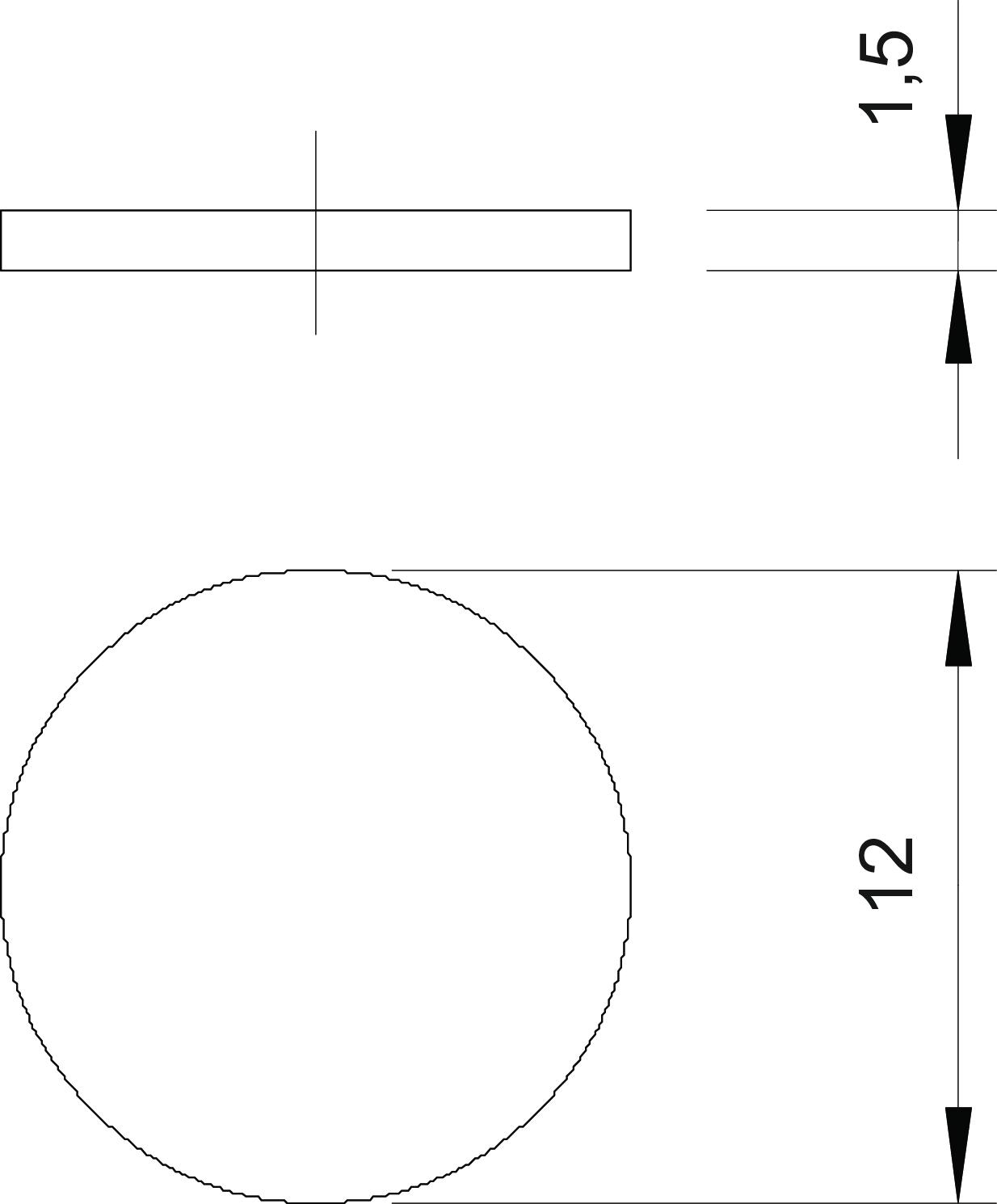

Dimension M12
Dimension D 12 mm
Dimension t 1,5 mm
Impact-resistant no
Material Zell - Polyethylen
Size M12
Version for Miscellaneous
All types

All types

Types Dimension D Dimension t Size Item no. Quantity SSU
107 S VTEC M12 12 mm 1.5 mm M12 2028870
1000 piece
107 S VTEC M16 16 mm 1.5 mm M16 2028873
1000 piece
107 S VTEC M20 20 mm 1.5 mm M20 2028875
1000 piece
107 S VTEC M25 25 mm 1.5 mm M25 2028877
100 piece
107 S VTEC M32 32 mm 1.5 mm M32 2028880
100 piece
107 S VTEC M40 40 mm 1.5 mm M40 2028883
100 piece
107 S VTEC M50 50 mm 1.5 mm M50 2028885
100 piece
Downloads

Download

107 S VTEC M12 / 2028870
Download
