Dust protection plate, PG

Item no. 2028891 | EAN 4012195843559

Product description

Product description

Cellular polyethylene.

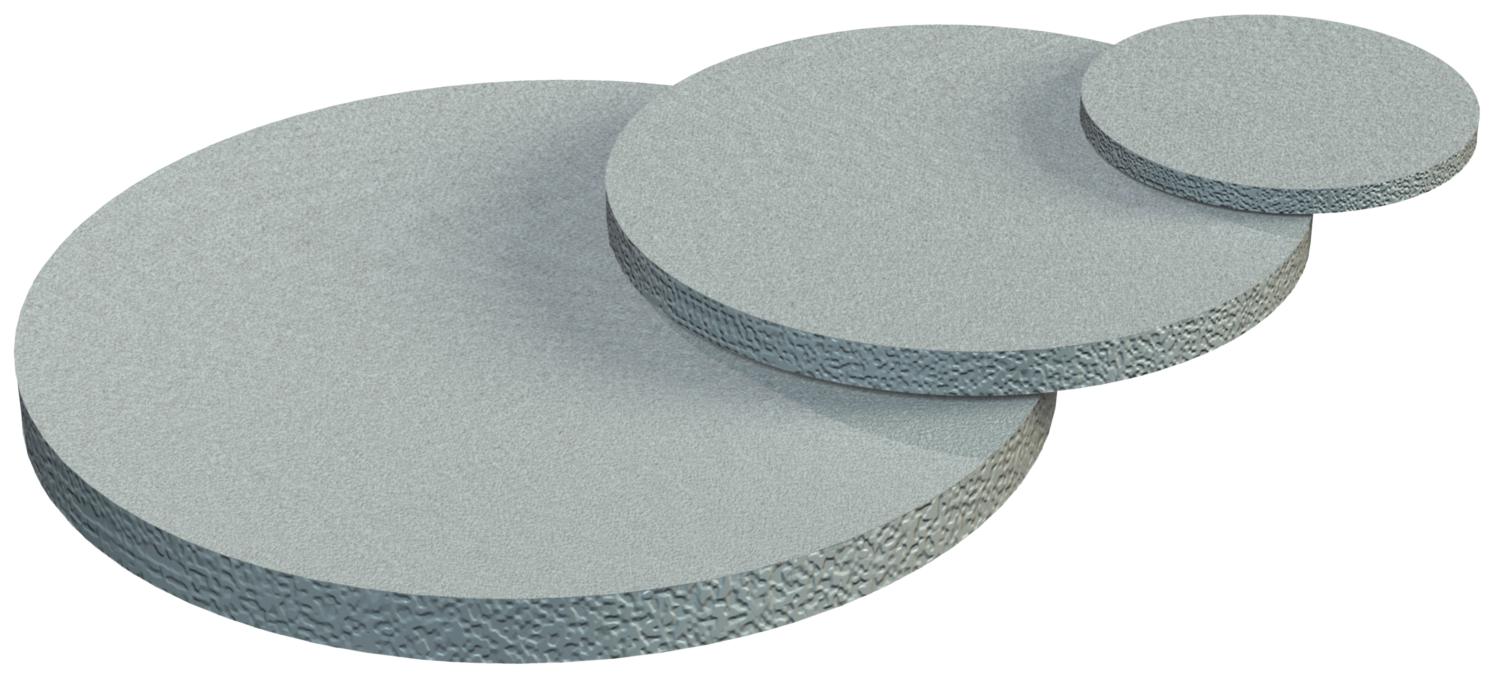

Small protective disc to protect the V-TEC and V-TEC MS cable glands against dust before the cable is installed.

Application: the discs are pre-mounted between the cap nut and the seal. They do not need to be removed when the cable is installed, but are simply passed through to the interior with the cable.

Note: the discs do not provide any mechanical protection.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Thread Pg
Technical data

Technical data

Colour Black

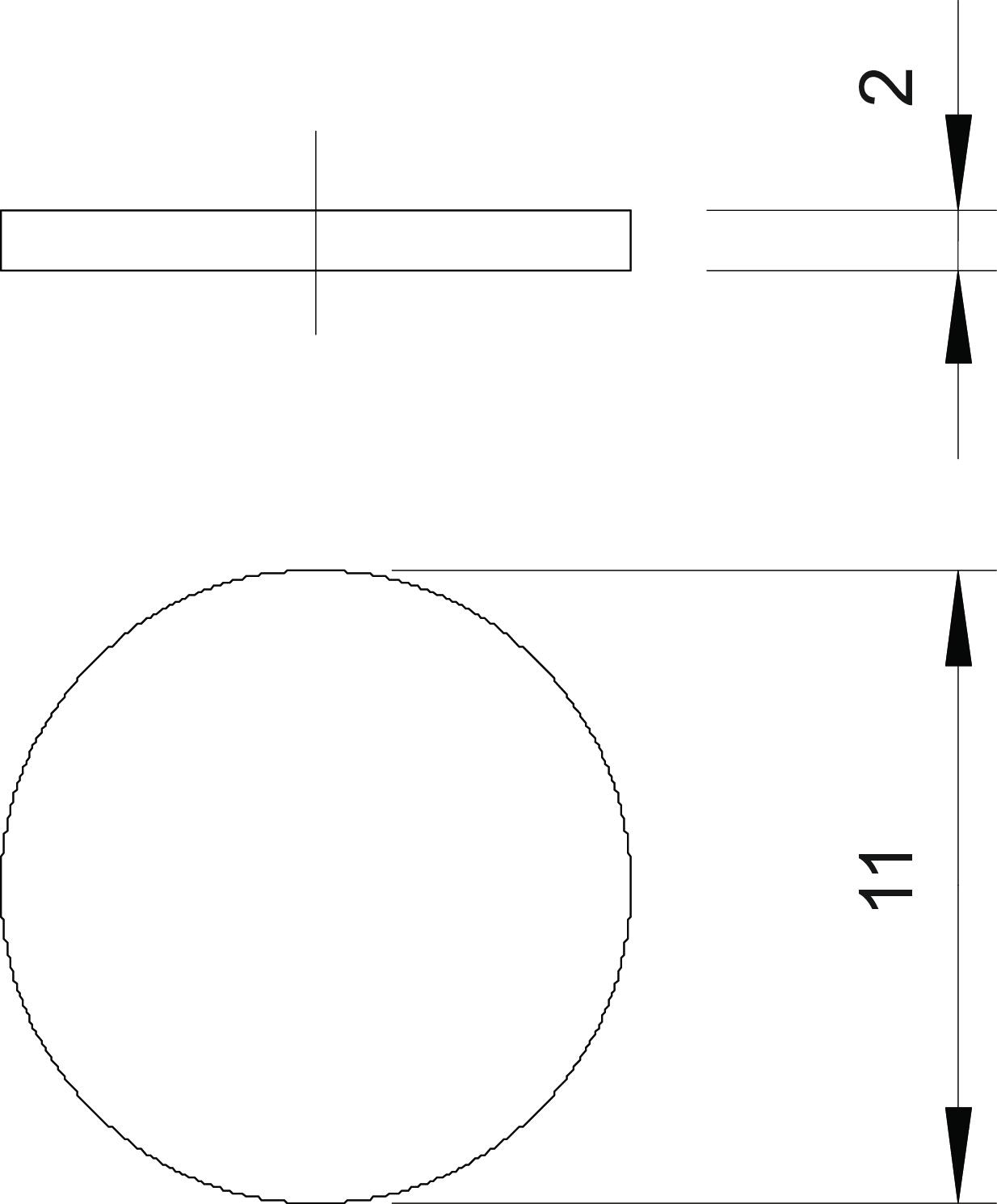

Dimension PG7
Dimension D 11 mm
Dimension t 2 mm
Impact-resistant no
Material Zell - Polyethylen
Size Pg 7
Version for Miscellaneous
All types

All types

Types Dimension D Dimension t Size Item no. Quantity SSU
107 S VTEC PG7 11 mm 2 mm Pg 7 2028891
1000 piece
107 S VTEC PG9 14 mm 2 mm Pg 9 2028905
1000 piece
107 S VTEC PG11 16.5 mm 2 mm Pg 11 2028913
1000 piece
107 S VTEC PG13 18.5 mm 2 mm Pg 13,5 2028921
1000 piece
107 S VTEC PG16 21 mm 2 mm Pg 16 2028948
1000 piece
107 S VTEC PG21 26.5 mm 2 mm Pg 21 2028956
1000 piece
107 S VTEC PG29 34.5 mm 2 mm Pg 29 2028964
100 piece
107 S VTEC PG36 44 mm 3 mm Pg 36 2028972
100 piece
107 S VTEC PG42 50 mm 3 mm Pg 42 2028980
100 piece
107 S VTEC PG48 56 mm 3 mm Pg 48 2028999
100 piece
