Dust protection plate, PG 18.5 | 2 | Pg 13,5

Dust protection plate, PG

Item no. 2028921 | EAN 4012195843733

Item no. / Types

Dimension D

Dimension t

Size

Product description

Product description

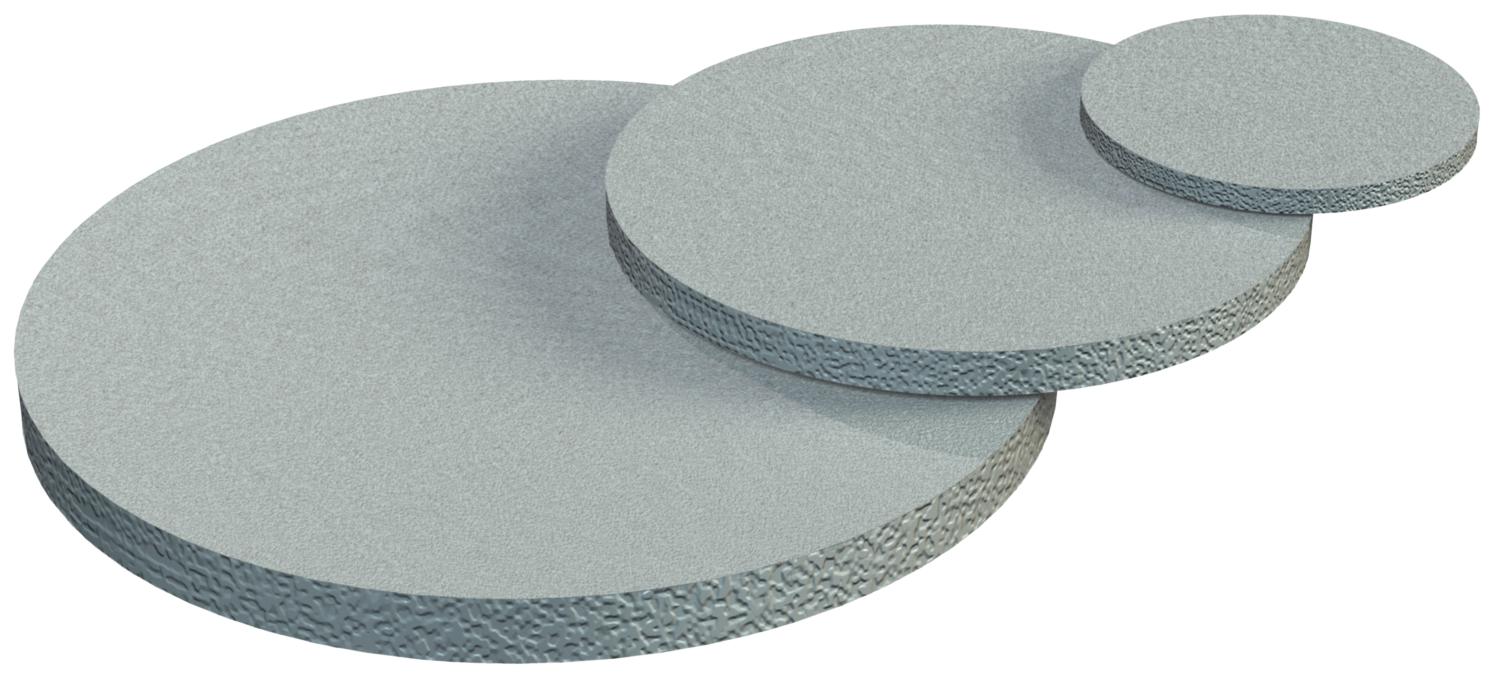

Cellular polyethylene.

Small protective disc to protect the V-TEC and V-TEC MS cable glands against dust before the cable is installed.

Application: the discs are pre-mounted between the cap nut and the seal. They do not need to be removed when the cable is installed, but are simply passed through to the interior with the cable.

Note: the discs do not provide any mechanical protection.

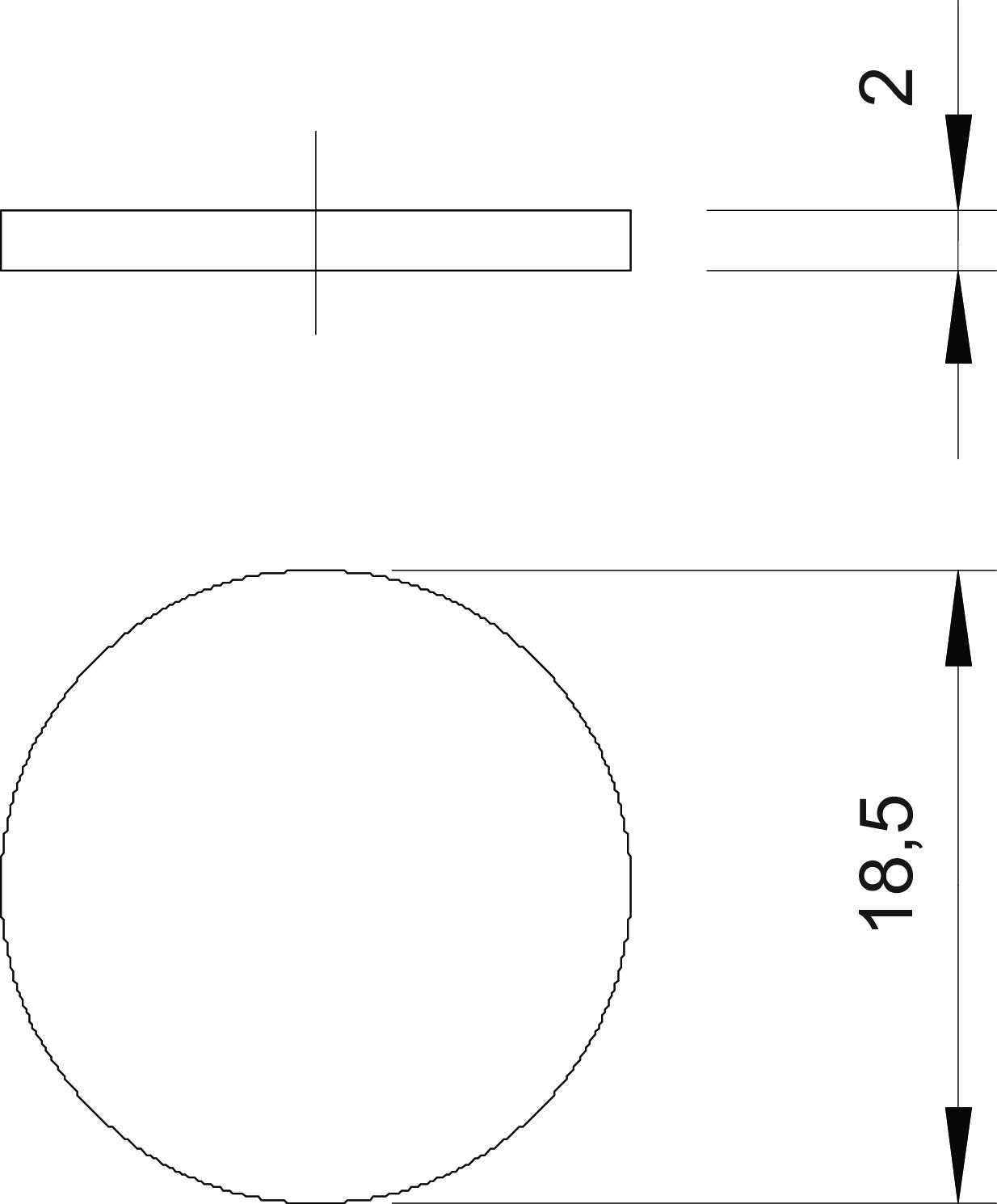

Technical data

Technical data

Colour	Black
Dimension	PG13,5
Dimension D	18,5 mm
Dimension t	2 mm

Impact-resistant	no
Material	Zell - Polyethylen
Size	Pg 13,5
Version for	Miscellaneous

All types

All types

Types	Dimension D	Dimension t	Size	Item no.	Quantity	SSU
107 S VTEC PG7	11 mm	2 mm	Pg 7	2028891	piece	1000 piece
107 S VTEC PG9	14 mm	2 mm	Pg 9	2028905	piece	1000 piece
107 S VTEC PG11	16.5 mm	2 mm	Pg 11	2028913	piece	1000 piece
107 S VTEC PG13	18.5 mm	2 mm	Pg 13,5	2028921	piece	1000 piece
107 S VTEC PG16	21 mm	2 mm	Pg 16	2028948	piece	1000 piece
107 S VTEC PG21	26.5 mm	2 mm	Pg 21	2028956	piece	1000 piece
107 S VTEC PG29	34.5 mm	2 mm	Pg 29	2028964	piece	100 piece
107 S VTEC PG36	44 mm	3 mm	Pg 36	2028972	piece	100 piece
107 S VTEC PG42	50 mm	3 mm	Pg 42	2028980	piece	100 piece
107 S VTEC PG48	56 mm	3 mm	Pg 48	2028999	piece	100 piece
