Earth plate 1000 | 1000 | 3

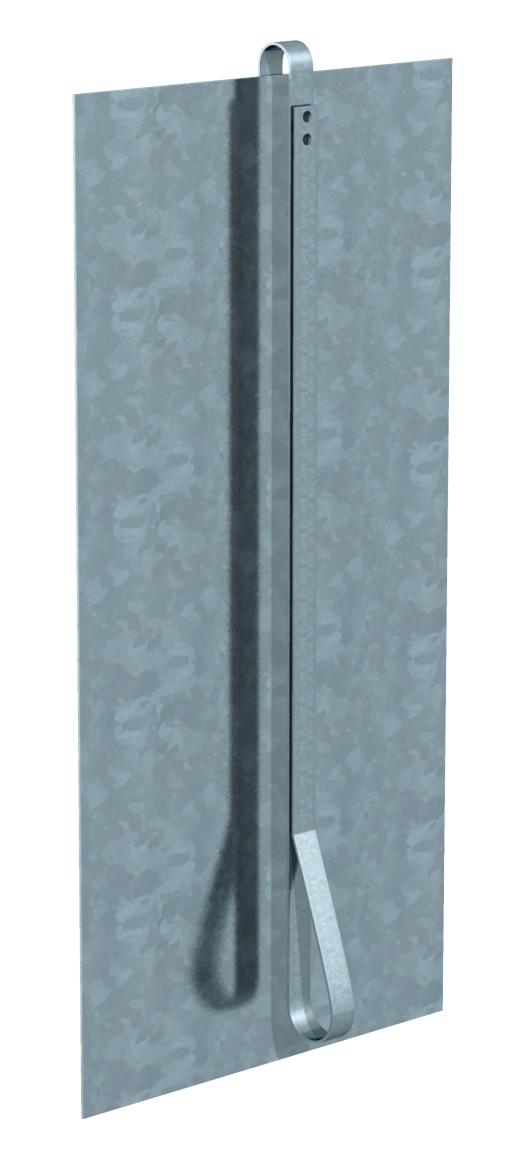

morepic-1

morepic-2

Earth plate

Item no. 5009235 | EAN 4012195376996

Item no. / Types

Length	1000 mm

Width

Thickness	3 mm

Product description

Product description

• With 3 m strip steel section FL30 x 3.5
• With 2 attaching holes Ø 11 mm

Technical data

Technical data

Dimension	1000x1000x3
Dimension B	1000 mm
Dimension L	1000 mm
Length	1000 mm
Length of connection lug	3

Material	Steel
Surface	Hot-dip galvanised
Thickness	3 mm
Width	1000 mm

All types

All types

Types	Length	Width	Thickness	Item no.	Quantity	SSU
1816 F-500X1000	1000 mm	500 mm	3 mm	5009227	piece	1 piece
1816 F-1000X1000	1000 mm	1000 mm	3 mm	5009235	piece	1 piece

Downloads

Data sheet 1816 F-1000X1000 / 5009235 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Guide Guide, earthing systems , 2.10MB , pdf

Catalogue Equipotential bonding and earthing , 16.24MB , pdf

EU declaration of conformity 1816 F-1000X1000 / 5009235 , 0.06MB , pdf

Download

REACH Declaration of conformity 1816 F-1000X1000 / 5009235 , 0.27MB , pdf

Download

RoHS Declaration of conformity 1816 F-1000X1000 / 5009235 , 0.28MB , pdf

Download

Selection aid Selection aid for foundation and ring earthers according to DIN 18014 , 0.19MB , pdf

Product graphic 1816 F-1000X1000 / 5009235, 35.42 kB, jpg

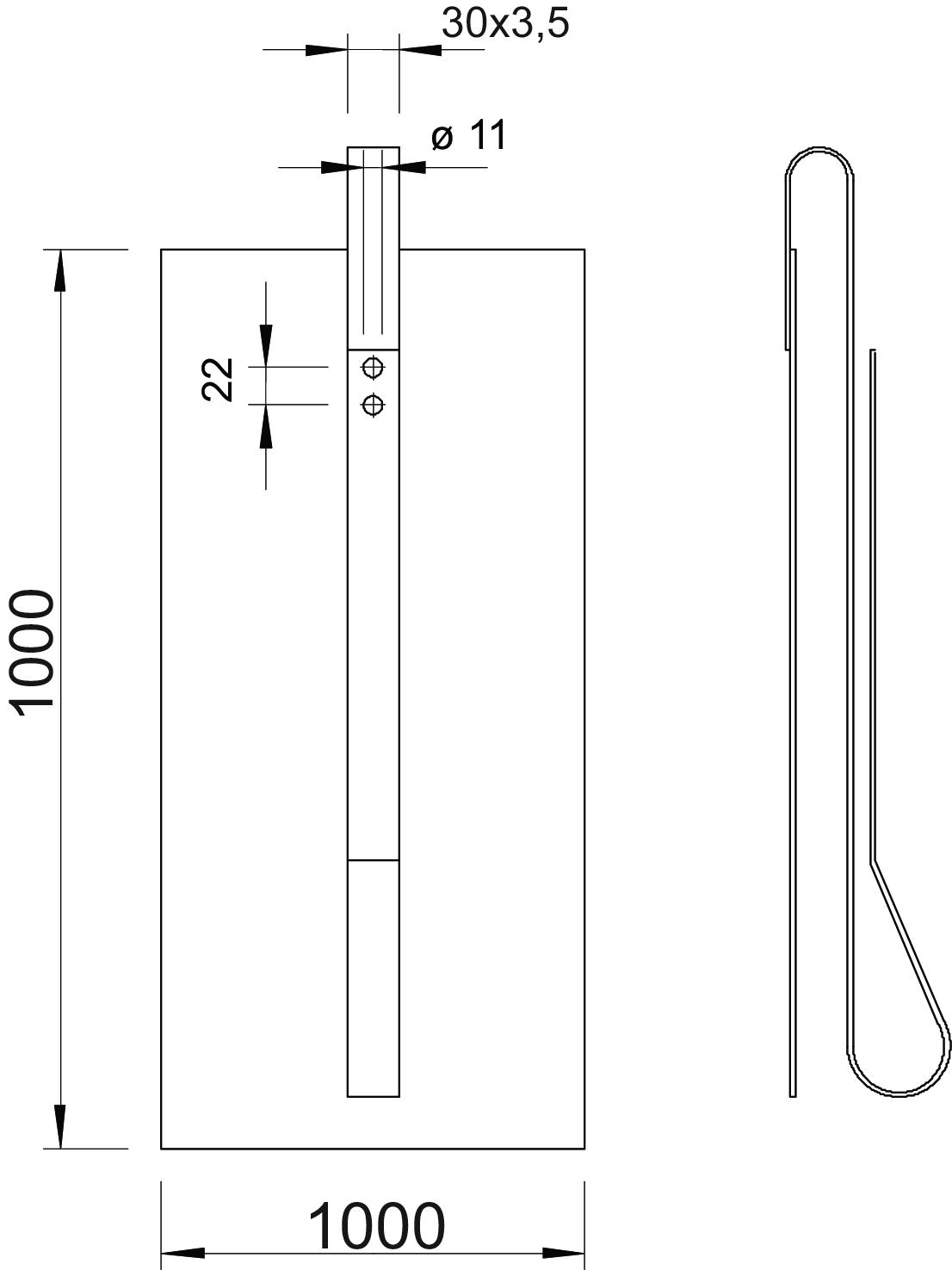

Scale drawing 1816 F-1000X1000 / 5009235, 55.63 kB, jpg

1816 F-1000X1000 / 5009235

Erdungs-System_Erdplatte.rfa, 348.00 kB
