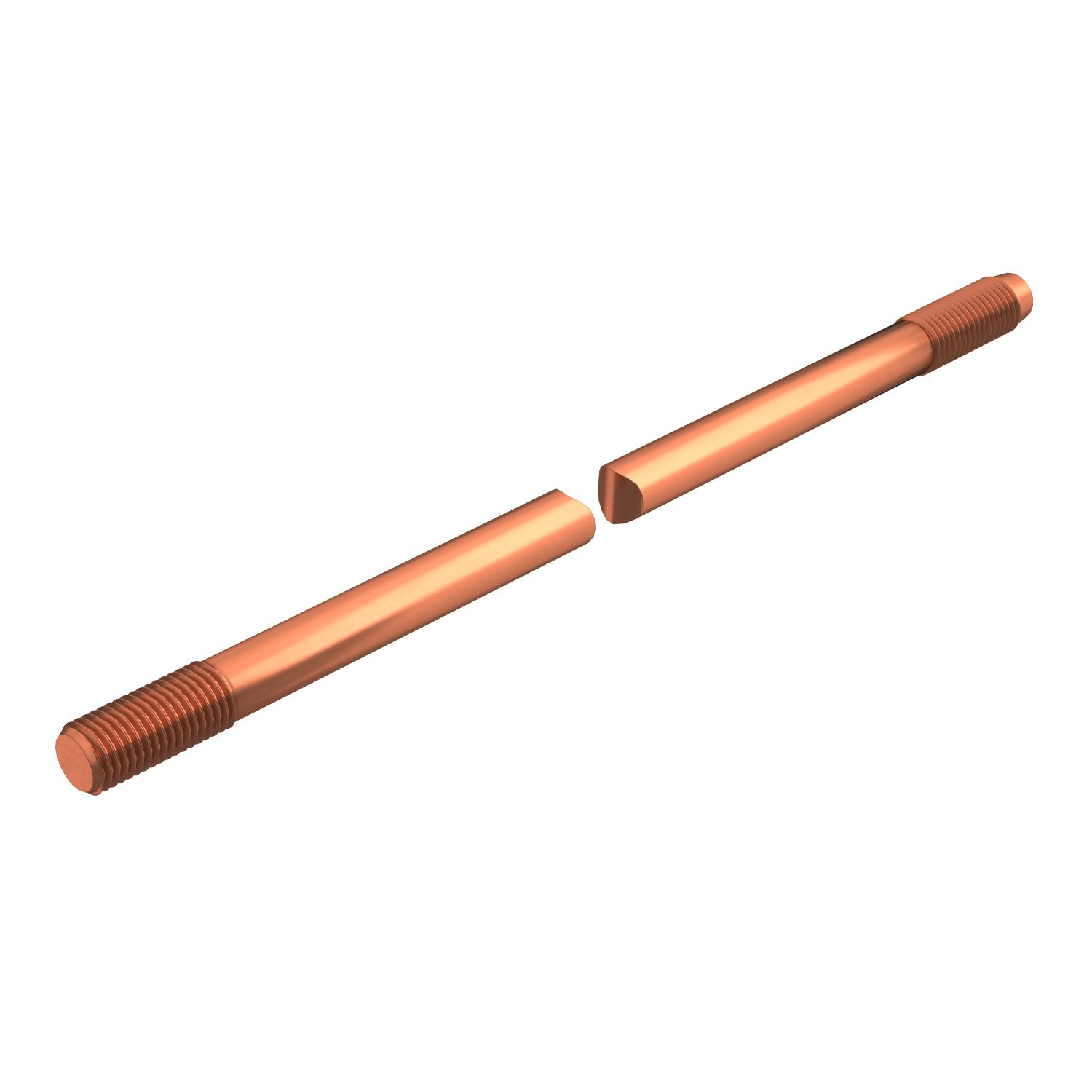

Earth rod BS with copper sheath

Item no. 5000481 | EAN 4012196431229

5000481 / 219 16 CU
1200 mm
14.2 mm
Steel
Product description
Product description
• Made of steel with a copper jacket of min. 0.25 mm
• With thread for linking together
• Tensile strength min. 600 N/mm²
• Meets the requirements of VDE 0185-305 (IEC 62305)
Technical data

Technical data

CO₂ Footprint (GWP) Cradle-to-Gate 0,007 kg CO₂e / 1 Piece

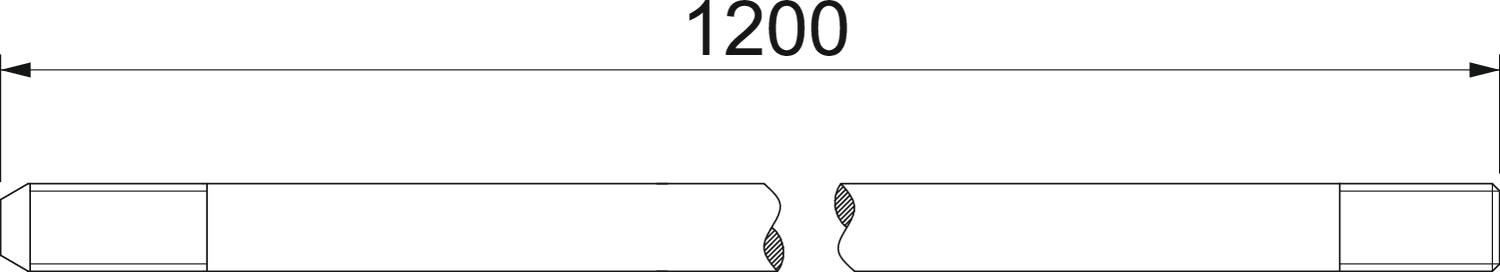

Dimension 1200
Dimension D 16 mm
External diameter 14,2 mm
Length 1200 mm
Material Steel
Profile type Miscellaneous
Surface Copper-plated
All types

All types

Types Length External diameter Material Item no. Quantity SSU
219 16 CU 1200 mm 14.2 mm Steel 5000481
5 piece
