Earth rod for standard applications
Item no. 5000769 | EAN 4012195111047
- Product description
-
Product description• High corrosion resistance
• Zinc support approx. 130 µm
• With peg and bore for linking together
• Round pegs with three knurls
• Conforms to the requirements according to VDE 0185-305 (IEC 62305) and DIN EN 62561-2
• Short-circuit current Ik (50 Hz), time 1 s, temp. max. 300 °C: 12.3 kA
-
- Technical data
-
Technical data
CO₂ Footprint (GWP) Cradle-to-Gate 11,334 kg CO₂e / 1 Piece Dimension 1,5m External diameter 25 mm Length 1500 mm Lightning current carrying capacity H/100 kA Material Steel Profile type Round D=25 mm Short-circuit current (50 HZ)(1 s;≤300°C) 12,3 Surface Hot-dip galvanised - All types
-
Mounting accessories
Products Types Item no. Quantity SSU
Driving spike for ST and BP earth rod
1819 25BP 3041956 5 piece
Driving head for ST, BP and OMEX earth rods
1820 25 3042251 1 piece
Connection clip for earthing rod to round cables Rd 8−10
2710 25 FT 5001226 5 piece

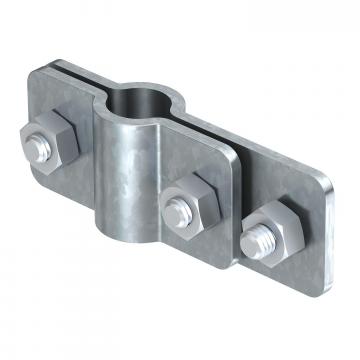

Connection clamp for earth rod on flat conductor FT
2730 25 FT 5001412 5 piece
Connection clamp for earth rod, universal FT
2760 25 FT 5001668 5 piece - Downloads
-
Data sheet 219 25 ST FT / 5000769 , 0.17MB , pdfEU declaration of conformity 219 25 ST FT / 5000769 , 0.06MB , pdfREACH Declaration of conformity 219 25 ST FT / 5000769 , 0.27MB , pdfRoHS Declaration of conformity 219 25 ST FT / 5000769 , 0.12MB , pdfMounting instructions Mounting instructions, earth rod , 0.15MB , pdfNo invitation to tender text is available for this product.
