- Product description
-
Product description
• For pipes 1/4"-1½" or Ø 11.5-48.3 mm
• Connection options: conductors to 16 mm² with connecting terminal, riveted with brass
and 1 cylinder bolt M5 x 12
• To 1½" with 2 cylinder bolts M6 x 16 (G)
- Technical data
-
Technical data

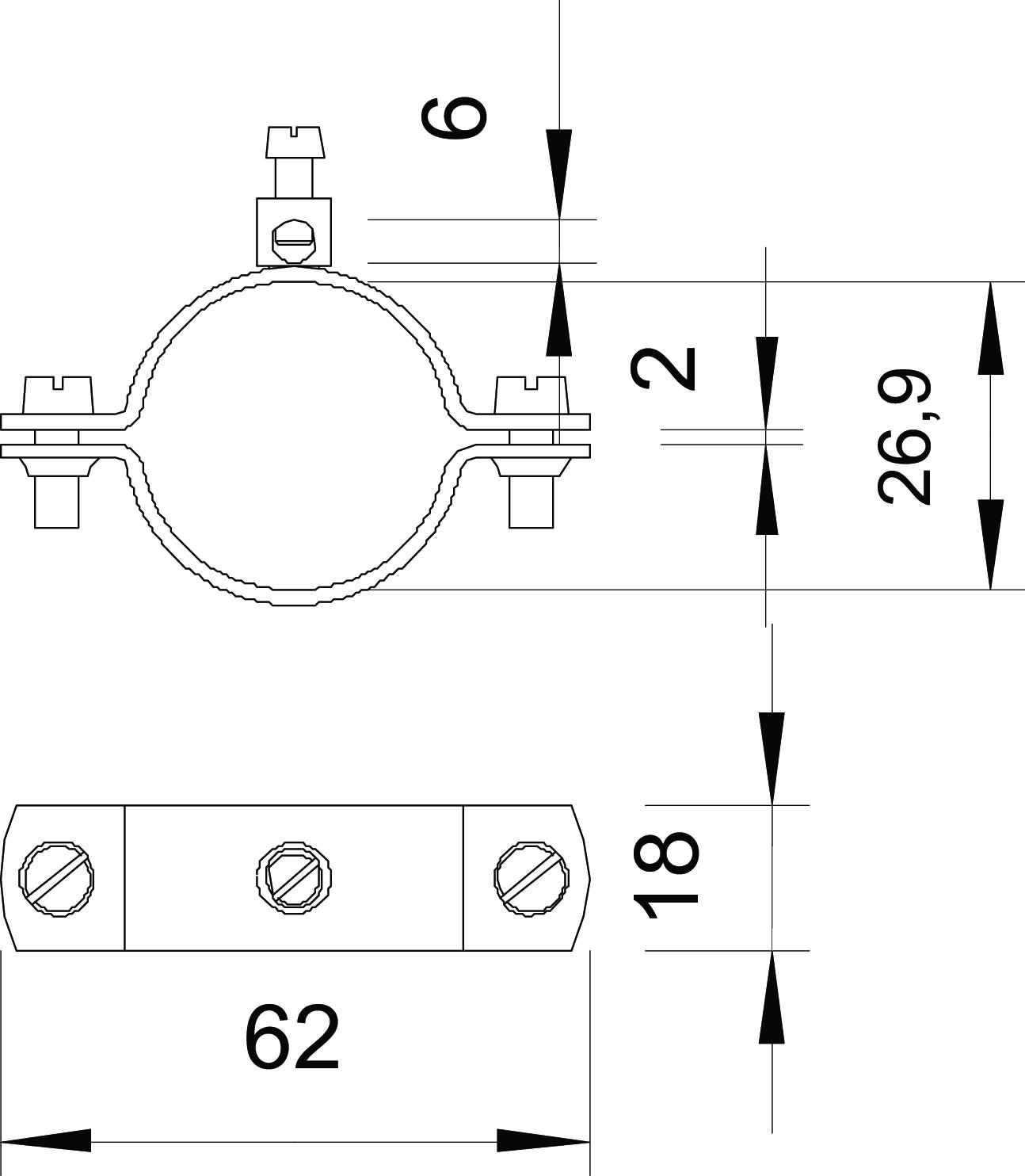

Clamping range D 3/4 Clamping range D, max. 26,9 mm Clamping range D, min. 24,9 mm Cross-section of cable to be connected, max. 16 mm² Dimension 3/4" Dimension A 62 mm Dimension b 18 mm Dimension D 26,9 mm Dimension X 2 mm Material Steel Number of conductors 1 Surface Electrogalvanized - All types
-
All types
- Downloads
-
Data sheet 925 3/4 / 5040094 , 0.21MB , pdfDeclaration of conformity 925 3/4 / 5040094 , 0.06MB , pdfREACH Declaration of conformity 925 3/4 / 5040094 , 0.12MB , pdfRoHS Declaration of conformity 925 3/4 / 5040094 , 0.12MB , pdf
