- Product description
-
Product description
• For pipes 1/4"-1½" or Ø 11.5-48.3 mm
• Connection options: conductors to 16 mm² with connecting terminal, riveted with brass
and 1 cylinder bolt M5 x 12
• To 1½" with 2 cylinder bolts M6 x 16 (G)
- Technical data
-
Technical data

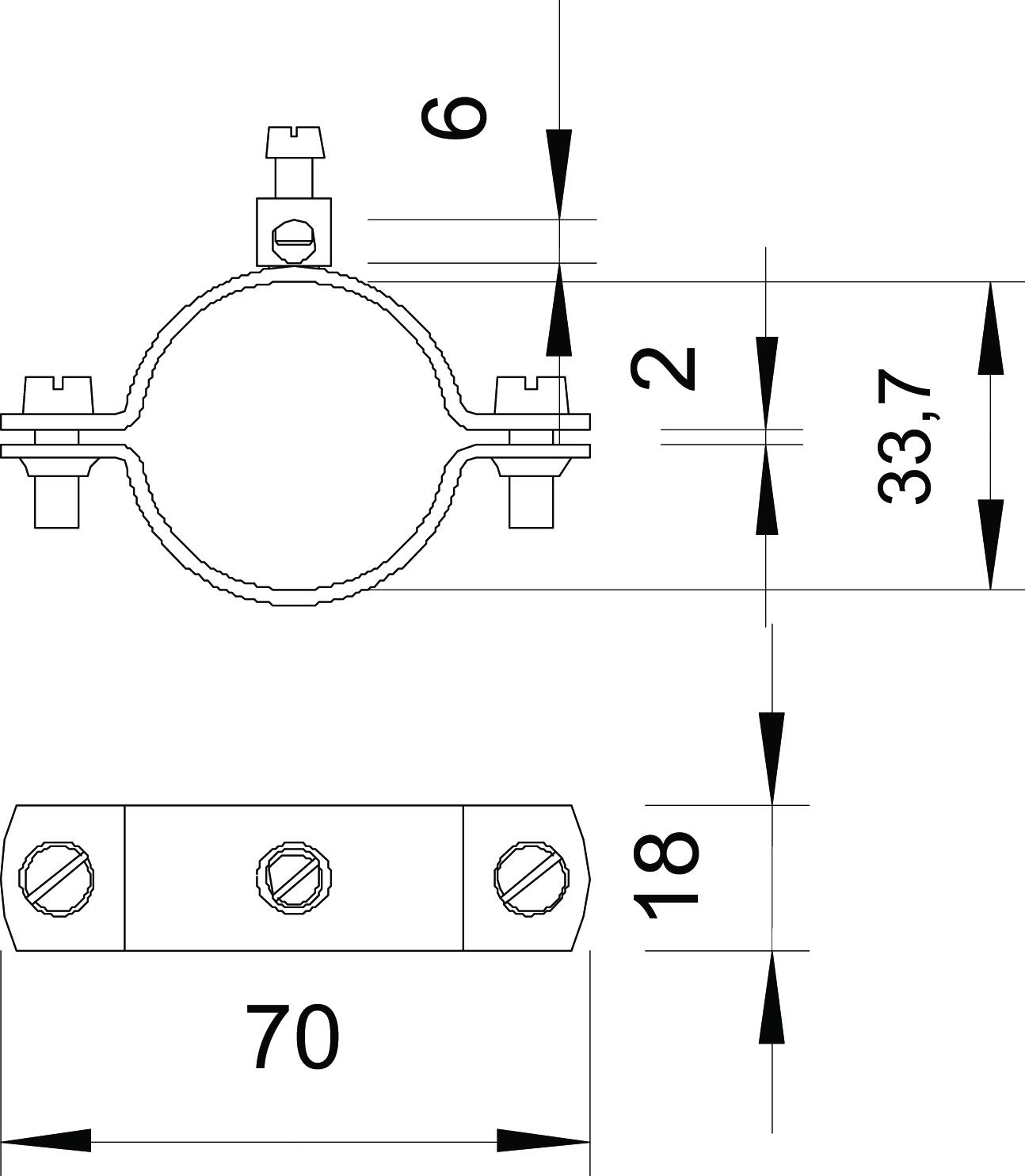

Clamping range D 1 Clamping range D, max. 33,7 mm Clamping range D, min. 31,7 mm Cross-section of cable to be connected, max. 16 mm² Dimension 1" Dimension A 70 mm Dimension b 18 mm Dimension D 33,7 mm Dimension X 2 mm Material Steel Number of conductors 1 Surface Electrogalvanized - All types
-
All types
- Downloads
-
Data sheet 925 1 / 5040116 , 0.21MB , pdfDeclaration of conformity 925 1 / 5040116 , 0.06MB , pdfREACH Declaration of conformity 925 1 / 5040116 , 0.12MB , pdfRoHS Declaration of conformity 925 1 / 5040116 , 0.12MB , pdf
