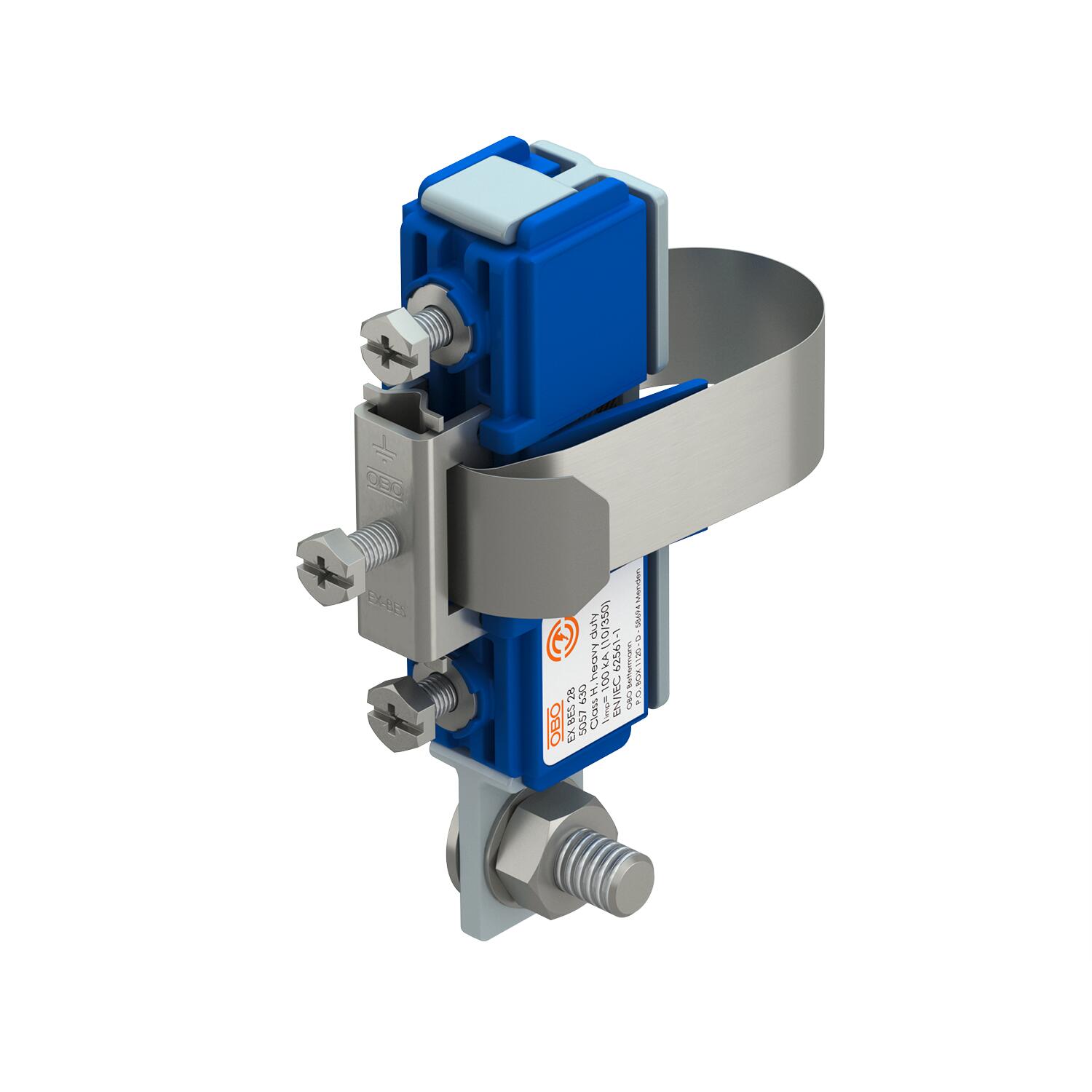

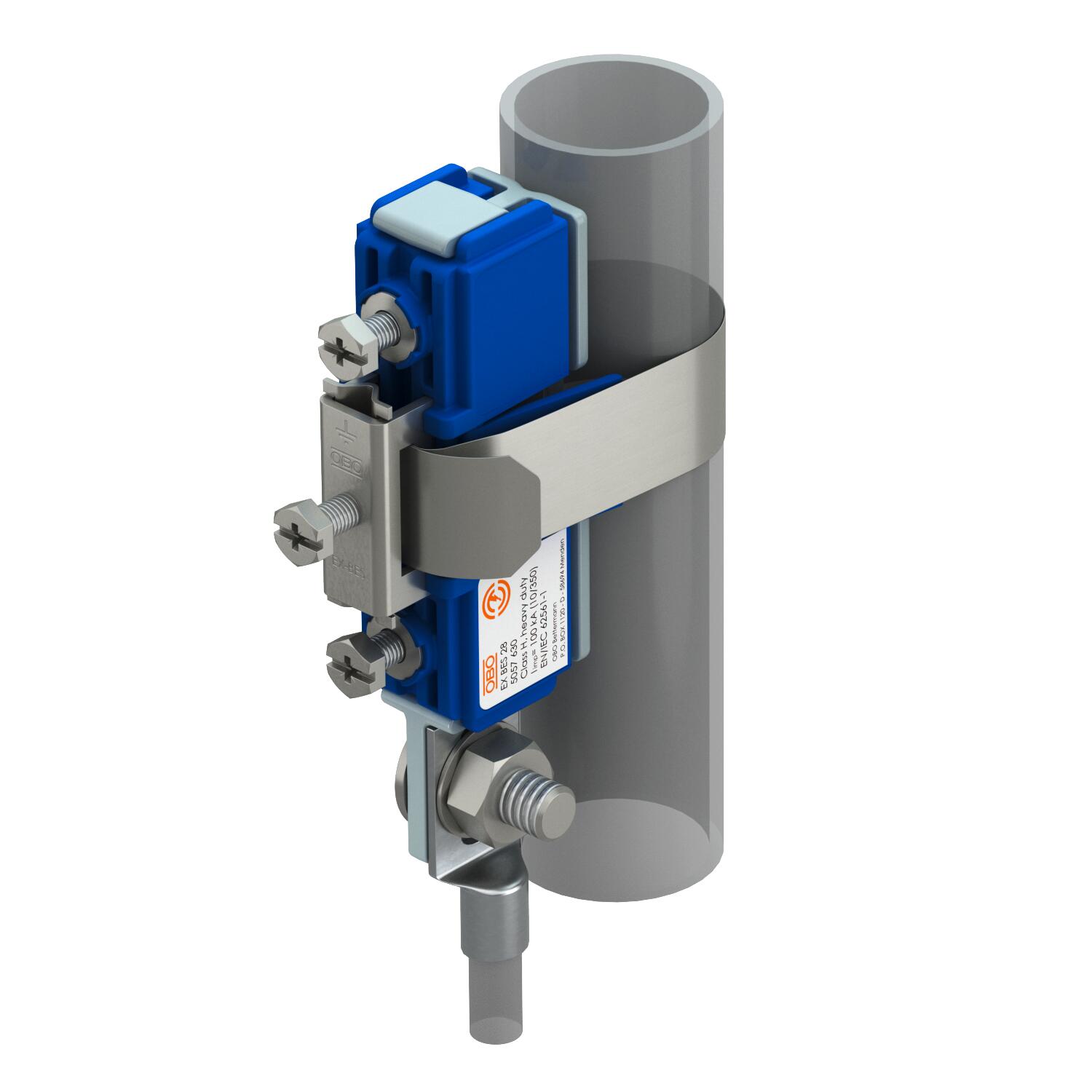

Earthing pipe clamp for EX Zone 1/21, 2/22
Item no. 5057640 | EAN 4012196672820
- Product description
-
Product descriptionFor ignition spark-free protection/functional equipotential bonding according to DIN VDE 0100-410/-540 and ignition spark-free lightning protection equipotential bonding according to VDE 0185-305 (IEC 62305) in systems according to VDE 0165-1 (IEC/EN 60079-14).
• For pipes of 6–500 mm external diameter
• Use in potentially explosive areas, Ex zone 1 and 2/21 and 22
• Tested according to explosion group IIC
• Lightning current carrying capacity class H (100 kA) to VDE 0185-561-1 (IEC/EN 62561-1)
• UV-resistant and halogen-free plastic hood
• Secured with bolts against self-loosening to VDE 0185-305-3, Supplementary Sheet 2
• Suitable for indoor and outdoor applications
-
- Technical data
-
Technical data

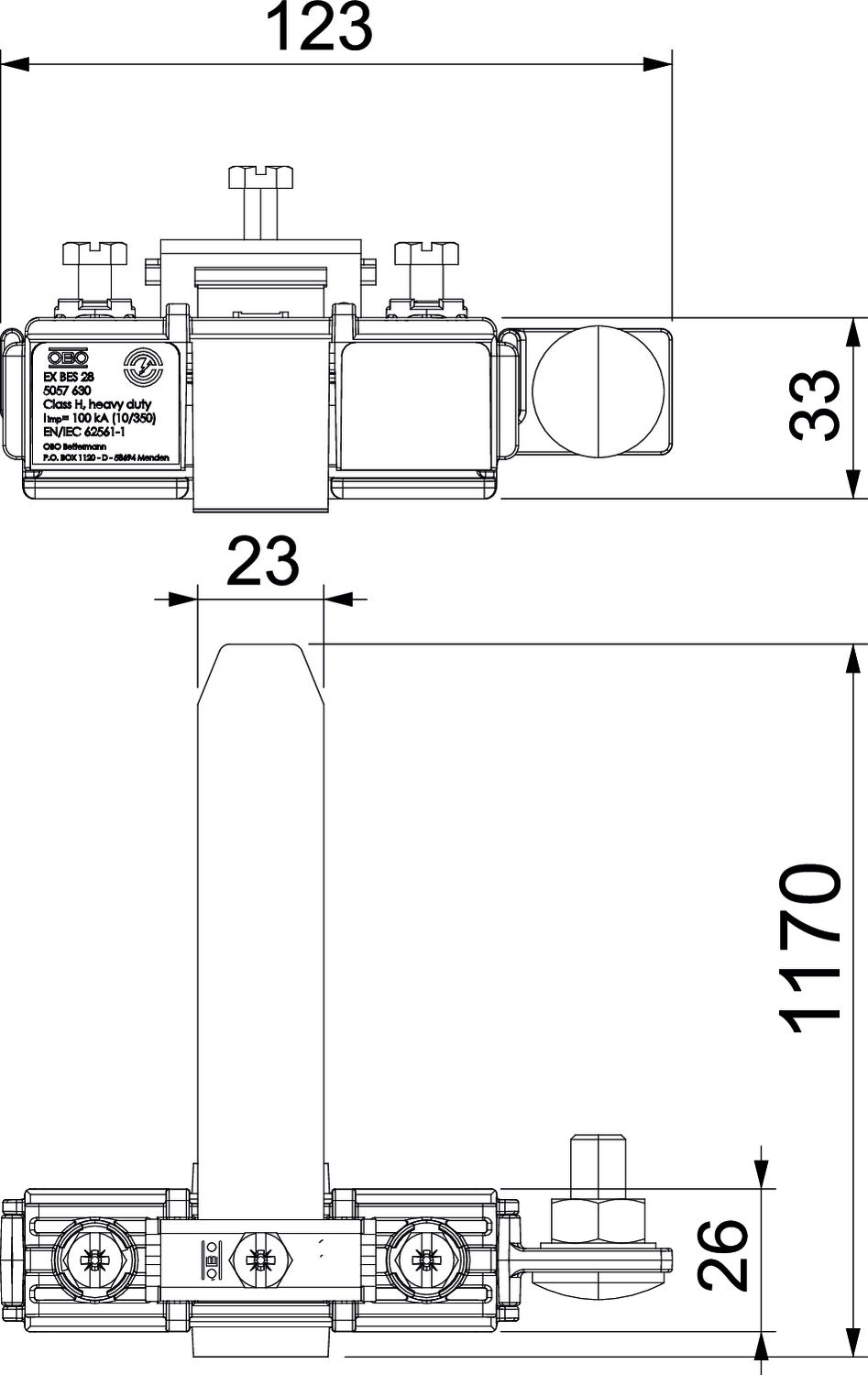

Cross-section of cable to be connected, max. 78 mm² Cross-section of cable to be connected, min. 16 mm² Dimension 300mm Dimension L 1170 mm For pipe diameter, max. 300 mm For pipe diameter, min. 28 mm Lightning current carrying capacity H/100 kA Number of conductors 2 - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

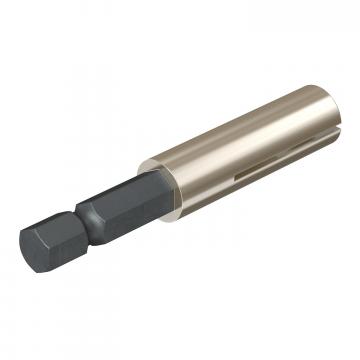

Pre-tensioner bit for earthing pipe clamps
927 BES VSW 25 A 5057694 100 piece - Downloads
-
Data sheet EX BES 300 / 5057640 , 0.18MB , pdfEU declaration of conformity EX BES 300 / 5057640 , 0.10MB , pdfREACH Declaration of conformity EX BES 300 / 5057640 , 0.12MB , pdfRoHS Declaration of conformity EX BES 300 / 5057640 , 0.12MB , pdfTest certificate Test report, DEKRA EX BES , 0.15MB , pdfMounting instructions Mounting instructions, EX BES earthing pipe clamp , 0.02MB , pdf
