Earthing pipe clamp, nickel-plated

Item no. 5057507 | EAN 4012195388517

5057507 / 927 0
109.5 mm
Product description

Product description

• For pipe Ø 8-22 mm

• Connection options: max. 2 conductors 2.5-10 mm²

• Clamp elements and screws from nickel-plated brass

• Tightening strap from high-grade stainless steel (V2A)
Technical data

Technical data

Clamping range D, max. 22 mm
Clamping range D, min. 8 mm
Cross-section of cable to be connected, max. 10 mm²
Cross-section of cable to be connected, min. 2,5 mm²
Dimension 8-22mm
For pipe diameter, max. 22 mm
For pipe diameter, min. 8 mm
Material Brass
Number of conductors 2
Surface Nickel-plated

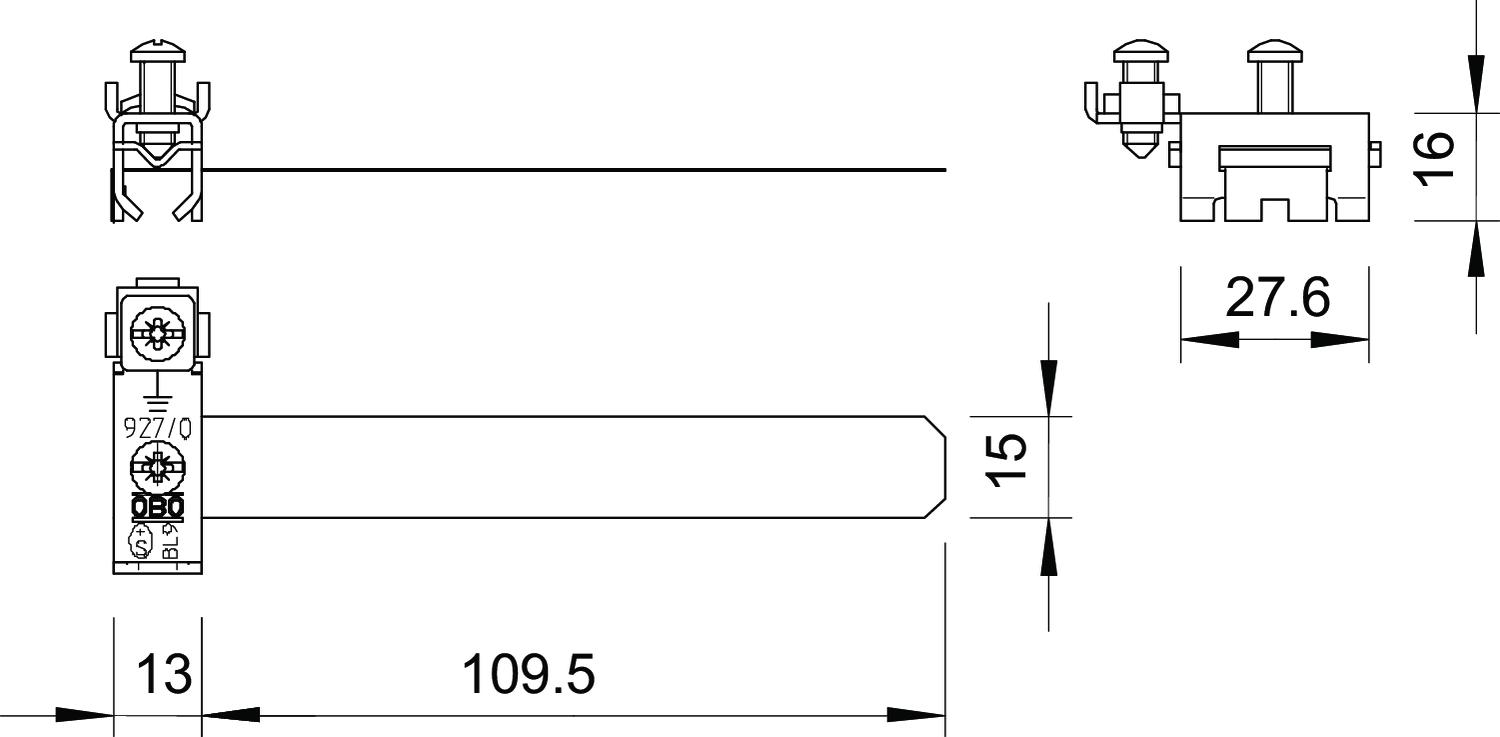

Dimensions

Dimension L 109,5 mm
All types

All types

Types Dimension L Item no. Quantity SSU
927 0 109.5 mm 5057507
10 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Pre-tensioner bit for earthing pipe clamps Pre-tensioner bit for earthing pipe clamps 927 BES VSW 25 A 5057694
1 piece
Downloads

Download

Download

Declaration of conformity 927 0 / 5057507 , 0.10MB , pdf
Download
REACH Declaration of conformity 927 0 / 5057507 , 0.12MB , pdf
RoHS Declaration of conformity 927 0 / 5057507 , 0.12MB , pdf

927 0 / 5057507
Download
