Earthing pipe clamp VA

Item no. 5057582 | EAN 4012195901396

Item no. / Types

Dimension L

Clamping range D

Product description

Product description

927/S-1: Strip earthing clip

• For pipes of Ø 3/8 - 1 1/2"
• Connection options: Max. 2 cables 2.5–16 mm²
• Round conductor Rd 8
• Clip element made of strip-galvanised steel
• Tightening strap made of rustproof stainless steel (VA)

Technical data

Technical data

Cross-section of cable to be connected, max.	25 mm²
Cross-section of cable to be connected, min.	2,5 mm²
Dimension	3/8-11/2"

Lightning current carrying capacity	N/50 kA
Material	Stainless steel
Number of conductors	2

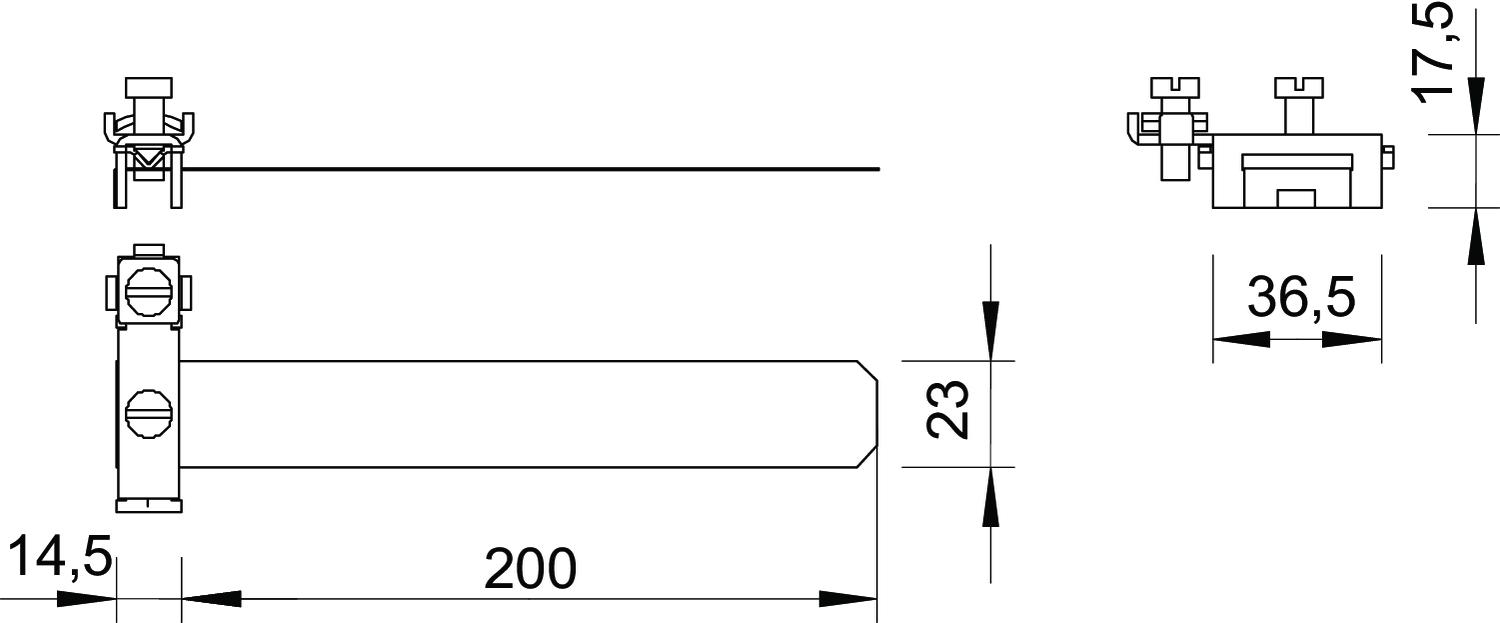

Dimensions

Dimension L	200 mm

All types

All types

Types	Dimension L	Clamping range D	Item no.	Quantity	SSU
927 1	200 mm	3/8 - 1 1/2	5057515	piece	10 piece
927 2	395 mm	3/8 - 4	5057523	piece	10 piece
927 4	555 mm	3/8 - 6	5057558	piece	10 piece
927 S 1	200 mm	-	5057582	piece	30 piece
927 1 6-K	200 mm	-	5057595	piece	10 piece
