Earthing pipe clamp VA

Item no. 5057595 | EAN 4012195060734

Product description
Product description
927/S-1: Strip earthing clip

• For pipes of Ø 3/8 - 1 1/2"
• Connection options: Max. 2 cables 2.5–16 mm²
• Round conductor Rd 8
• Clip element made of strip-galvanised steel
• Tightening strap made of rustproof stainless steel (VA)
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Cross-section of cable to be connected, max. 25 mm²
Cross-section of cable to be connected, min. 2,5 mm²
Dimension 3/8-1 1/2"

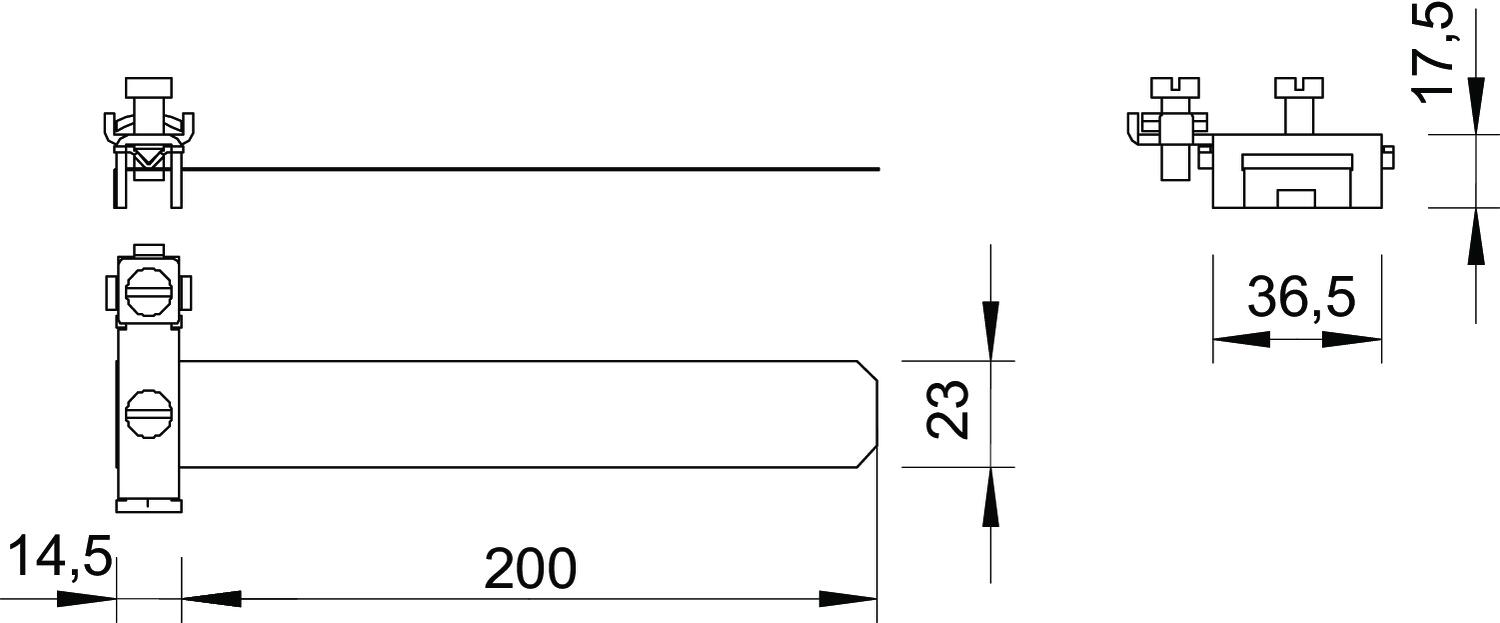

Dimension L 200 mm
Lightning current carrying capacity N/50 kA
Number of conductors 2
All types

All types

Types Dimension L Clamping range D Item no. Quantity SSU
927 1 200 mm 3/8 - 1 1/2 5057515
10 piece
927 2 395 mm 3/8 - 4 5057523
10 piece
927 4 555 mm 3/8 - 6 5057558
10 piece
927 S 1 200 mm - 5057582
30 piece
927 1 6-K 200 mm - 5057595
10 piece
Accessories

Mounting accessories

Products Types Item no. Quantity SSU
Pre-tensioner bit for earthing pipe clamps Pre-tensioner bit for earthing pipe clamps 927 BES VSW 25 A 5057694
100 piece
