Earthing pipe clamp VA

Item no. 5057558 | EAN 4012195388692

Item no. / Types

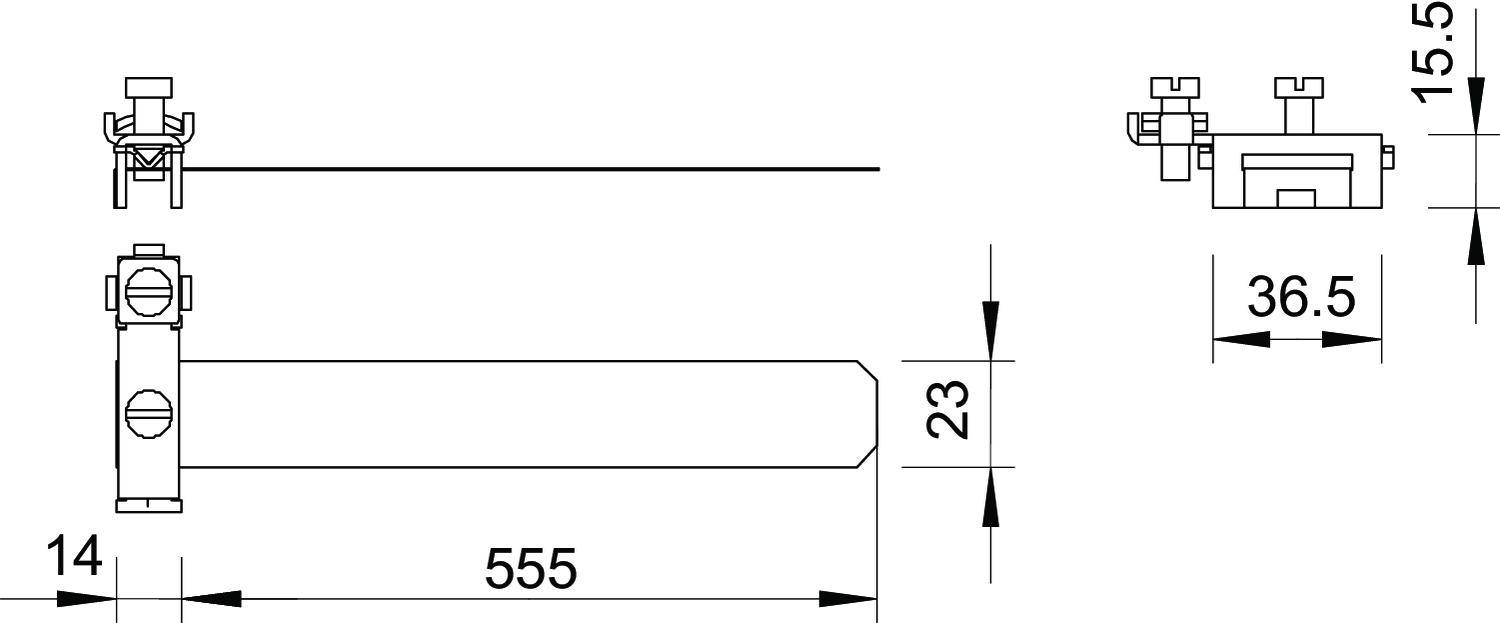

Dimension L

Clamping range D

Product description

Product description

• For pipes of Ø 3/8 - 6"

• Connection options: Max. 2 cables 2.5-25 mm²

• Round conductor Rd 8

• Clamp element, bolts and tightening strap made of rustproof stainless steel (VA)

Technical data

Technical data

Clamping range D	3/8 - 6
Clamping range D, max.	165 mm
Clamping range D, min.	17,2 mm
Cross-section of cable to be connected, max.	25 mm²
Cross-section of cable to be connected, min.	2,5 mm²
Dimension	3/8-6"

Dimension L	555 mm
For pipe diameter, max.	165 mm
For pipe diameter, min.	17,2 mm
Lightning current carrying capacity	N/50 kA
Material	Stainless steel
Number of conductors	2

All types

All types

Types	Dimension L	Clamping range D	Item no.	Quantity	SSU
927 1	200 mm	3/8 - 1 1/2	5057515	piece	10 piece
927 2	395 mm	3/8 - 4	5057523	piece	10 piece
927 4	555 mm	3/8 - 6	5057558	piece	10 piece
927 S 1	200 mm	-	5057582	piece	30 piece
927 1 6-K	200 mm	-	5057595	piece	10 piece
