Earthing rail for UF separation point 240 | Copper |

morepic-1

morepic-2

Earthing rail for UF separation point

Item no. 5106050 | EAN 4012196439614

Item no. / Types	5106050 / 5700 PIP EB

Length	240 mm

Material	Copper

Product description

Product description

• For UF test box 5700 CIP/PIP
• With 5 connection holes
• Diameter of drill hole 11 mm

Technical data

Technical data

Dimension	240mm
Fit	M10 mm
Height	6 mm

Length	240 mm
Material	Copper
Width	30 mm

All types

All types

Types	Length	Material	Item no.	Quantity	SSU
5700 PIP EB	240 mm	Copper	5106050	piece	40 piece

Downloads

Data sheet 5700 PIP EB / 5106050 , 0.15MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Catalogue External lightning protection , 19.55MB , pdf

Mounting instructions Mounting instructions, 5700; 5700 SP , 2.00MB , pdf

Download

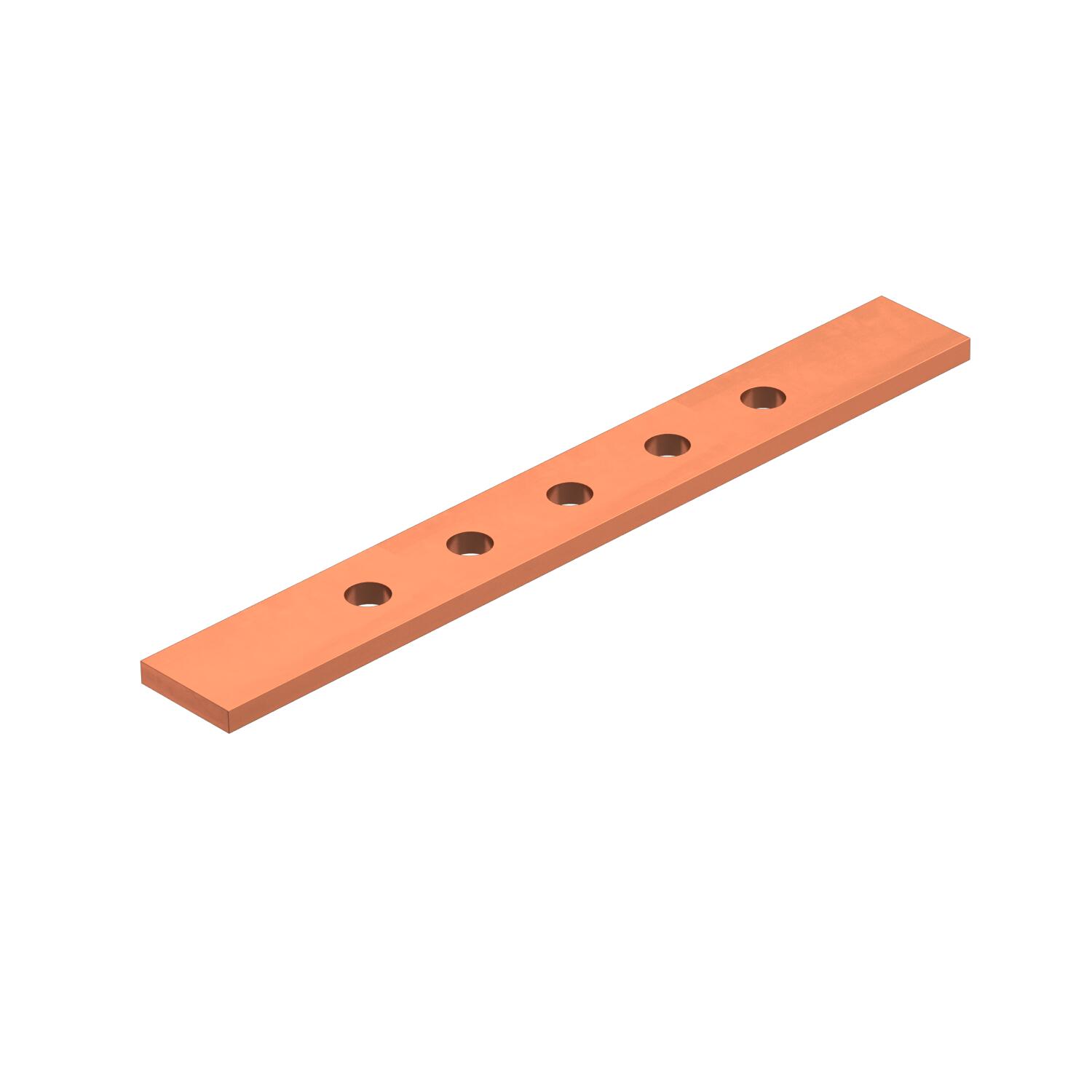

Product graphic 5700 PIP EB / 5106050, 33.78 kB, jpg

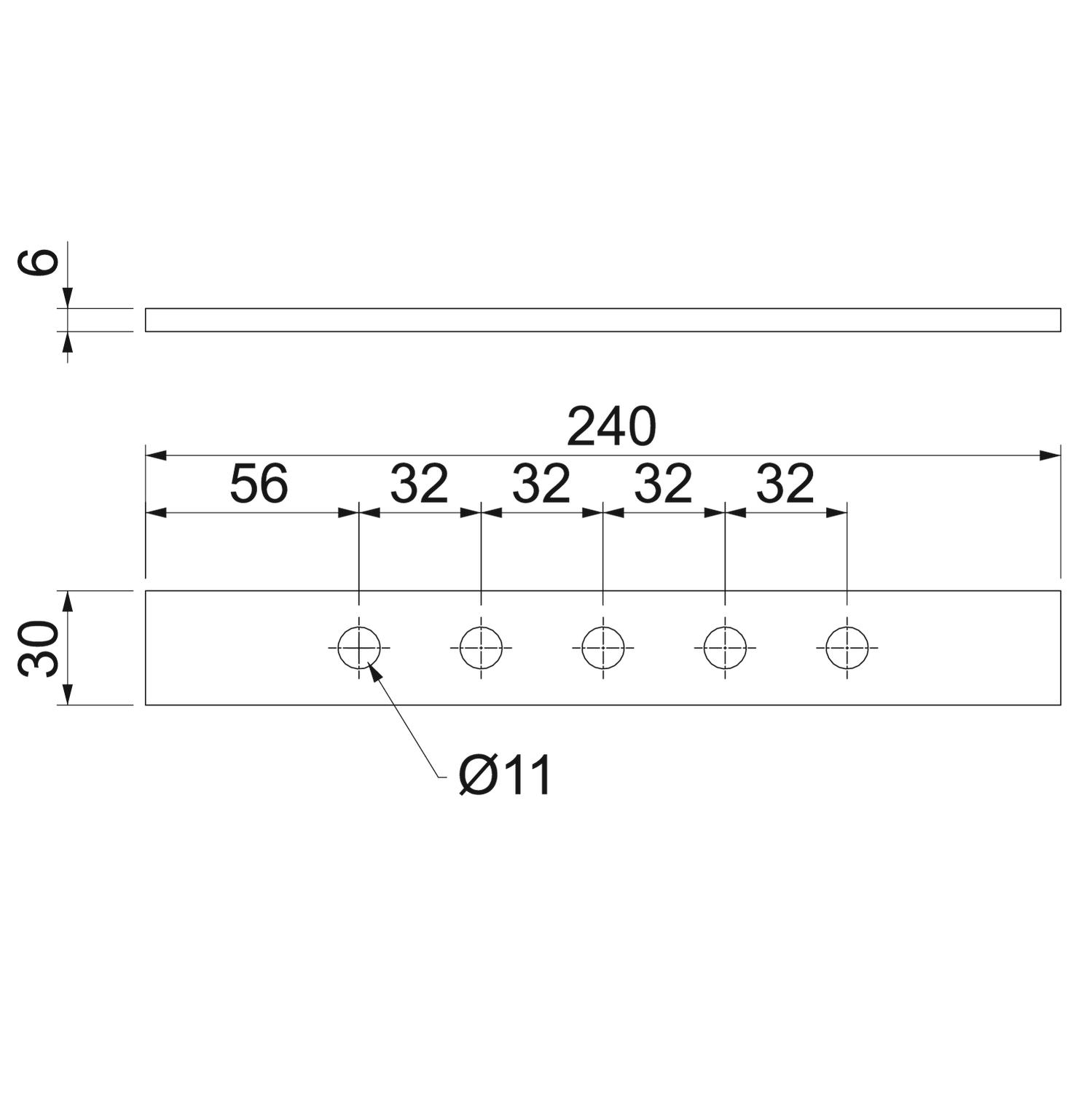

Scale drawing 5700 PIP EB / 5106050, 59.23 kB, jpg

5700 PIP EB / 5106050
