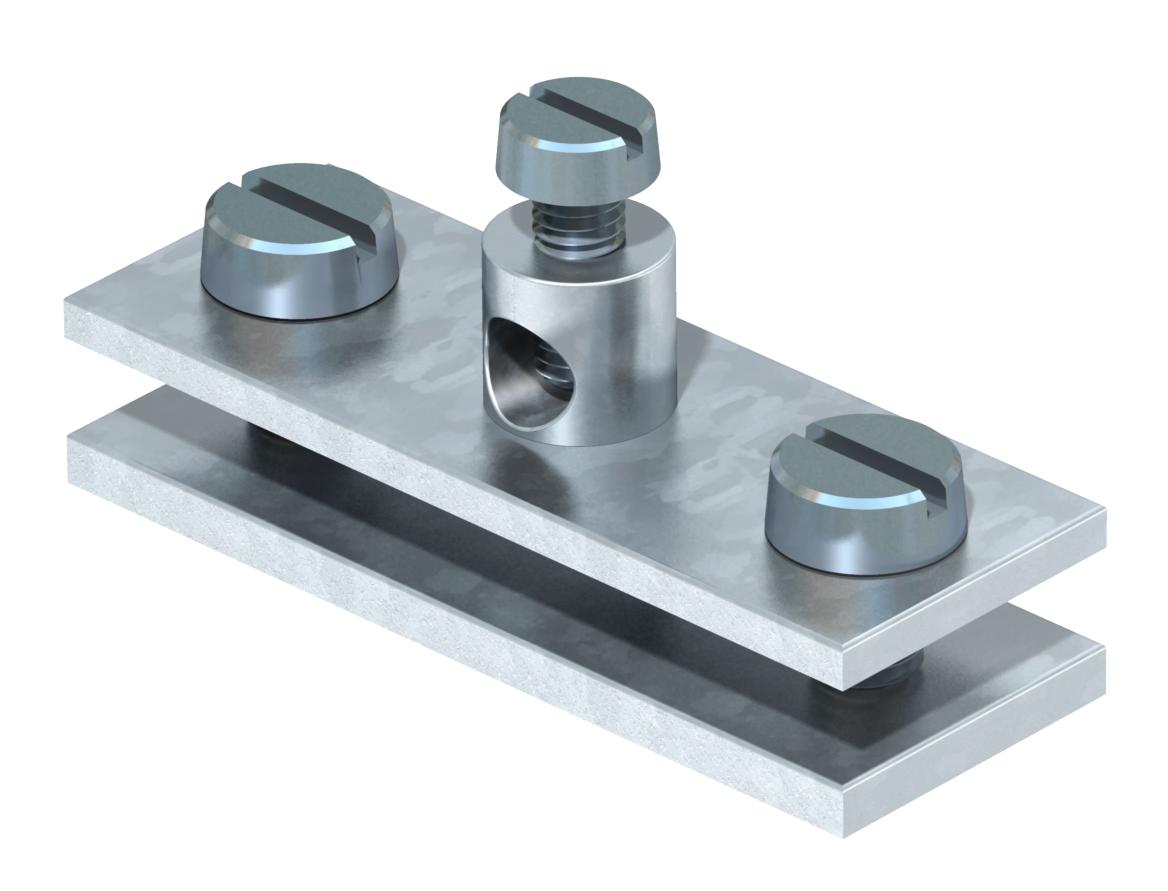

Earthing terminal for cables and flat conductors G

Item no. 5043107 | EAN 4012195386056

5043107 / 939
Round conductor
Product description
Product description
• For cables to 16 mm² and flat conductors
• Fit: cable to 16 mm² x max. FL 30
• With riveted brass connection terminal and one cylinder bolt, M5 x 12, with two cylinder bolts, M6 x 16
Technical data

Technical data

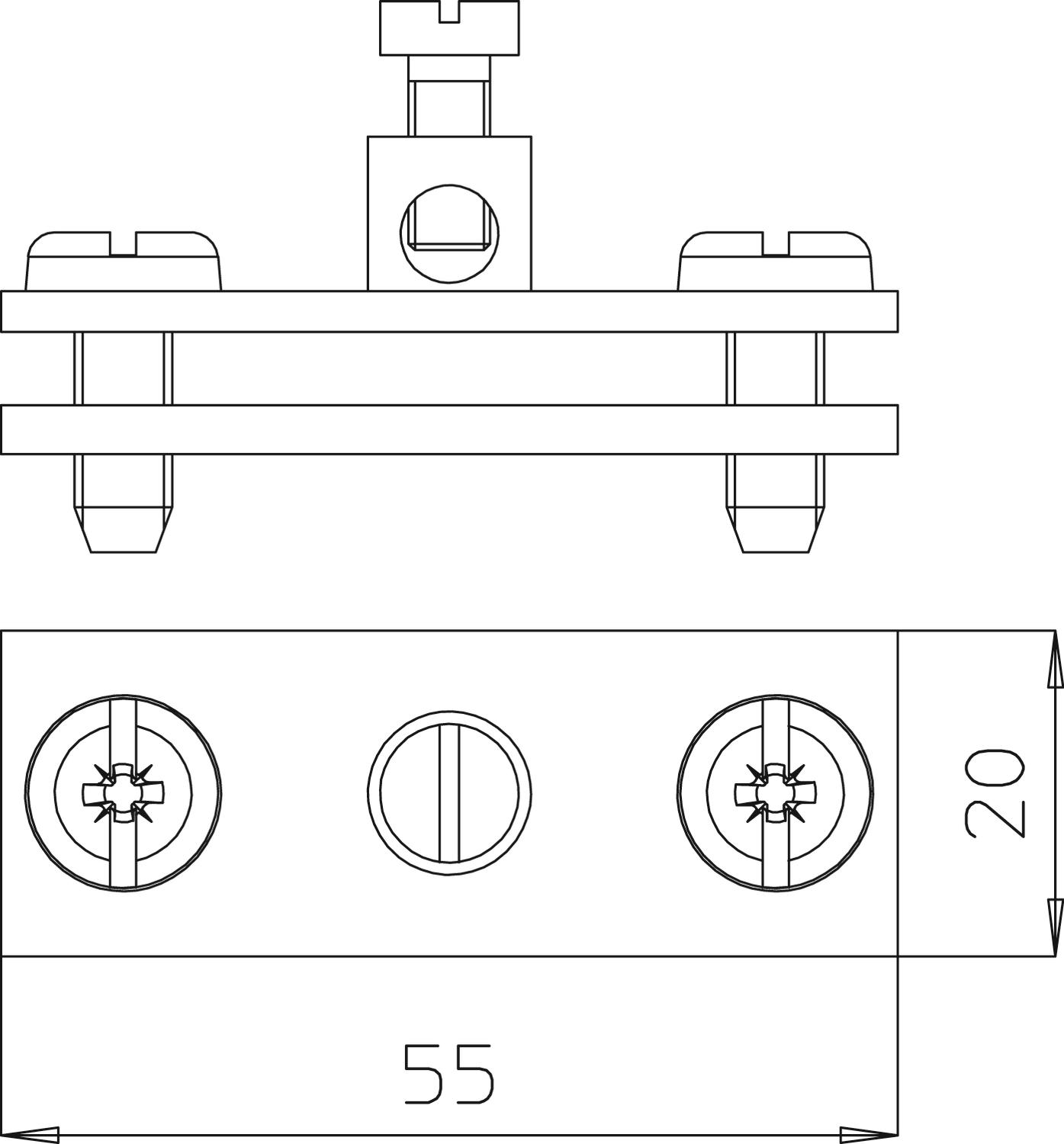

Dimension 55mm
Material Steel
Suitable for Round conductor
Surface Electrogalvanized
All types

All types

Types Suitable for Item no. Quantity SSU
939 Round conductor 5043107
25 piece
Downloads

Download

Download

EU declaration of conformity 939 / 5043107 , 0.06MB , pdf
REACH Declaration of conformity 939 / 5043107 , 0.13MB , pdf
RoHS Declaration of conformity 939 / 5043107 , 0.12MB , pdf

939 / 5043107
