Product description

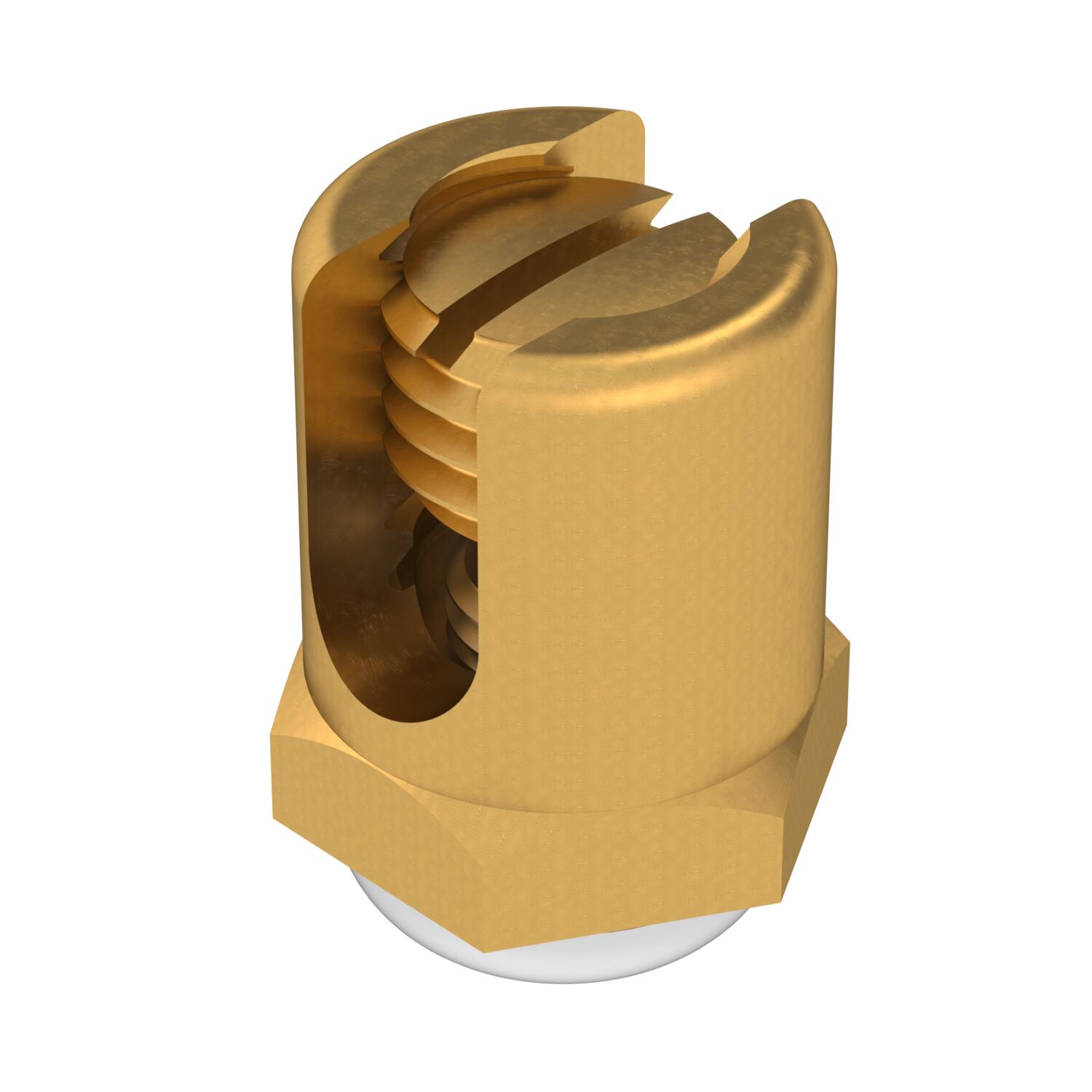

Earthing terminal for fastening the equipotential bonding wire to the cable support system. M12 threaded pin with slot. Suitable for conductor cross sections of 4-50 mm². With serrated washer and lenshead screw.
- Technical data
-
Technical data
Cross-section 50 mm² Dimension 4-50mm² Dimension l 8 mm Dimension L 22 mm Height 26 mm Length 25 mm Maintain electrical functions no Material Brass Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Thread M8 WAF 18 With screw accessories no - All types
- Downloads
-
Data sheet EKL 25 M8 / 6404001 , 0.14MB , pdfDeclaration of conformity EKL 25 M8 / 6404001 , 0.13MB , pdfREACH Declaration of conformity EKL 25 M8 / 6404001 , 0.12MB , pdfRoHS Declaration of conformity EKL 25 M8 / 6404001 , 0.12MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
