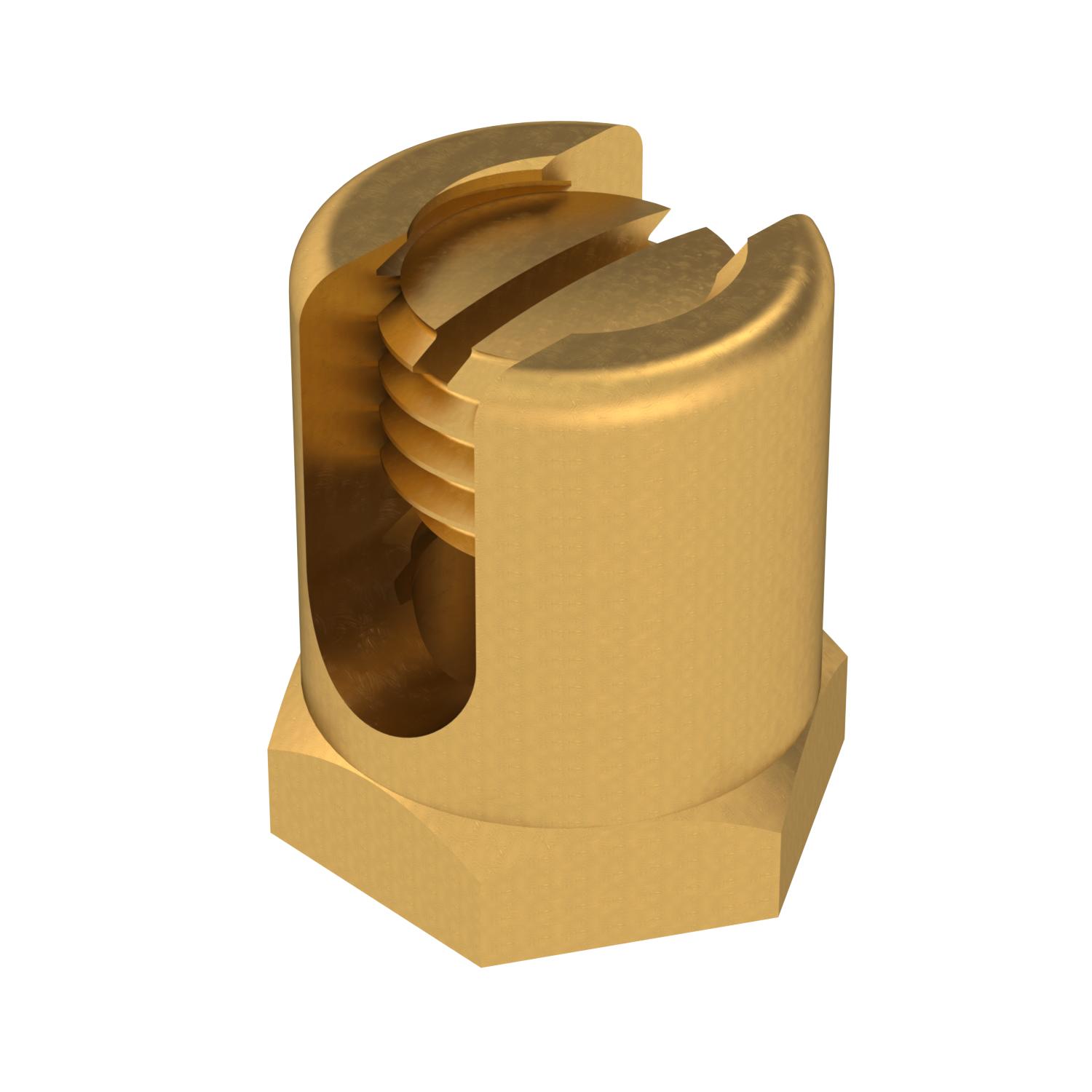

Earthing terminal with fastening thread
Item no. 6404006 | EAN 4012196049080
- Product description
-
Product descriptionEarthing terminal for fastening the equipotential bonding wire to the cable support system. M12 threaded pin with slot.
Suitable for conductor cross sections of 4–50 mm².
-
- Technical data
-
Technical data
Colour Brass CO₂ Footprint (GWP) Cradle-to-Gate 0,078 kg CO₂e / 1 Piece Cross-section 50 mm² Dimension 4-50mm² Dimension l 8 mm Dimension L 22 mm Height 22 mm Length 25 mm Maintain electrical functions no Material Brass Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Thread M6 WAF 18 Width 18 mm With screw accessories no - All types
- Downloads
-
Data sheet EKL 25 M6 / 6404006 , 0.17MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity EKL 25 M6 / 6404006 , 0.10MB , pdfUK Declaration of Conformity EKL 25 M6 / 6404006 , 0.14MB , pdfREACH Declaration of conformity EKL 25 M6 / 6404006 , 0.13MB , pdfRoHS Declaration of conformity EKL 25 M6 / 6404006 , 0.13MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
