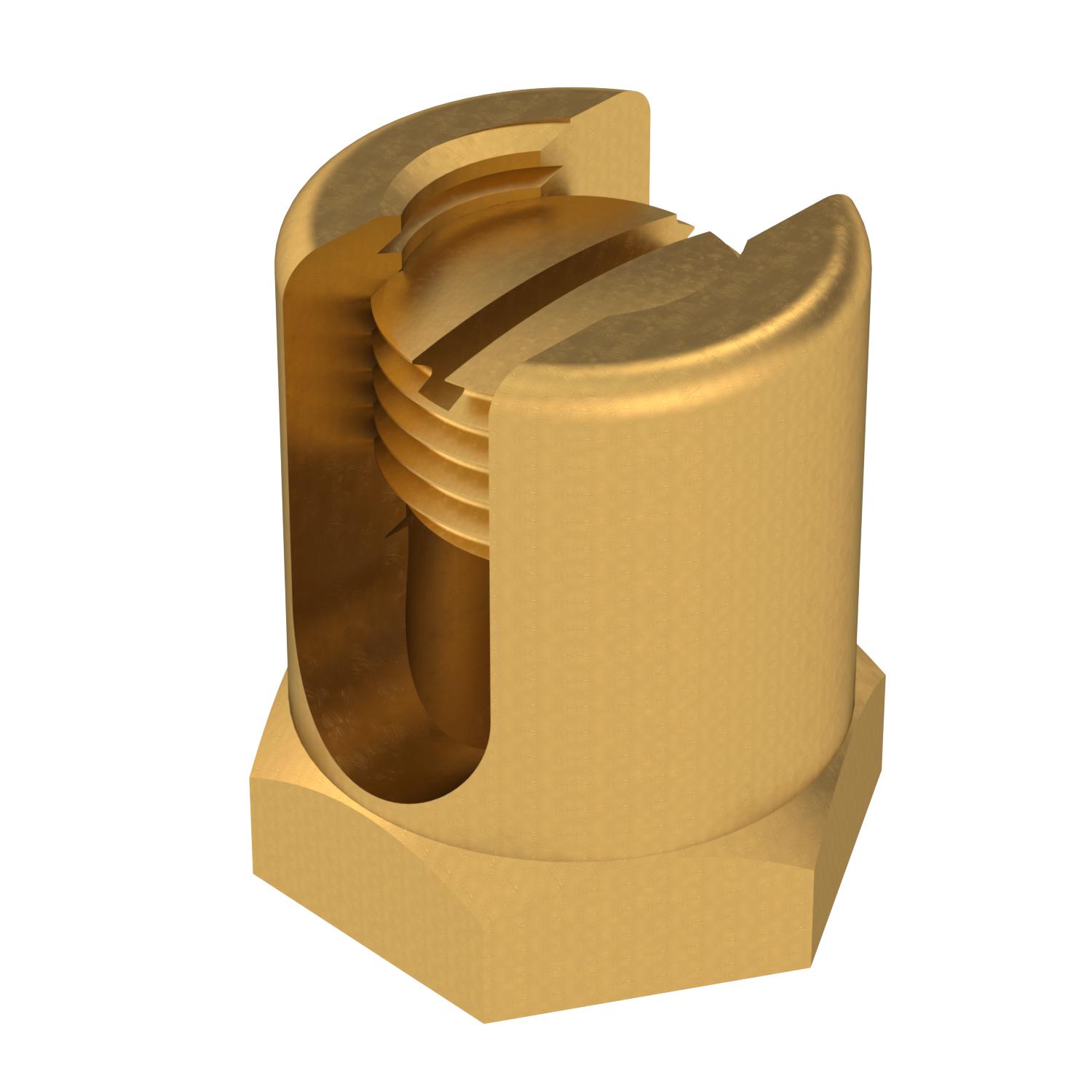

Earthing terminal with fastening thread
Item no. 6404014 | EAN 4012196049202
- Product description
-
Product description
Earthing terminal for fastening the equipotential bonding wire to the cable support system. M14 threaded pin with slot. Suitable for conductor cross sections of 25 - 75 mm².
-
- Technical data
-
Technical data
Cross-section 75 mm² Dimension 25-75mm² Dimension l 10 mm Dimension L 26 mm Height 26 mm Maintain electrical functions no Material Brass Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable tray yes Suitable for mesh cable tray no Thread M6 WAF 21 Width 21 mm With screw accessories no - All types
- Downloads
-
Data sheet EKL 35 M6 / 6404014 , 0.30MB , pdfDeclaration of conformity EKL 35 M6 / 6404014 , 0.10MB , pdfUK Declaration of Conformity EKL 35 M6 / 6404014 , 0.14MB , pdfREACH Declaration of conformity EKL 35 M6 / 6404014 , 0.12MB , pdfRoHS Declaration of conformity EKL 35 M6 / 6404014 , 0.12MB , pdfMounting instructions Schraubbare Kabelrinnen mit Formteilen zum Schrauben und Klemmen , 5.42MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
