Edge protection ring KSR 30030, for LKM cable duct type 30030 |
morepic-1 morepic-2

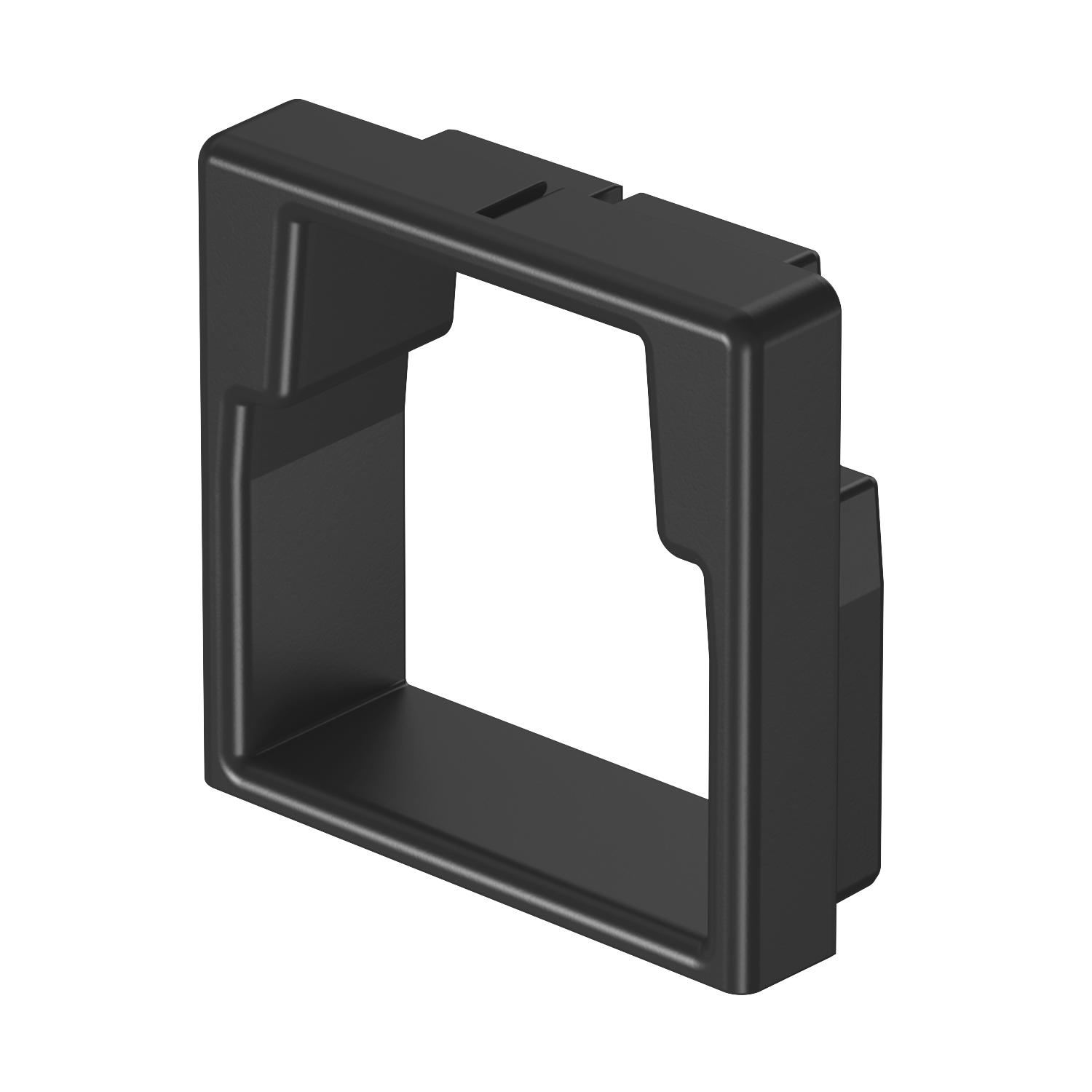

Edge protection ring KSR 30030, for LKM cable duct type 30030

Item no. 6249746 | EAN 4012197376888

Product description
Product description
Edge protection ring for the open ends of LKM cable trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Graphite black; RAL 9011

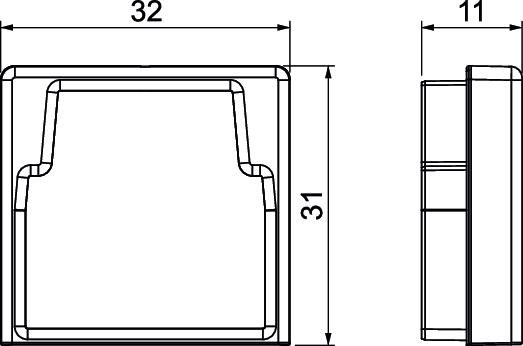

Dimension 30x30mm
Halogen-free yes
Height 31 mm
Length 11 mm
Material Thermoplastic elastomer
Suitable for Cable routing duct
Type Injection-moulded part
Width 32 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
LKM KSR30030 6249746
5 piece
Downloads

Download

Download
Download

EU declaration of conformity LKM KSR30030 / 6249746 , 0.15MB , pdf
Download
UK Declaration of Conformity LKM KSR30030 / 6249746 , 0.14MB , pdf
Download

Mounting instructions LKM-Kanal , 0.77MB , pdf
Download

No invitation to tender text is available for this product.
