Edge protection ring KSR 60060, for LKM cable trunking type 60060

Item no. 6249752 | EAN 4012197377007

Product description
Product description

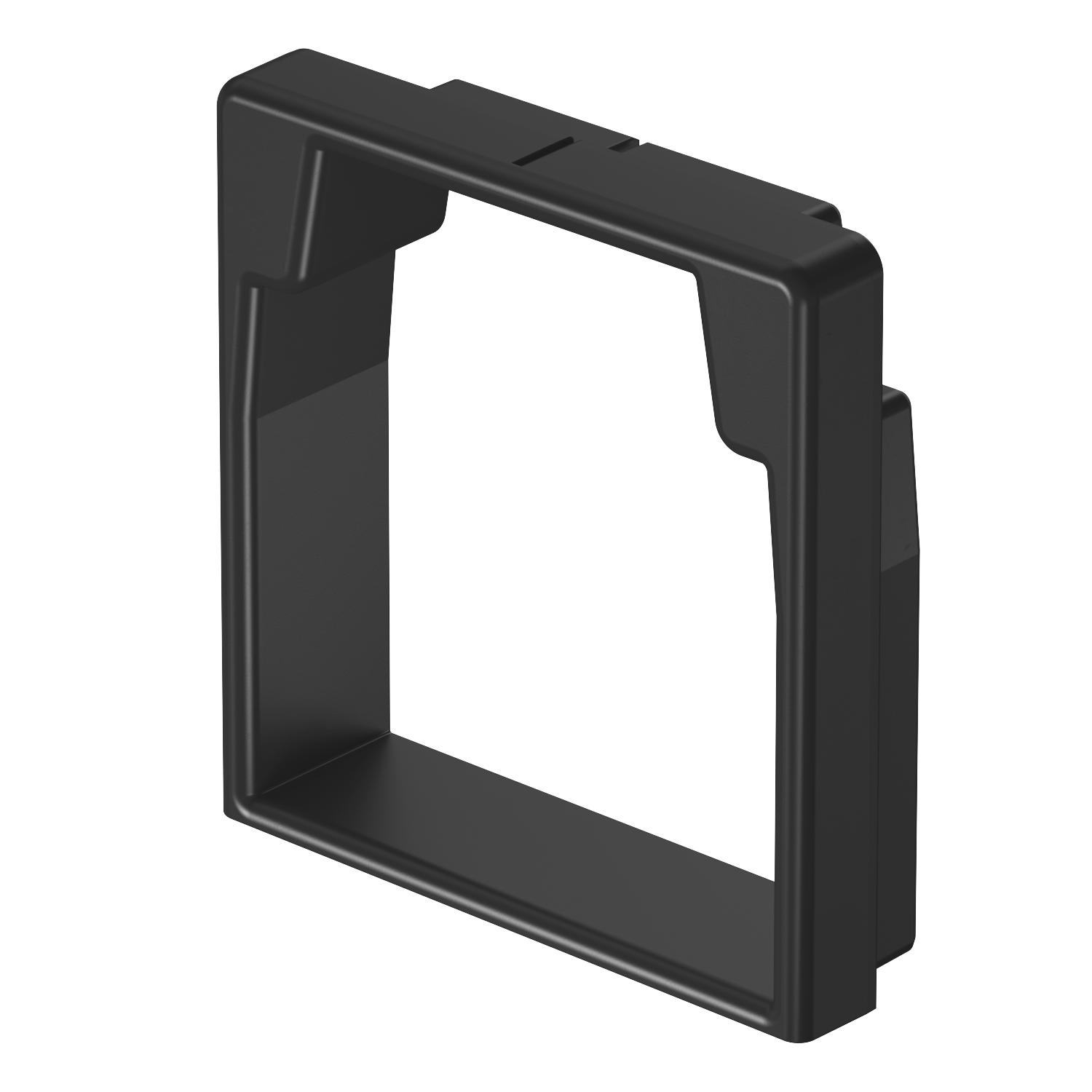

Edge protection ring for the open ends of LKM cable trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
Technical data

Technical data

Colour Graphite black; RAL 9011

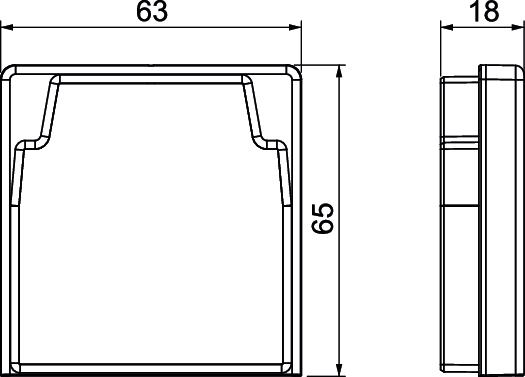

Dimension 60x60mm
Halogen-free yes
Height 65 mm
Length 18 mm
Material Thermoplastic elastomer
Suitable for Cable routing duct
Type Injection-moulded part
Width 63 mm
All types

All types

Types Dimension a Dimension b Item no. Quantity SSU
LKM KSR60060 6249752
5 piece
Downloads

Download

Download
Download

EU declaration of conformity LKM KSR60060 / 6249752 , 0.10MB , pdf
Download
UK Declaration of Conformity LKM KSR60060 / 6249752 , 0.14MB , pdf
Download

Mounting instructions LKM-Kanal , 0.77MB , pdf
Download

No invitation to tender text is available for this product.
