EDS plug-in seal, light black | 17 | M20 | Black
morepic-1 morepic-2

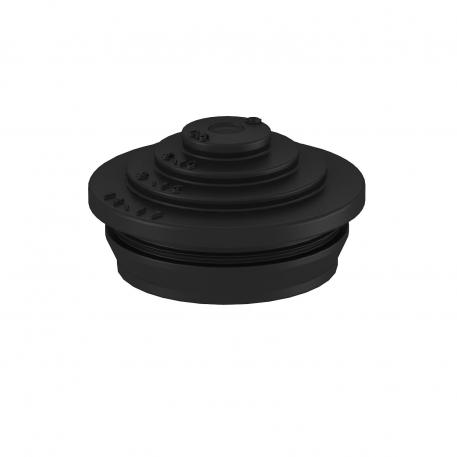

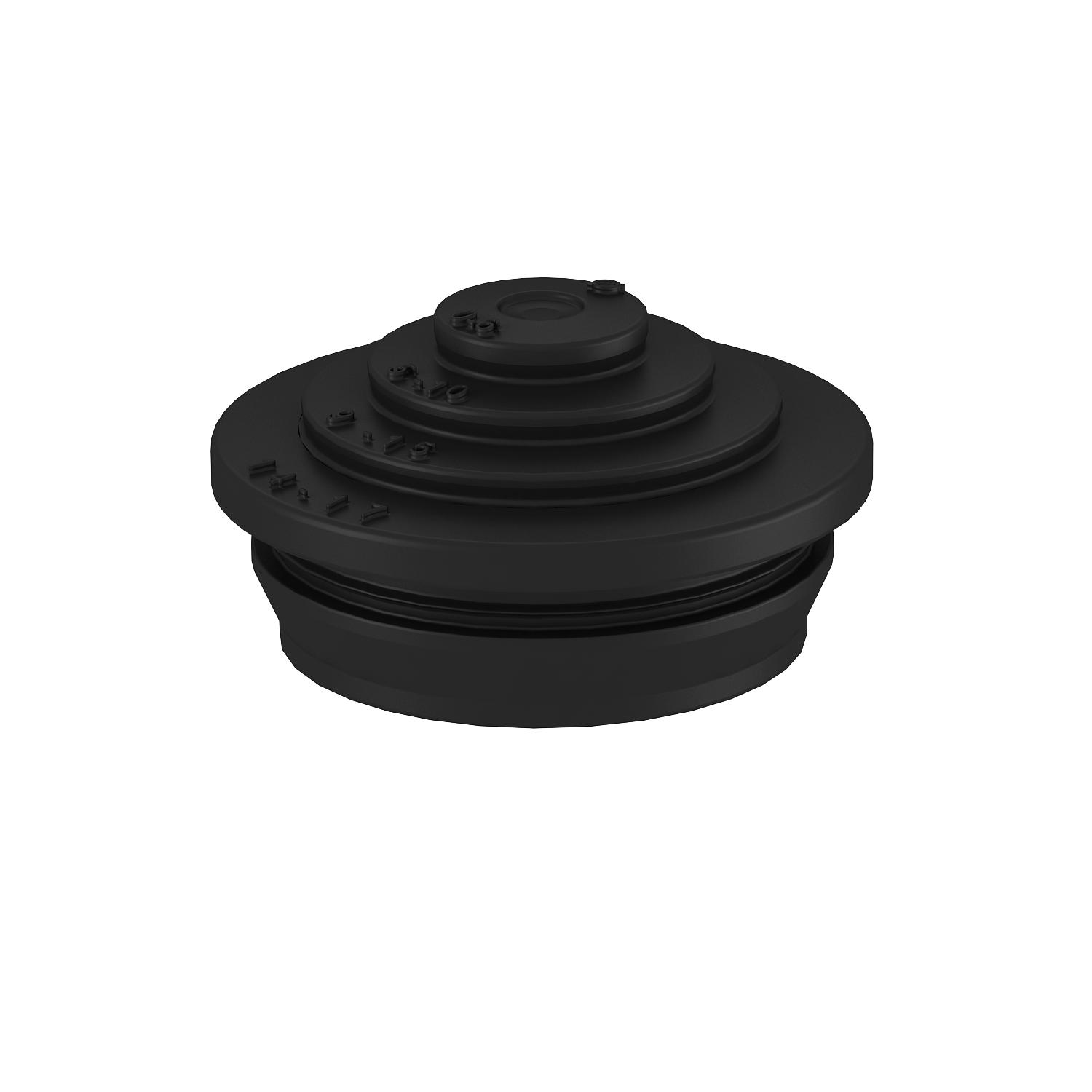

EDS plug-in seal, light black

Item no. 2012340 | EAN 4012196619603

Product description
Product description
The push-in nipple can be cut back to suit the relevant cable diameter.
  • Indication of metric products
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

Colour Black

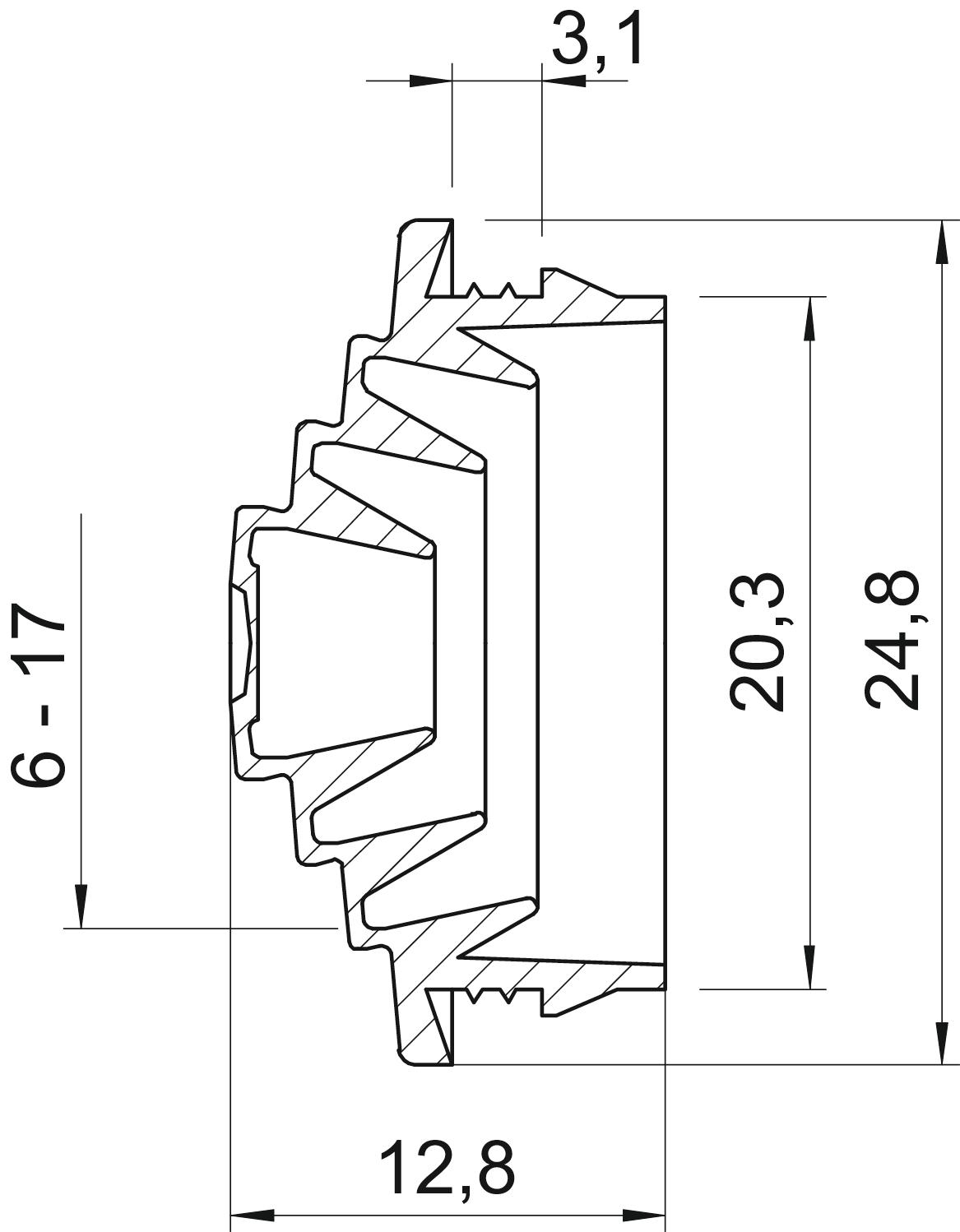

Dimension M20
Dimension A 3,1 mm
Dimension D1 24,8 mm
Dimension D2 20,3 mm
Dimension D3 6 mm
Dimension D4 10 mm
Dimension D5 15 mm
Dimension L 12,8 mm
Dimension t 3,1 mm
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max. 17 mm
for wall thickness, max. 3,1
for wall thickness, min. 2,5
Halogen-free yes
Material Thermoplastic elastomer
Nominal diameter 20 mm
Protection rating IP54
Size M20
Version for Cuttable
All types

All types

Types for diameter, max. Size Colour Item no. Quantity SSU
EDS M20 SW 17 mm M20 Black 2012340
100 piece
EDS M25 SW 22 mm M25 Black 2012342
100 piece
EDS M32 SW 28 mm M32 Black 2012344
50 piece
EDS M20 LGR 17 mm M20 Light grey; RAL 7035 2012350
100 piece
EDS M25 LGR 22 mm M25 Light grey; RAL 7035 2012354
100 piece
EDS M32 LGR 28 mm M32 Light grey; RAL 7035 2012358
50 piece
