EDS plug-in seal, light grey | 22 | M25 | Light grey; RAL 7035
morepic-1 morepic-2

EDS plug-in seal, light grey

Item no. 2012354 | EAN 4012196478071

Product description

Product description

The push-in nipple can be cut back to suit the relevant cable diameter.
  • Indication of metric products
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 54
  • Thread metric
Technical data

Technical data

Colour Light grey; RAL 7035
Dimension M25
Flame-resistant acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max. 22 mm
for wall thickness, max. 3,1
for wall thickness, min. 2,5
Halogen-free yes
Material Thermoplastic elastomer
Nominal diameter 25 mm
Protection rating IP54
Size M25
Version for Cuttable

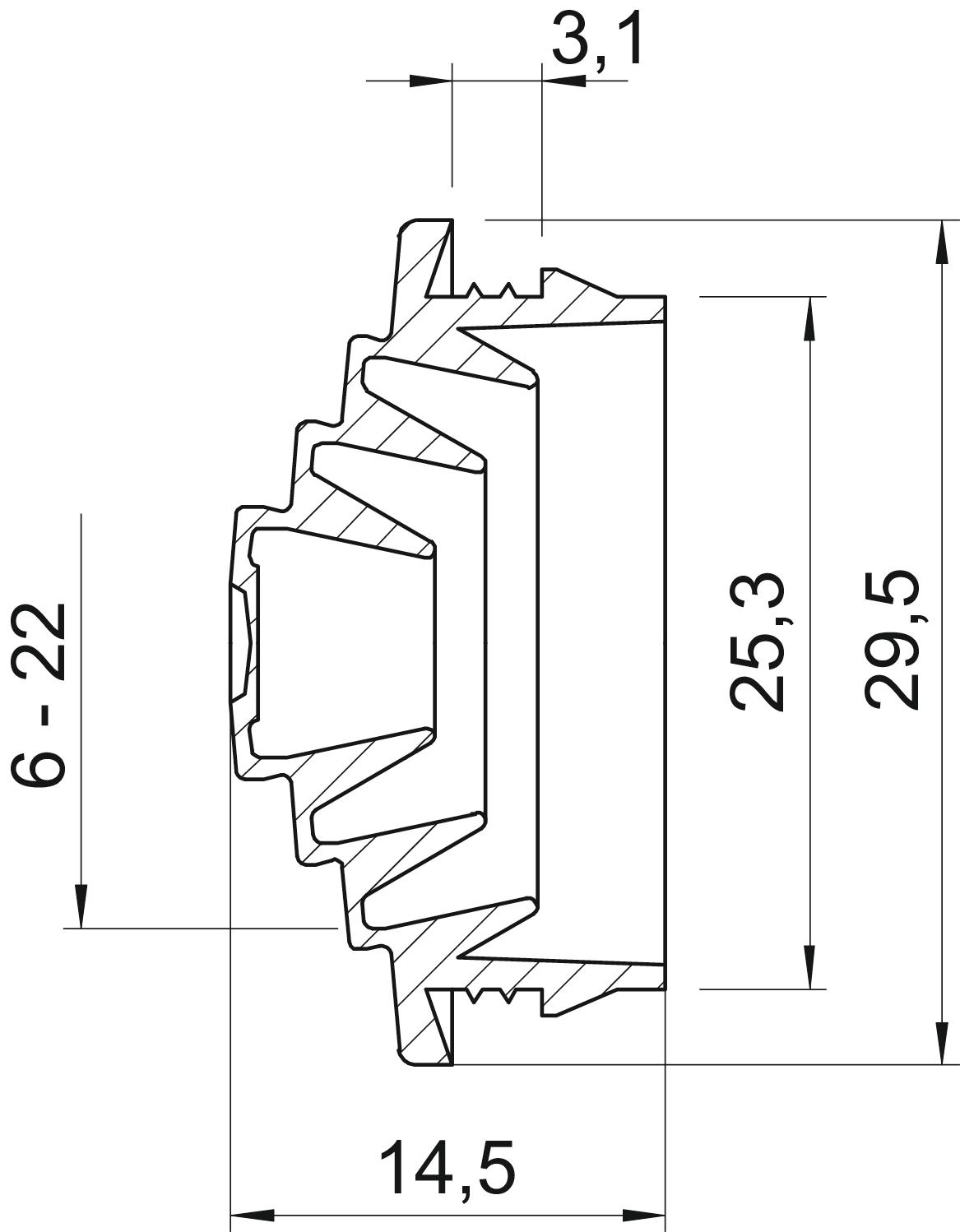

Dimensions

Dimension A 3,1 mm
Dimension D1 29,5 mm
Dimension D2 25,3 mm
Dimension D3 6 mm
Dimension D4 10 mm
Dimension D5 15 mm
Dimension L 14,5 mm
Dimension t 3,1 mm
All types

All types

Types for diameter, max. Size Colour Item no. Quantity SSU
EDS M20 SW 17 mm M20 Black 2012340
100 piece
EDS M25 SW 22 mm M25 Black 2012342
100 piece
EDS M32 SW 28 mm M32 Black 2012344
50 piece
EDS M20 LGR 17 mm M20 Light grey; RAL 7035 2012350
100 piece
EDS M25 LGR 22 mm M25 Light grey; RAL 7035 2012354
100 piece
EDS M32 LGR 28 mm M32 Light grey; RAL 7035 2012358
50 piece
