EI60 90° bend for PLCS D060810 fire protection duct 208 | 100 | 150 | 80 | 310

EI60 90° bend for PLCS D060810 fire protection duct

Item no. 7217880 | EAN 4012196836680

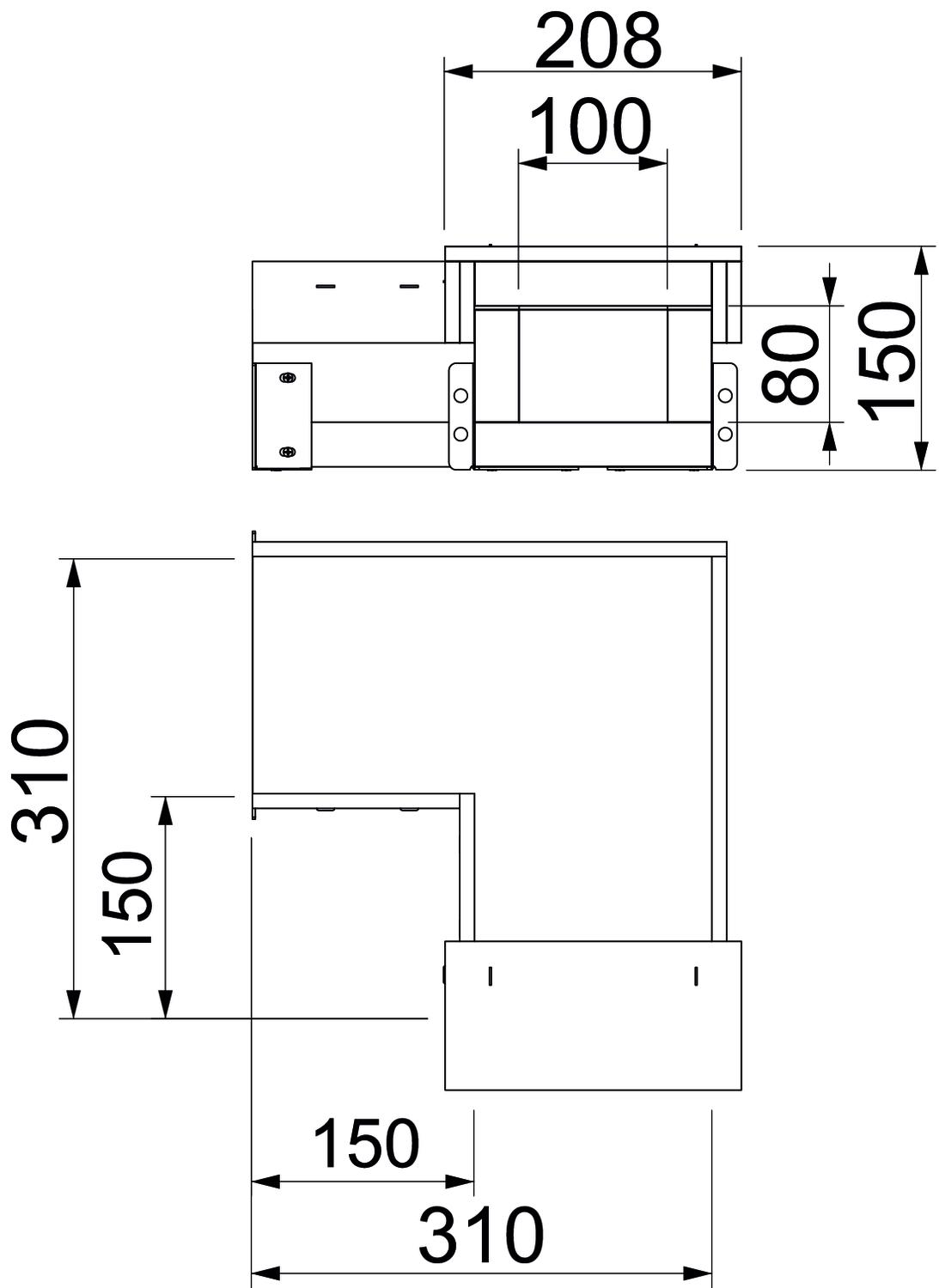

Item no. / Types

Dimension B

Dimension b

Dimension H

Dimension h

Dimension L

Product description

Product description

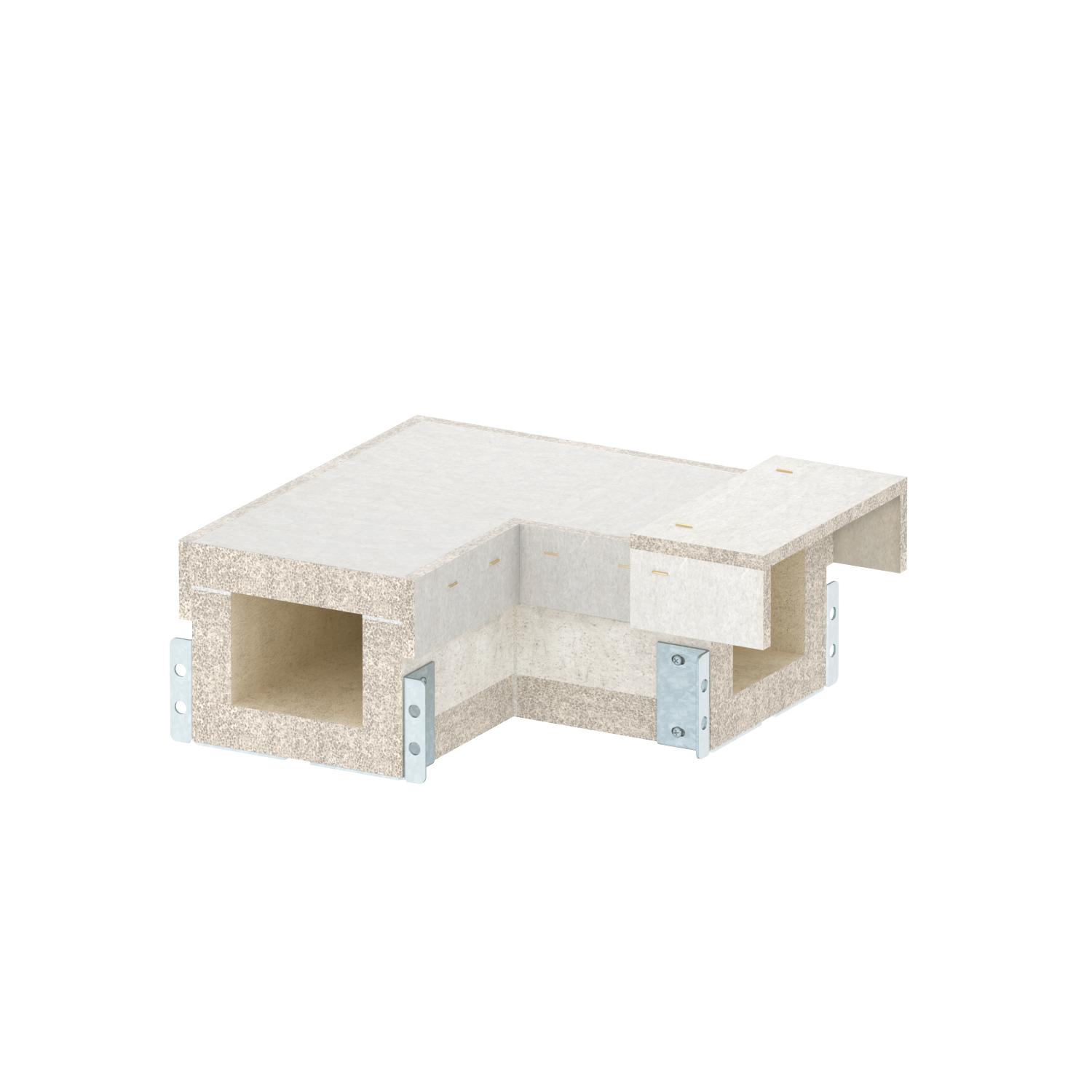

90° bend for PYROLINE® Con S EI60 fire protection duct, type PLCS D060810, consisting of fibreglass light concrete which is resistant to water and frost for the creation of horizontal changes of direction in the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.

Including connection screws and sealing strips.

Technical data

Technical data

Angle of the bend	90 °
Classification EI − installation duct	60
Colour	Grey
Cover fastening	Loose
Dimension	100x80
Dimension B	208 mm
Dimension b	100 mm
Dimension h	80 mm

Dimension H	150 mm
Dimension L	310 mm
Jacketing	Without
Material	Fibreglass lightweight concrete
Material of the insulation	Glass-fibre lightweight concrete
Number of flammable sides	4
With perforation	no
