EI60 90° bend for PLCS D061220 fire protection duct
Item no. 7217884 | EAN 4012196836697
- Product description
-

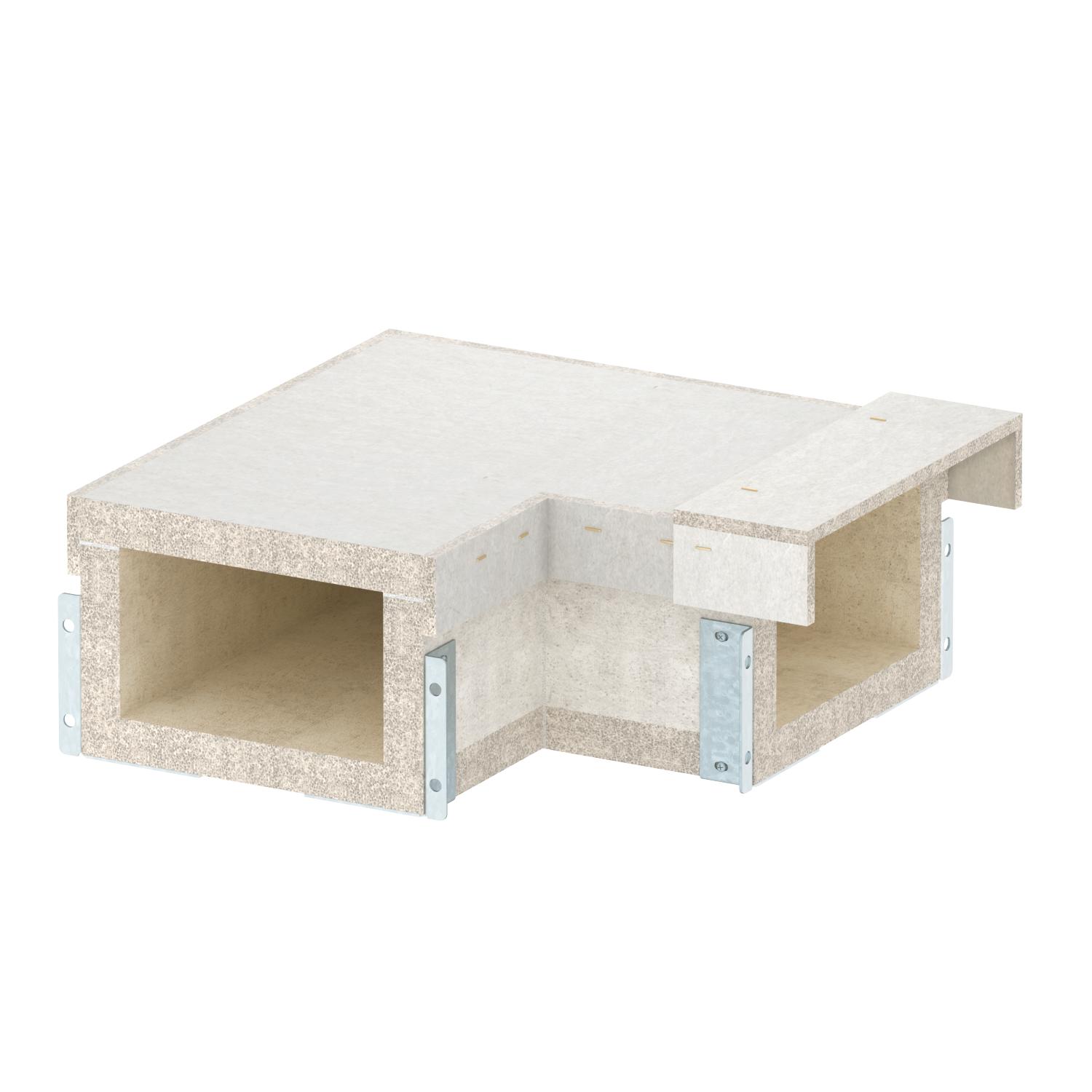

Product description90° bend for PYROLINE® Con S EI60 fire protection duct, type PLCS D061220, consisting of fibre glass light concrete which is resistant to water and frost for the creation of horizontal changes of direction of the duct. Mounted connectors ensure quick mounting in situ, whilst loosely placed covers ensure quick inspection and reassignment.
Including connection screws and sealing strips.
-
- Technical data
-
Technical data

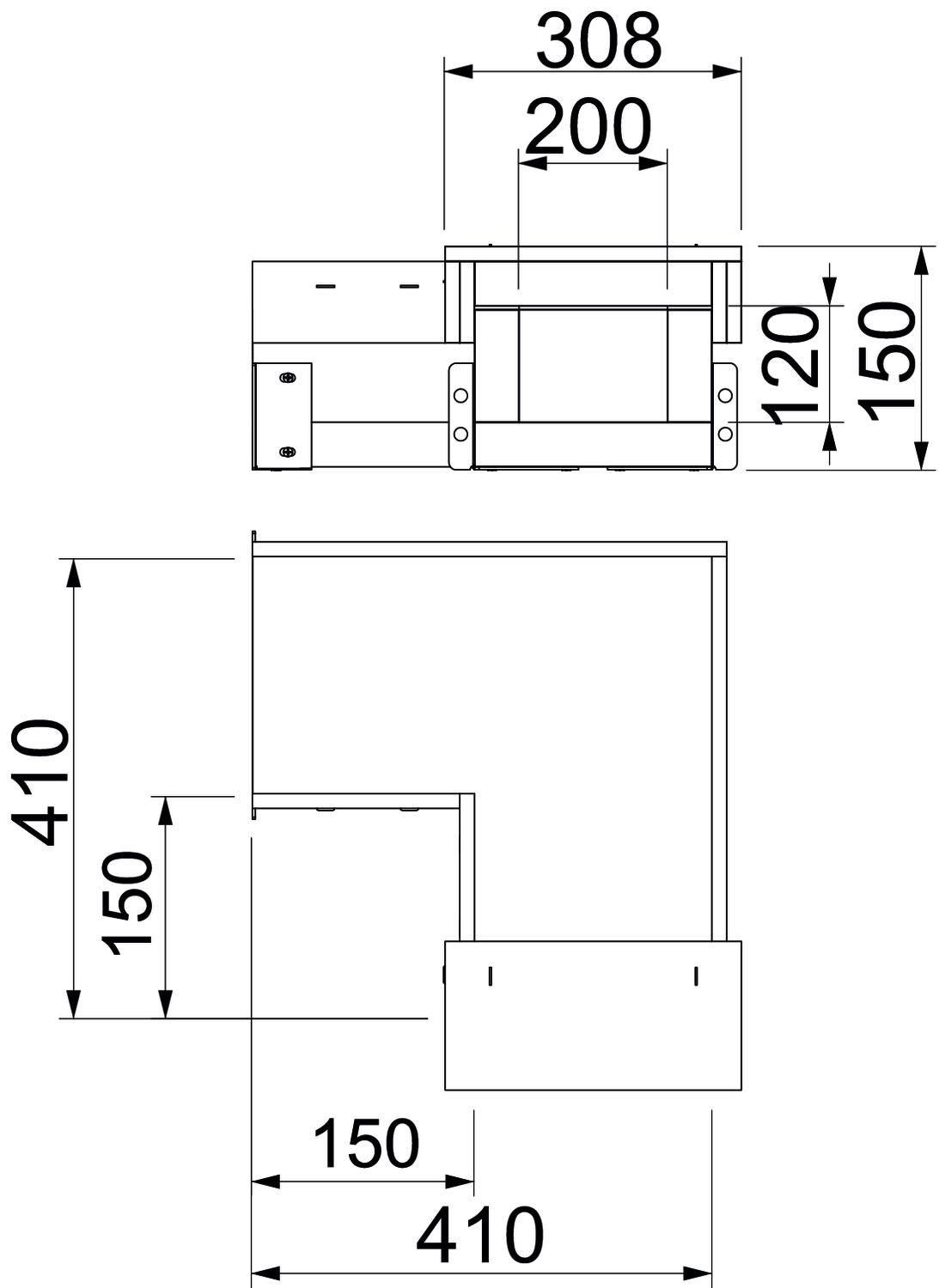

Angle of the bend 90 ° Classification EI − installation duct 60 Colour Grey Cover fastening Loose Dimension 200x120 Dimension B 308 mm Dimension b 200 mm Dimension H 190 mm Dimension h 120 mm Dimension L 410 mm Jacketing Without Material Fibreglass lightweight concrete Material of the insulation Glass-fibre lightweight concrete Number of flammable sides 4 With perforation no - All types
